Neousys POC-40 (Intel® Elkhart Lake x6211E, up to 32GB RAM, 2GbE)
POC-40
Intel® Elkhart Lake Atom® x6211E Extreme Ultra-compact Fanless Industrial PC
- Intel® Elkhart Lake Atom® x6211E dual-core processor
- Extremely compact 52 x 89 x 112 mm form factor
- Rugged -25°C to 70°C fanless wide-temperature operation

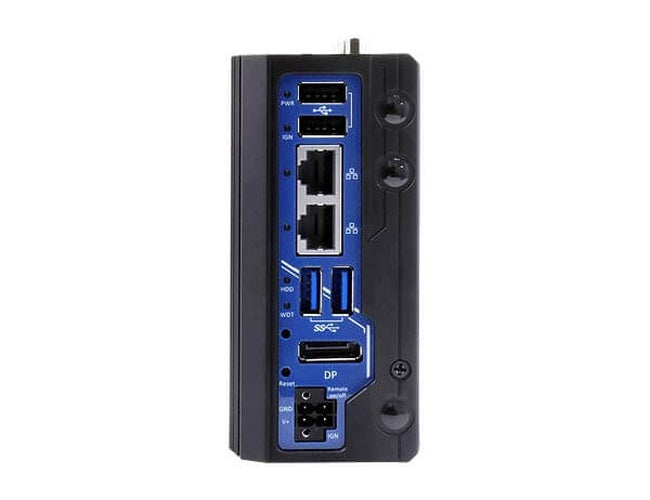

- Two GigE ports, two USB 3.1 Gen1 ports and two USB2.0 ports
- M.2 2280 M key SATA storage interface
- One M.2 B key socket supporting 5G/ 4G 3042/ 3052 modules

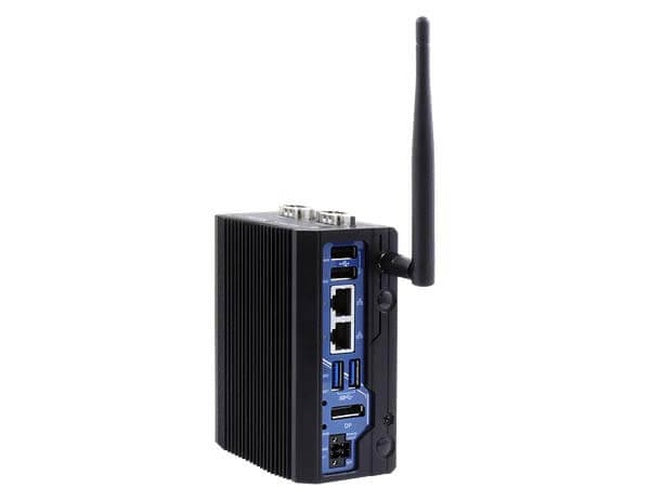

- One M.2 E key socket for WiFi 5/ WiFi 6 modules
- One COM port with RS-232/ 422/ 485 modes and three RS-232 COM ports

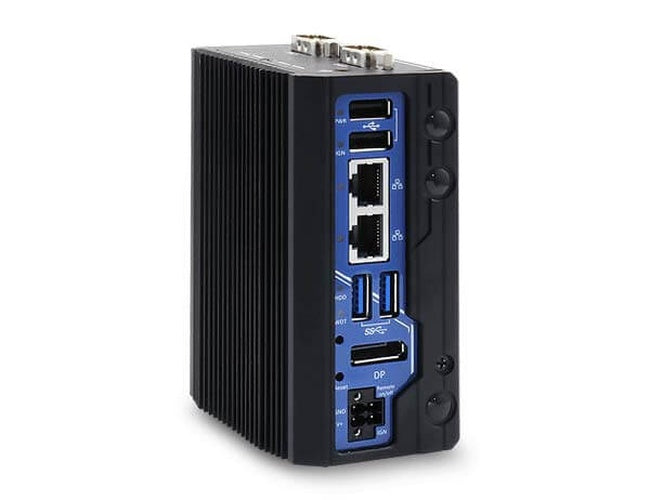

The POC-40 is an extremely compact fanless computer measuring just 52 x 89 x 112 mm. It features an Elkhart Lake Atom® processor and is designed for space-constrained applications such as factory data collection, rugged Edge computing and mobile gateways.
Using Intel's 10nm process technology, the new Elkhart Lake Atom® x6211E dual-core processor can deliver up to 1.8 times the performance of its previous generation. Compared with the POC-200, the POC-40 provides 1.9 times the computing performance at only half the size. It offers general-purpose I/O functions, including two Gigabit Ethernet ports, four USB 3.1 Gen1/ 2.0 ports, four COM ports and optional isolated digital I/Os for industrial communication and control. In addition, its dedicated M.2 B key and E key slots enable the POC-40 to fully harness the bandwidth of 5G and WiFi 6 wireless communications, providing wide-area coverage and real-time data transmission for industrial and mobile gateway applications.
With a footprint similar to that of a PICO-ITX motherboard, Neousys' POC-40 is ideal for projects requiring above-average performance in an extremely compact package. Suitable for both Edge computing and gateway applications, it is a lightweight, low-power fanless computer that supports wide-temperature operation in harsh environments.
| System Core | |
|---|---|
| Processor | Intel® Elkhart Lake Atom® x6211E dual-core 1.3GHz/ 3.0GHz 6W processor |
| Graphics | Integrated Intel® UHD Graphics |
| Memory | Up to 32 GB DDR4-3200 SDRAM (one SODIMM slot) |
| Panel I/O Interface | |
| Ethernet | 2x Gigabit Ethernet ports via Intel® I210 GbE controllers |
| USB | 2x USB 3.1 Gen1 (5 Gbps) ports 2x USB 2.0 ports |
| Video Port | 1x DisplayPort connector, supporting 4096 x 2160 resolution @ 60Hz |

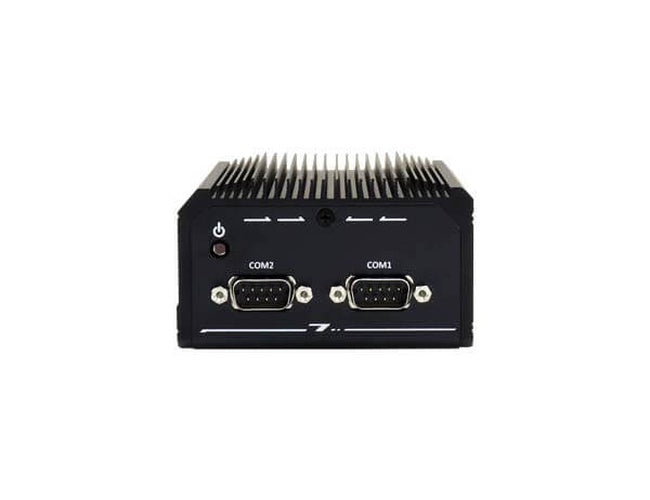

| Serial Port | 1x software-programmable RS-232/ 422/ 485 port (COM1) 3x 3-wire RS-232 ports (COM2/ COM3/ COM4) |
| Isolated Digital I/O | Optional 4-ch isolated digital input and 4-ch isolated digital output |
| Storage interface | |
| M.2 M key | 1x M.2 2280 M key SATA interface |
| Internal Expansion Bus | |
|---|---|
| M.2 B key | 1x M.2 3042/ 3052 B key socket with internal SIM socket for a 4G/ 5G module |
| M.2 E key | 1x M.2 2230 E key socket for a WiFi 5/ WiFi 6 module |
| Power supply | |
| DC Input | 1x 4-pin pluggable terminal block for 12-20V DC input |
| Remote Control & LED Output | 1x 4-pin pluggable terminal block for remote control |
| Mechanical | |
| Dimensions | 52 mm (W) x 89 mm (D) x 112 mm (H) |
| Weight | 0.6kg |

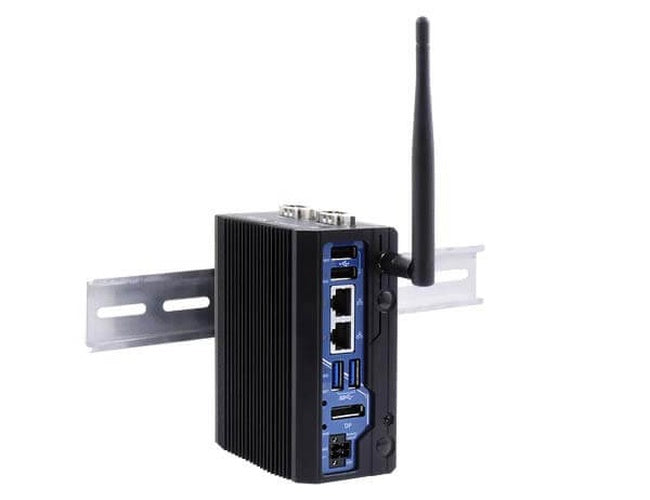

| Mounting | DIN-rail mount (standard) or wall mount (optional) |
| Environmental | |
| Operating Temperature | -25°C ~ 70°C |
| Storage Temperature | -40°C ~85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
Accessories
PA-60W-OW
60W AC/DC power adapter with 12V, 5A DC output and cord-end terminals for connection to the terminal block. Operating temperature: -30 to 60 °C
