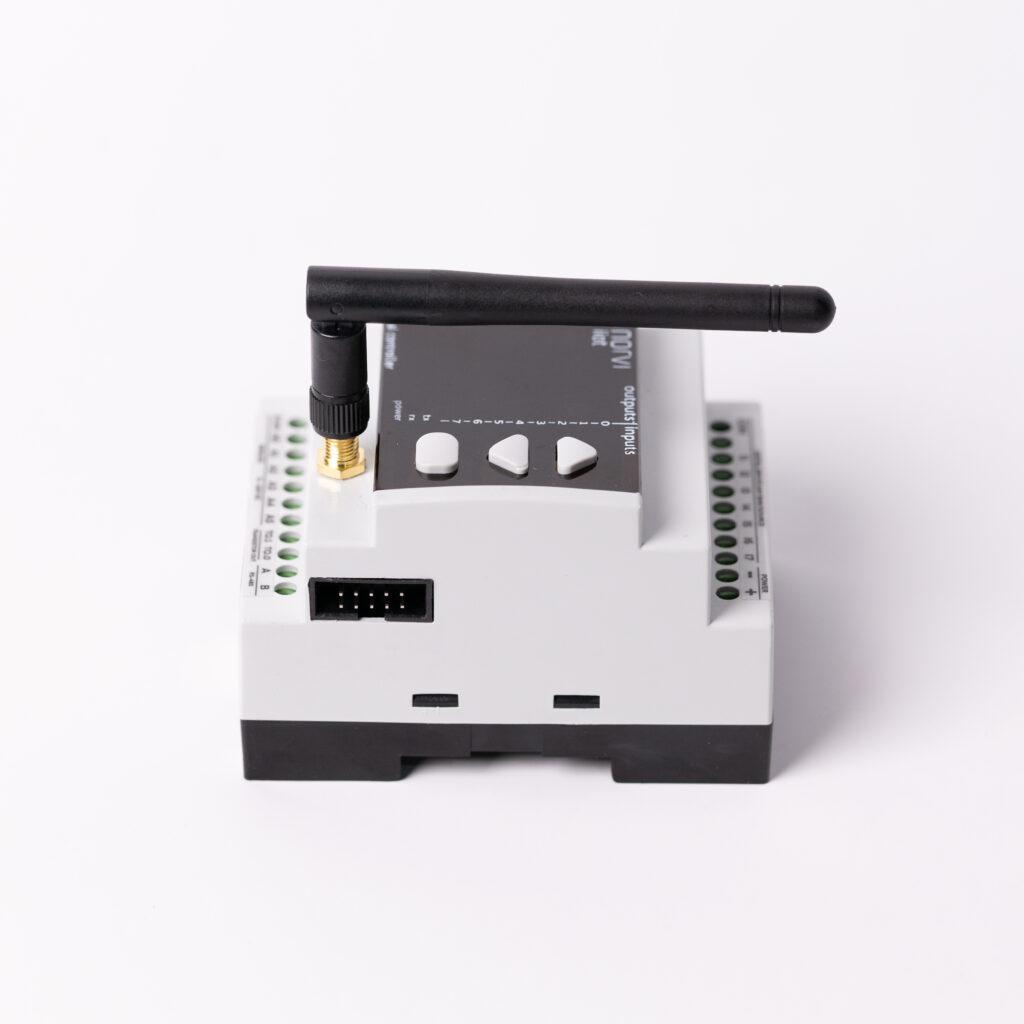

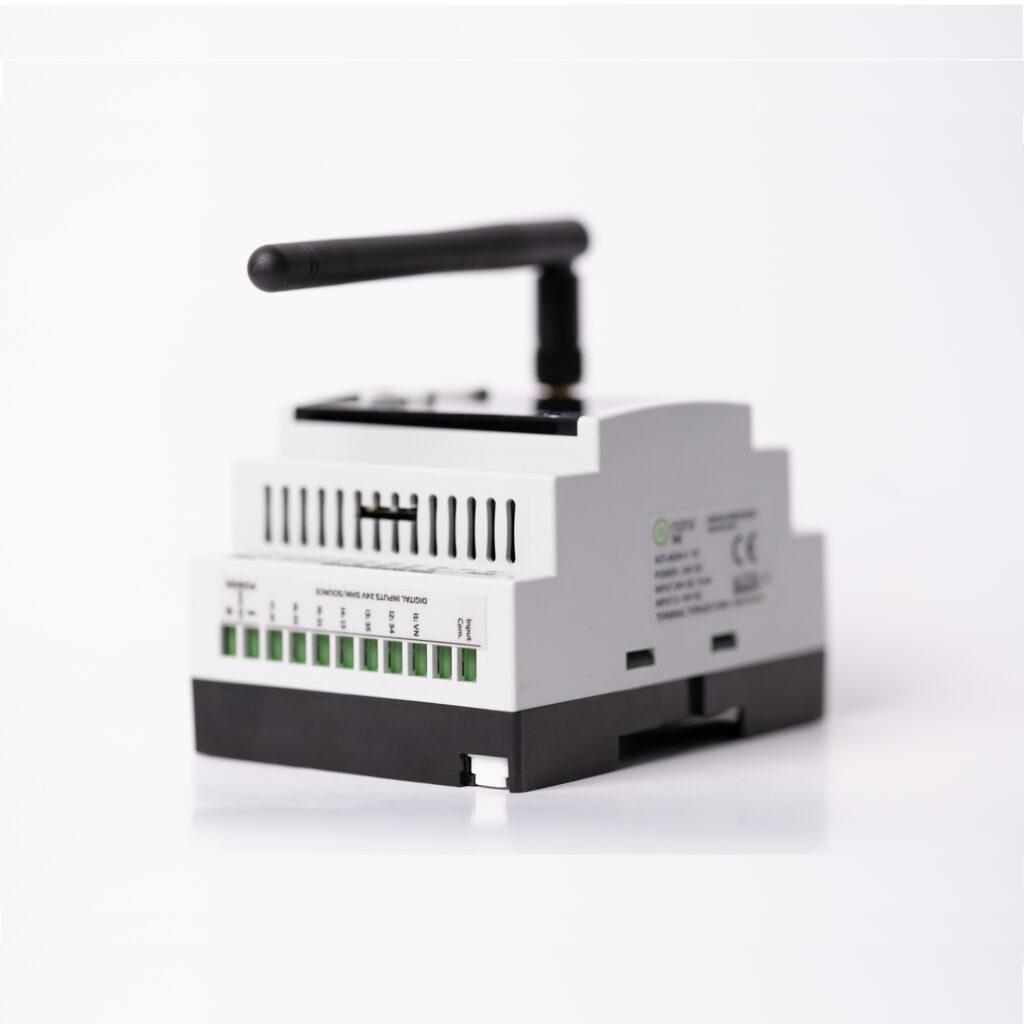

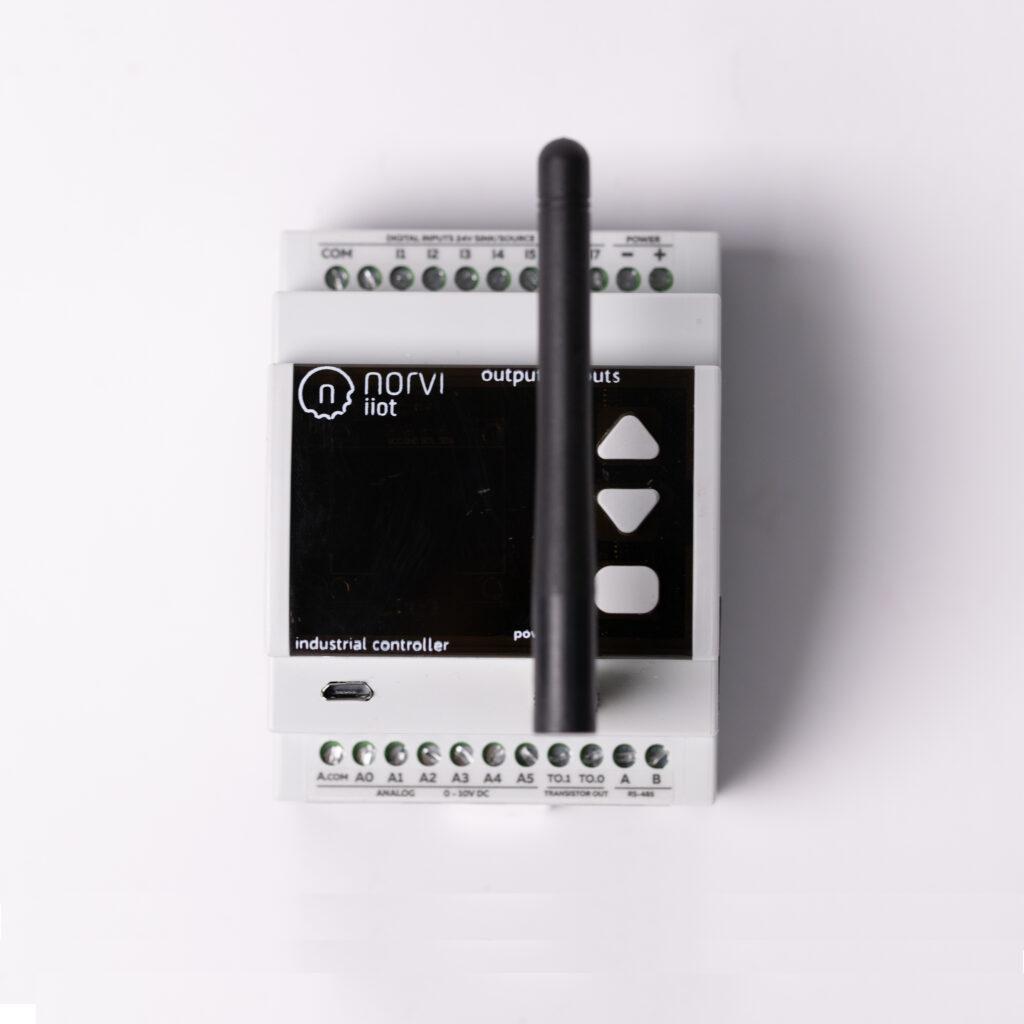

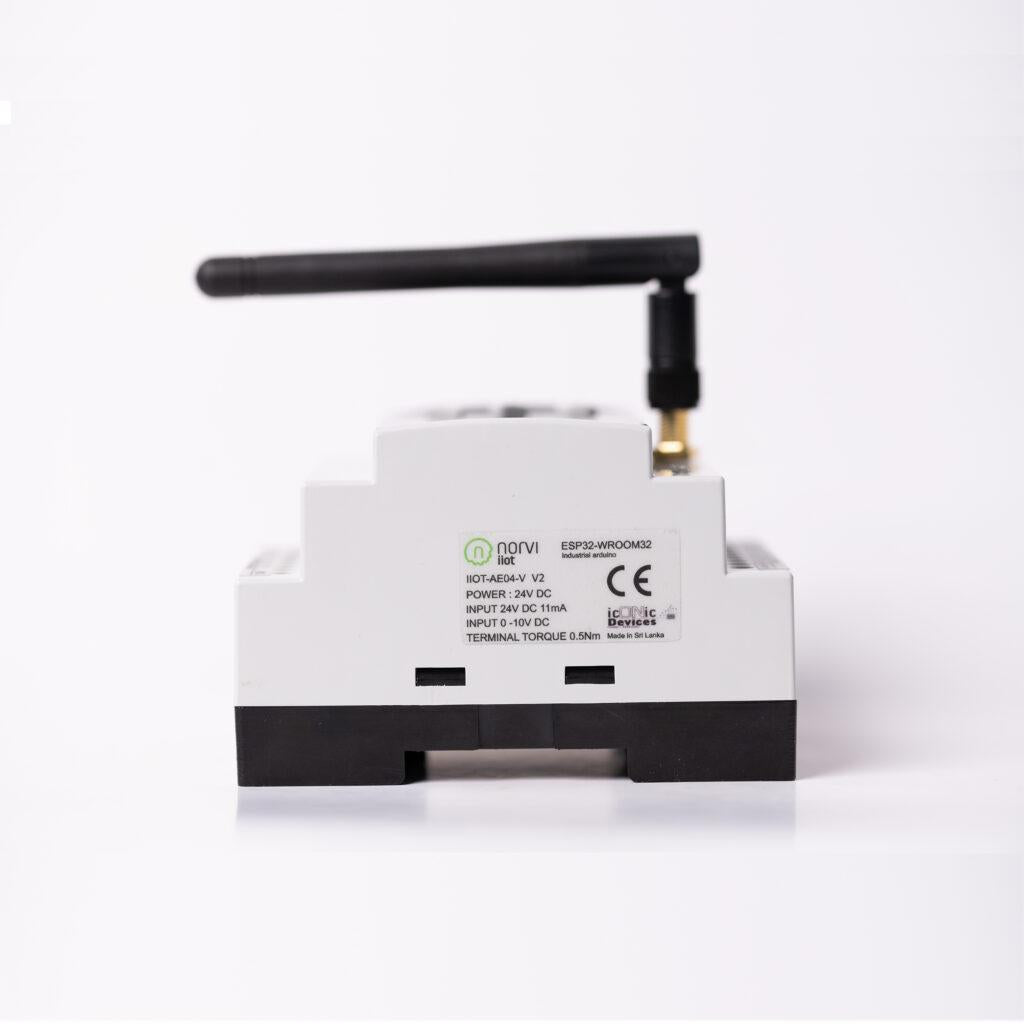

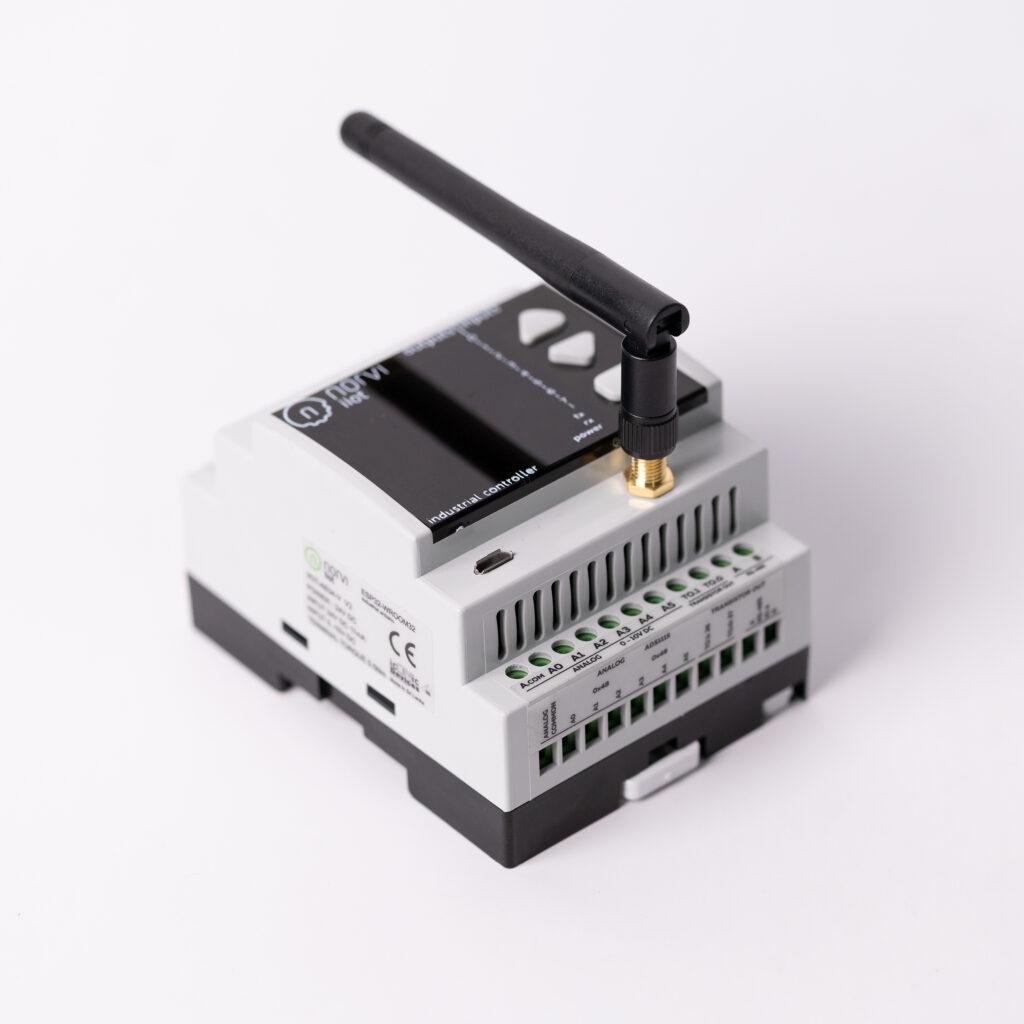

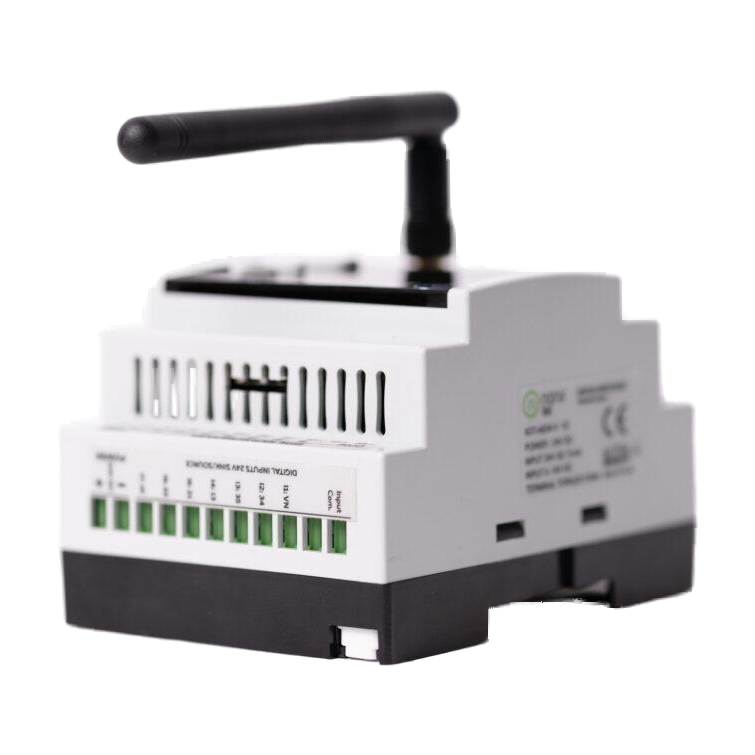

GSM-AE07-R (6* Relay Out 5A, 7* Digital In, GSM)
Price excludes VAT
167.82€
Sale price
Price excludes VAT
167.82€
Regular price
Total with VAT (23%): 206.42€
Shipping calculated at checkout.
GSM-AE07-R
Industrial controller with GSM + WiFi
- GSM
- 6x relay outputs
- 8x digital inputs
- OLED display
Industrial ESP32, ready for industrial environments: Arduino and ESP-IDF
- ESP32-WROOM32 module
- GSM / LTE connection
- Built-in 0.96 OLED display
- Built-in button on the front panel
- Digital inputs
- Analog inputs
- Relay outputs
- Ethernet connectivity
- DIN-rail mounting
Applications
- Wireless IoT gateways
- Data transmission over a cellular network
- WiFi-to-GSM bridge
- MQTT Gateway
USB-programmable controller with multiple connectivity channels. Ideal for an IoT gateway or data transmission applications.
The device is based on the ESP32-WROOM32 SoC with GSM connectivity.
It features I/O compatible with industrial voltage levels and additional protection. Models are available with different input and output configurations. Moreover, the NORVI GSM Industrial ESP32 can be expanded with expansion modules.
ESP32-WROOM32
- Dual Core 32bit 160-Mhz CPU
- 520 Kbytes SRAM / 4 Mb Flash
- WIFI 802.11 b/g/n Bluetooth v4.2
- Two timer groups, including 2 x 64-bit timers and 1 x main timer
- watchdog in each group
SIM800L
- Quad-band GSM/GPRS module
- DTMF, MMS, MUX Fuctions
- Embedded TCP/UDP protocols
- Frequency bands: 850/900/1800/1900MHz
- GPRS multi-slot class: 12/10
QUECTEL EC21
- Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE
- DTMF, MMS, MUX Fuctions
- Embedded TCP/UDP protocols
- Frequency bands: 850/900/1800/1900MHz
- GPRS multi-slot class: 12/10
| Main | |
| Product range | NORVI GSM |
| Product type | Programmable controller |
| Certifications | EN 61131-2:2007 EN 61010-1:2010+A1:2019 EN IEC 61010-2-201:2018 2014/30/EU — Electromagnetic Compatibility (EMC) Annex III, Part B, Module C |
| Rated supply voltage | 24V DC |
| Communication | Wi-Fi / Bluetooth LTE / EDGE - Quectel EC21 RS485 |
| OLED display protocol | I2C |
| Relay output rating | 5A, 250VAC/30VDC (resistive load) 3A, 250VAC/30VDC (general use) |
| Complementary | |
| Number of expansions | ----- |
| Supply voltage limits | 20.4....28.8V |
| Inrush current | <=50A |
| Power consumption in W | 32.6......40.4 with all outputs ON |
| Discrete logic input | Sink or source |
| Discrete input voltage | 24V |
| Discrete input voltage type | DC |
| Guaranteed voltage state 1 | >=15 V for input |
| Guaranteed voltage state 0 | <=5 V for input |
| Discrete input current | 5 mA for input |
| Input impedance | 4.7k Ohm for input |
| Memory | microSD card support |
| Battery type | ----- |
| Backup time | ----- |
| Local signalling | 1 green LED for PWR |
| Electrical connection | Removable screw terminal block for inputs and outputs (5.08 mm pitch) |
| Mounting support | Top-hat rail type TH35-15 conforming to IEC 60715 Top-hat rail type TH35-7.5 conforming to IEC 60715 Plate or panel with fixing kit |
| Height | 90.50 mm |
| Depth | 56.60 mm |
| Width | 60.60 mm |
| Product weight | 0.43 Kg |
| Environment | |
| Resistance to electrostatic discharge | 4kV contact discharge 8kV air discharge |
| Resistance to electromagnetic fields | 10 V/m (80 MHz ...... 1GHz) 3 V/m (1.4 MHz ...... 2 GHz) 1 V/m (2 MHz ...... 3 GHz) |
| Immunity to micro-interruptions | 10 ms |
| Relative humidity | 10....95% non-condensing during operation |
| IP degree of protection | IP20 |
| Operating Temperature | –10 … +85° C (14...185 °F) |
| Storage Temperature | –25 … +85° C (–13...185 ° F) |
| Operating altitude | 0...2000m |
| Storage altitude | 0...3000m |
| Shock resistance | 15 gn for 11 ms |
