Neousys Nuvo-1005B-104 fanless barebone with support for Intel Core™ i7 / i5 CPUs, delivering outstanding performance in compute-intensive arithmetic and calculation applications. Its fanless design ensures a reliable, highly durable system. This intelligent system consists of a single board and its corresponding heatsink. A rugged embedded system supporting a wide operating-temperature range and PCI-104 expansion.
The Nuvo-1000 series provides a range of industrial I/O interfaces in a compact chassis, including up to 5 Gigabit Ethernet ports and 2 eSATA ports, making it particularly suitable for security and surveillance applications. Dual-display VGA+DVI / HDMI output enables the easy presentation of high-resolution content for multimedia applications. The Nuvo-1000 also provides I/O functions such as isolated DIO (optional) and PCI-104 expansion for a wide range of applications.
The Nuvo-1000 offers long-term durability and exceptional vibration resistance, operates across a temperature range of -25°C to +70°C, and delivers high performance and excellent operation in all scenarios.
- Rugged fanless system designed to operate between -25°C and 70°C
- Up to 5 Intel® 82574L Gigabit Ethernet ports
- Dual Display: VGA + DVI
- 1 RS-232/422/485 port + 3 RS-232 ports
- 2 eSATA ports
- Supports Mini-PCIe expansion with USIM
- Onboard isolated DIO (optional)
- PCI-104 bus expansion (optional)
To complete the PC, the following components are required:
- Intel Core i5 / i7 Mobile CPU (PGA-988)
- SO-DDR-III memory

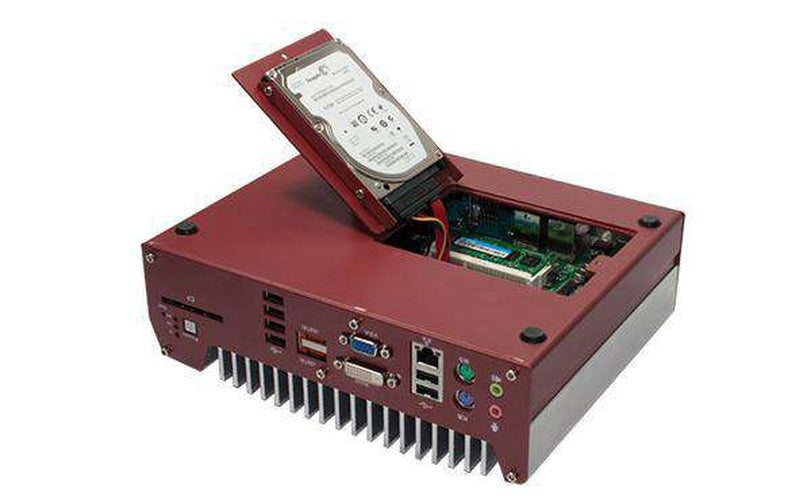

- 2.5" HDD/SSD or CompactFlash
Specifications:
| CPU | Intel Core i3, i5, i7 mobile processors Socket G (rPGA988A) [i7-620M,i5-540M,i5-520M,i5-450M,i5-430M] |
| Chipset | Intel® HM55 Platform Controller Hub |
| Graphics | Integrated Intel® HD Graphics Controller |
| Memory | 1x 204-pin SO-DIMM socket, up to 4GB DDR3 1066MHz SDRAM |

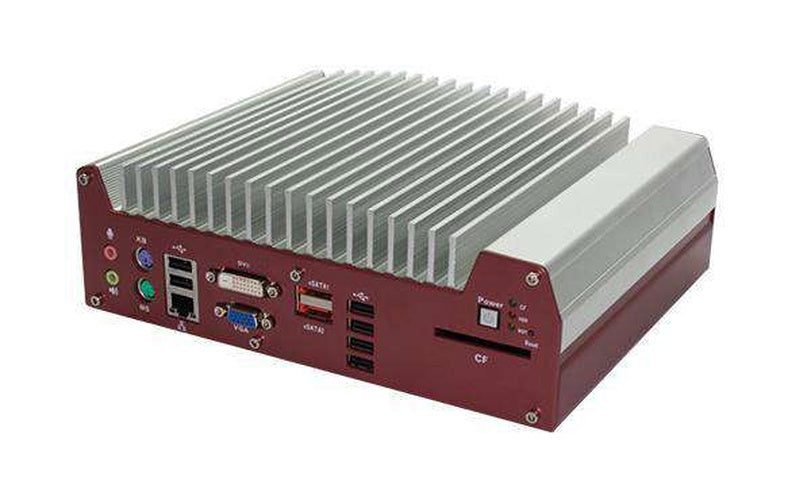

| Front-panel I/O Interface | |
| Ethernet | 1x Intel® 82574L Gigabit Ethernet port |
| Video | 1x DB-15 connector for analog RGB, supporting 2560x1600 resolution 1x DVI-D connector for DVI/HDMI output, supporting 1920x1080 resolution |
| Serial Ports | 1x software-programmable RS-232/422/485 (COM1) 3x RS-232 (COM2 ~ COM4) |
| USB | 6x USB 2.0 ports |
| KB/MS | 1x PS/2 keyboard and 1x PS/2 mouse |
| Audio | 1x Mic-in and 1x Speaker-out |
| Digital I/O | 8x isolated DI and 8x isolated DO (optional) |
| Storage Interfaces | |
| SATA HDD | 1x internal SATA port for 2.5” HDD/SSD installation |
| eSATA | 2x eSATA ports for storage expansion |
| CompactFlash | 1x Type I CF socket |
| Expansion | |
| Mini PCI-E | 1x internal mini PCI Express socket with SIM socket |
| PCI-104 | 1x internal PCI-104 socket |
| Power supply | |
| DC input | Built-in 8~28 VDC DC input |

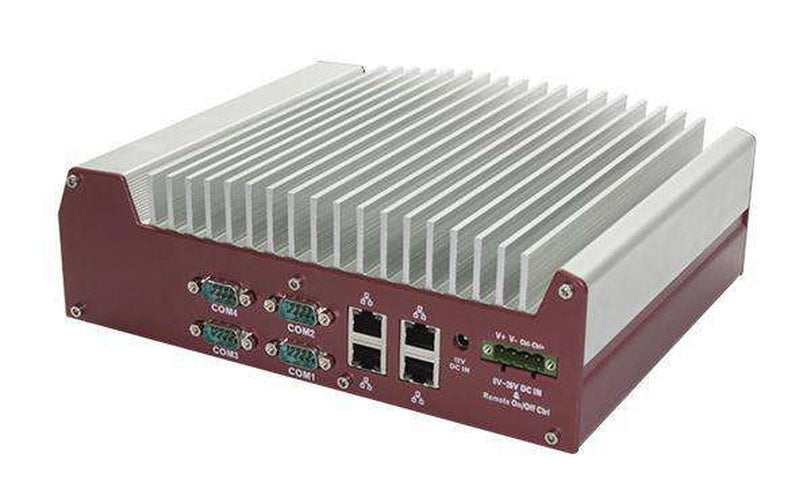

| Input connector | 1x 4-pin pluggable terminal block with remote on/off control 1x DC jack (ø2.5) for AC/DC adapter input |
| Structure | |
| Dimensions | 240 mm (W) x 195 mm (D) x 76 mm (H) |
| Weight | 2.7 Kg (including 2.5” HDD and DDR3 SODIMM) |
| Mounting | Wall mounting using a mounting bracket |
| Environment | |
| Operating temperature | Ambient environment with airflow (> 0.5 m/s or 1.8 km/hr), 100% CPU load* -25°C ~ 70°C (Nuvo-1005S-620M & Nuvo-1003S-520M) -25°C ~ 60°C (Nuvo-1003S-4500P) Ambient environment without airflow, 100% CPU load* -25°C ~ 60°C (Nuvo-1005S-620M & Nuvo-1003S-520M) -25°C ~ 50°C (Nuvo-1003S-4500P) A -40°C extended-temperature option is also available. Please contact Neousys for further information. |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 axes (with SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, half-sine, 11 ms duration (with SSD, according to IEC60068-2-27) |
| EMC | CE/FCC Class A, according to EN 55022 & EN 55024 |
