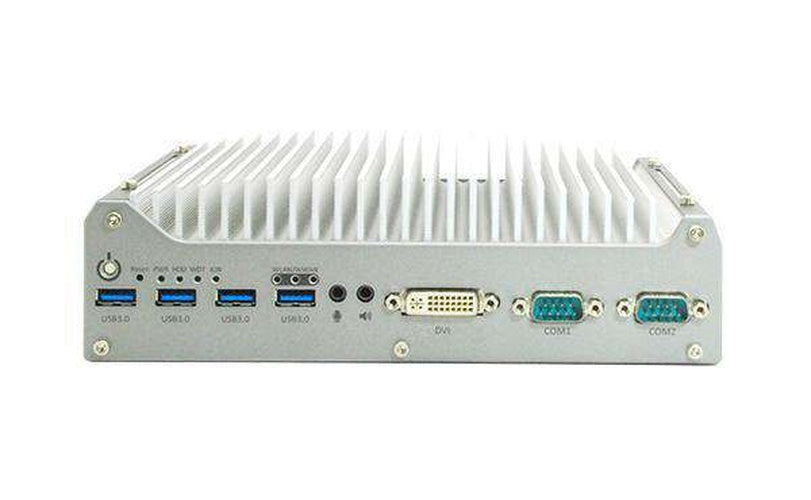

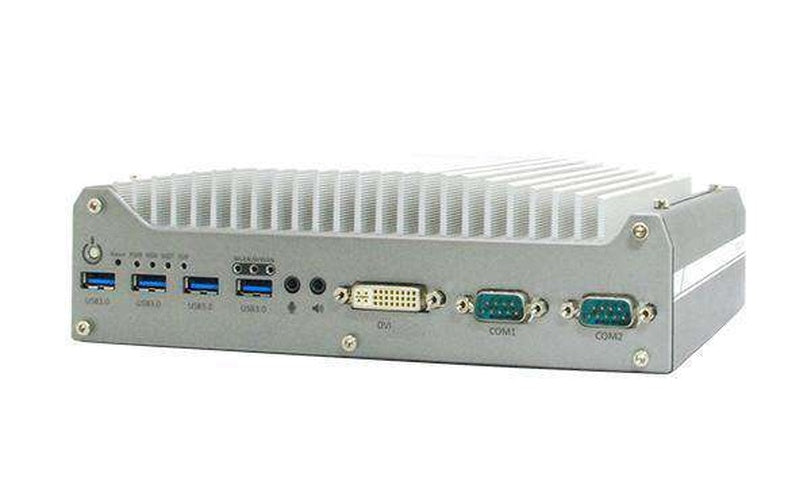

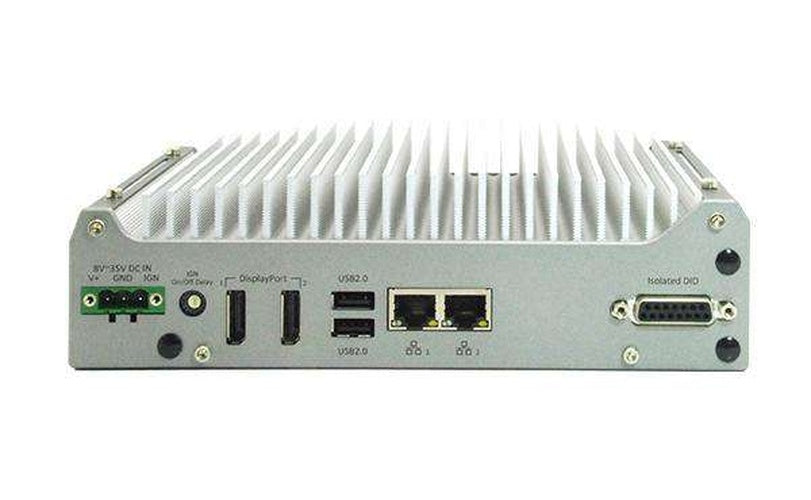

The Nuvo-3120 is one of the most compact Fanless Embedded PCs on the market, supporting 3rd-generation i5 / i7 CPUs.
The Neousys Nuvo-3120 features a highly compact 212 x 165 x 62 mm design and supports PGA-type i7 / i5 CPUs (45W/35W), covering a wide range of processors—a unique feature among models in this segment. Depending on the environment, the Nuvo-3120 can be configured for maximum performance, reduced performance or extended operation mode.
It provides extensive I/O functionality, including Gigabit LAN, USB 3.0, SATA, COM ports, mini-PCIe and isolated DIO. It also supports three independent video outputs for imaging and multimedia applications. Compact and powerful, the Nuvo-3120 meets all the requirements of an embedded system!
- Compact 212 x 165 x 62 mm design
- 3ª-generation Intel® i7 / i5 PGA-type CPUs
- CPU mode adjustable to the operating environment
- Dual Gigabit LAN and 4x USB 3.0 ports
- DVI/VGA + DisplayPort: independent triple display
- Built-in isolated digital I/O with change-of-state (COS) interrupt
- Wide-range 8~35V DC-IN
Specifications:
| System Core | |
|---|---|
| Processor | Intel® Core™ i7-3610QE (2.3/3.3 GHz, 6 MB cache) Intel® Core™ i5-3610ME (2.7/3.3 GHz, 3 MB cache) Intel® Celeron™ 1020E (2.2 GHz, 2 MB cache) |
| Chipset | Intel® HM76 PCH (Nuvo-3120) |
| Graphics | Integrated Intel® HD Graphics 4000 Controller |
| Memory | 1x 204-pin SO-DIMM socket, Up to 8 GB DDR3 1333/1600 MHz SDRAM |
| I/O Interface | |
|---|---|
| Ethernet | 1x Gigabit Ethernet port via Intel® 82579LM 1x Gigabit Ethernet port via Intel® i210 |
| Video Port | 1x DVI-I connector for VGA/DVI output, supporting 2048x1536 (VGA) or 1920x1080 (DVI) resolution 2x DisplayPort, supporting 2560x1600 resolution |
| Serial Port | 2x software-programmable RS-232/422/485 (COM1 & COM2) |
| USB | 4x USB 3.0 ports and 4x USB 2.0 ports |
| Isolated DIO | 4x isolated DI with COS interrupt and 4x isolated DO |
| Audio | 1x mic-in and speaker-out |
| Storage Interface | |
|---|---|
| SATA HDD | 1x internal SATA port for 2.5” HDD/SSD |
| mSATA | 1x full-size mSATA (SATA/USB/W_DISABLE#) with USIM socket |
| Expansion Bus | |
|---|---|
| Mini PCI-E | 1x full-size mini PCI Express socket with USIM socket 1x half-size mini PCI Express socket |
| Power Supply & Ignition Control | |
|---|---|
| DC Input | 8~35V DC input via 3-pin pluggable terminal block |
| Ignition Control | Ignition control with user-selectable on/off delay |
| Mechanical | |
|---|---|
| Dimensions | 210 mm (W) x 165 mm (D) x 62 mm (H) |
| Weight | 2.7 Kg (including one 2.5” HDD and DDR3 SODIMM) |
| Mounting | Wall mounting (Standard) or DIN-Rail mounting (Optional) |
| Operating Temperature | |
|---|---|
| with i7-3610QE 100% CPU loading |
-25°C ~ 50°C** (maximum performance) -25°C ~ 60°C** (reduced performance) -25°C ~ 70°C** (extended performance) |
| with i5-3610ME 100% CPU loading* |
-25°C ~ 60°C** (maximum performance) -25°C ~ 70°C** (reduced performance) -25°C ~ 70°C** (extended performance) |
| with Celeron 1020E 100% CPU loading* |
-25°C ~ 70°C** |
| Environmental | |
|---|---|
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10%~90%, non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 axes (with SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, half-sine, 11 ms duration (with SSD, according to IEC60068-2-27) |
| Certification | CE/FCC Class A, according to EN 55022 & EN 55024 |
* The 100% CPU loading is applied using Passmark® BurnInTest™ v7.0. For detailed testing criteria, please contact Neousys Technology.
**For sub-zero operating temperatures, a wide-temperature HDD or Solid State Disk (SSD) is required.
Ordering information
Nuvo-3120-I7QC
Intel® Core™ i7-3610QE fanless controller with a compact form factor and configurable CPU power mode
Nuvo-3120-I5DC
Intel® Core™ i5-3610ME fanless controller with a compact form factor and configurable CPU power mode
Nuvo-3120-C1020
Intel® Celeron™ 1020E fanless controller with a compact form factor and configurable CPU power mode
-
Ignition power control option
-
DIN-Rail mounting kit option
-
120W AC/DC power adapter
