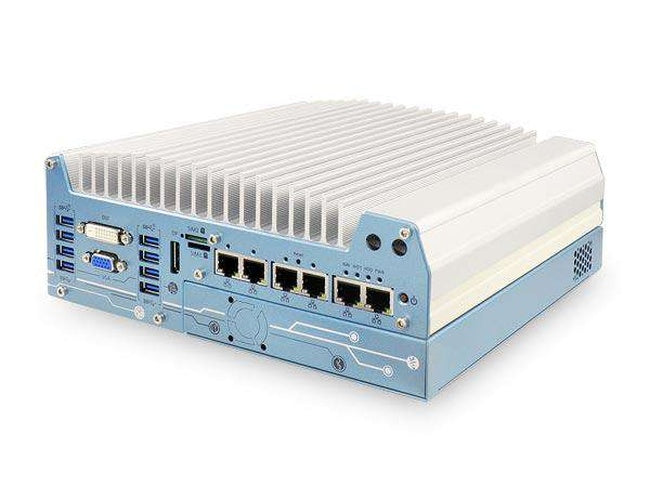

Nuvo-7000E/P/DE
Rugged fanless computer with 9th/8th Generation Intel® Core™ i7/i5/i3, 6x GbE, patented Cassette and MezIO™ interface.
- Intel® 9th/ 8th-Gen Core™ i 35W/ 65W LGA1151 CPU
- Patented Cassette for accommodating PCI/PCIe add-on cards
- MezIO™ interface for easy function expansion
- Rugged fanless operation over a wide temperature range from -25°C to 70°C
- Up to 6x GigE ports, supporting 9.5 KB jumbo frames
- M.2 2280 M key socket (Gen3 x4), supporting NVMe SSD or Intel® Optane™ memory
- 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
- VGA/ DVI/ DP triple independent display output, supporting 4K2K resolution
Introducing Neousys Technology's 2018 flagship rugged embedded fanless computers: the new Nuvo-7000 series, powered by 9th/ 8th-Gen Intel® Core™ i processors with an architecture of up to 8/ 6 cores, offering significant performance improvements over previous 6th and 7th-Gen platforms.
The Nuvo-7000 series incorporates Neousys' proven technologies for superior ruggedness and versatility, including an effective fanless design, a patented expansion Cassette and the proprietary MezIO™ interface. It also incorporates cutting-edge computer I/O, such as USB 3.1 Gen2 with throughput of up to 10 Gbps and an M.2 2280 M key socket for an NVMe SSD or Intel® Optane™ memory, delivering ultimate system performance. Its numerous on-board I/O ports (GbE, USB and COM) feature sophisticated protection circuits designed to withstand ESD and power surges. This makes the Nuvo-7000 series by far the most rugged embedded computer we have ever created.

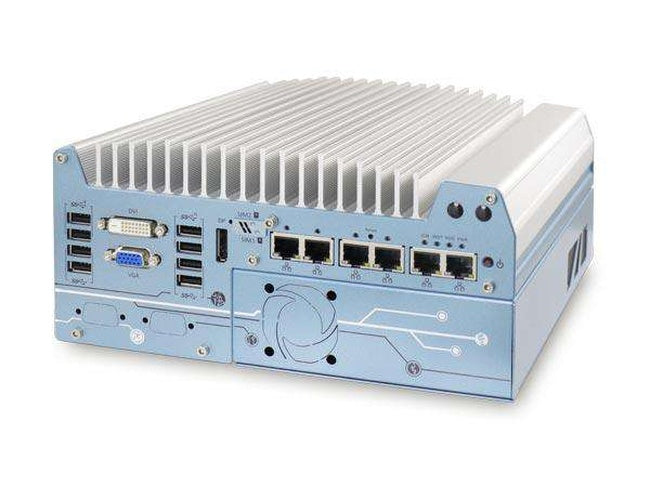

Flexible and versatile for a variety of applications, Nuvo-7000 variants are available with different Cassette expansion options. With the Neousys Nuvo-7000 series, you get a truly rugged platform that can accommodate a single PCIe card (Nuvo-7000E), dual PCIe cards (Nuvo-7000DE) or a single PCI card (Nuvo-7000P), according to your application requirements.
■ NEOUSYS MARKETING TEAM
Ordering Information
Nuvo-7002E
9th/8th-Gen Intel® Core™ fanless embedded computer with 2x GbE, single-slot PCI Express Cassette and MezIO™
Nuvo-7002DE
9th/8th-Gen Intel® Core™ fanless embedded computer with 2x GbE, dual-slot PCI Express Cassette and MezIO™
Nuvo-7002P
9th/8th-Gen Intel® Core™ fanless embedded computer with 2x GbE, single-slot PCI Cassette and MezIO™
Nuvo-7006E
9th/8th-Gen Intel® Core™ fanless embedded computer with 6x GbE, single-slot PCI Express Cassette and MezIO™
Nuvo-7006DE
9th/8th-Gen Intel® Core™ fanless embedded computer with 6x GbE, dual-slot PCI Express Cassette and MezIO™
Nuvo-7006P
9th/8th-Gen Intel® Core™ fanless embedded computer with 6x GbE, single-slot PCI Cassette and MezIO™
Supported MezIO® Modules
| System Core | |
|---|---|
| Processor | Supports Intel® 9th/ 8th-Gen CPU (LGA1151 socket, 65W/ 35W TDP) - Intel® Core™ i7-8700/ i7-8700T/ i7-9700E/ i7-9700TE - Intel® Core™ i5-8500/ i5-8500T/ i5-9500E/ i5-9500TE - Intel® Core™ i3-8100/ i3-8100T/ i3-9100E/ i3-9100TE - Intel® Pentium® G5400/ G5400T - Intel® Celeron® G4900/ G4900T |
| Chipset | Intel® Q370 Platform Controller Hub |
| Graphics | Integrated Intel® UHD Graphics 630 |
| Memory | Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots) |
| AMT | Supports AMT 12.0 |
| TPM | Supports TPM 2.0 |
| I/O interface | |
|---|---|
| Ethernet Port | 2x Gigabit Ethernet ports via I219 and I210 (Nuvo-7002E/ P/ DE) 6x Gigabit Ethernet ports via I219 and 5x I210 (Nuvo-7006E/ P/ DE) |
| POE+ | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget |
| USB | 4x USB 3.1 Gen2 ports (10 Gbps) 4x USB 3.1 Gen1 (5 Gbps) ports |
| Video Port | 1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Serial port | 2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x 3.5 mm jack for microphone input and speaker output |
| Internal Expansion Bus | |
|---|---|
| PCI/PCI Express | 1x PCIe x16 slot @ Gen3, 8-lanes PCIe signals in Cassette (Nuvo-7000E) 1x PCI slot in Cassette (Nuvo-7000P) 2x PCIe x16 slots @ Gen3, 8-lanes PCIe signals in Cassette (Nuvo-7000DE) |
| Mini PCI-E | 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) |
| M.2 | 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with a selected M.2 LTE module |
| Expandable I/O | 1x MezIO™ expansion port for Neousys MezIO™ modules |
| Storage interface | |
|---|---|
| SATA HDD | 2x internal SATA ports for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3/ x4) for NVMe SSD or Intel® Optane™ memory installation |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| Power supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input |
| Remote Control & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
|---|---|
| Dimensions | 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-7000E/ P series) 240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-7000DE series) |
| Weight | 3.58 kg (Nuvo-7000E/P series) 3.7 kg (Nuvo-7000DE series) |
| Mounting | Wall mounting (standard) or DIN-Rail mounting (optional) |
| Environmental | |
|---|---|
| Operating temperature | with 35W CPU -25°C ~ 70°C ** with 65W CPU -25°C ~ 70°C */** (configured as 35W TDP) -25°C ~ 50°C */** (configured as 65W TDP) |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
| Safety | UL62368-1, IEC62368-1 |
* For the i7-8700 operating in 65W mode, the maximum operating temperature must be limited to 50°C, and thermal throttling may occur under a sustained full load. Users can configure CPU power in the BIOS to achieve a higher operating temperature.
**For sub-zero operating temperatures, a wide-temperature-range HDD or Solid State Disk (SSD) is required.
