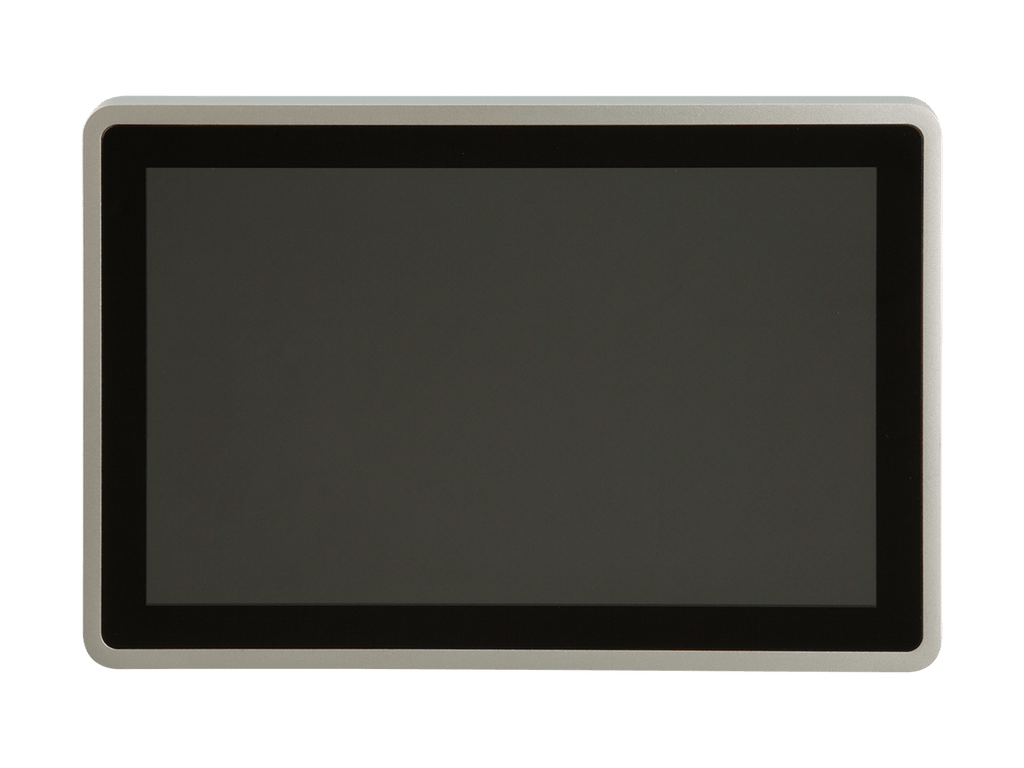

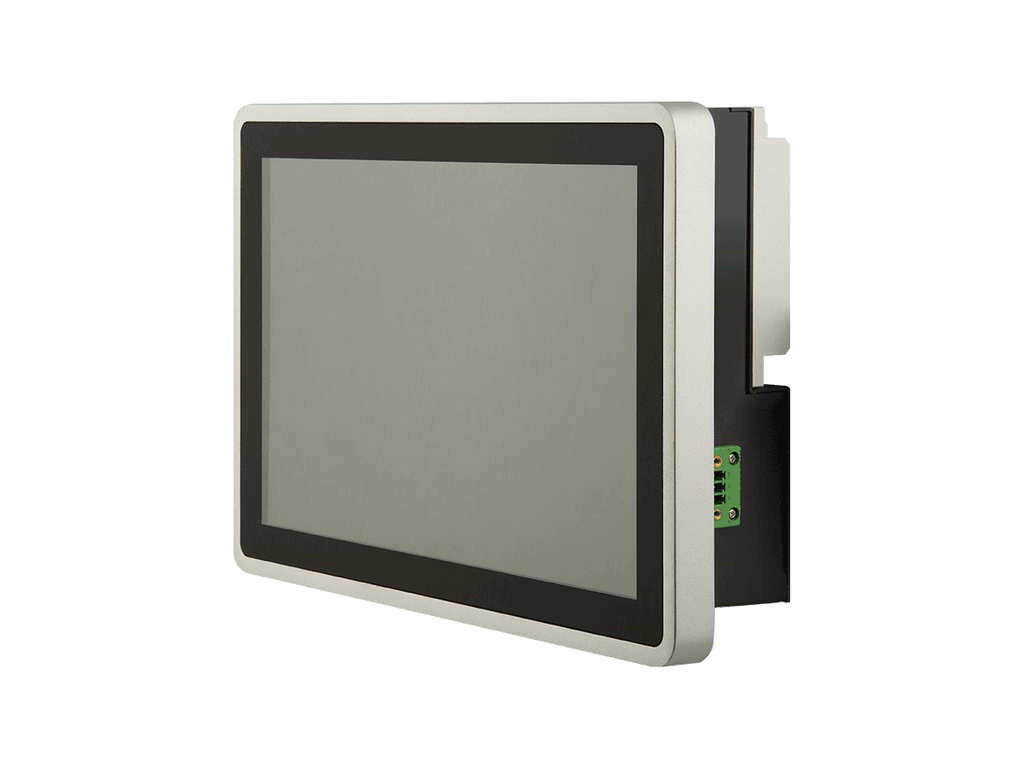

Panel PC 10.1' iTC-1101C (Elkhart Lake J6413, 2 GLAN, 9-36V)
Price excludes VAT
898.00€
Sale price
Price excludes VAT
898.00€
Regular price
Total with VAT (23%): 1,104.54€
Shipping calculated at checkout.
iTC-1101C
Panel PC 10.1" Industrial com processador Intel® Elkhart Lake
- Processador Intel® Celeron® J6413 (Cache de 1,5M, até 3,00 GHz)
- Ecrã LCD WXGA de 10,1" com resolução de 1280 x 800
- Design fanless com painel frontal em alumínio
- Proteção frontal IP65 à prova de água
- Suporte para LAN 2.5GbE e USB 3.2 Gen1 (5Gbps)
- 2 x COM/ 2 x LAN/ 4 x USB3.2 (5Gbps) / 8-bit DI/O e saídas de vídeo duplas: DisplayPort e DVI-D
- Expansão de fácil acesso para armazenamento e módulo WiFi
- Alimentação 9~36V com proteção
System
| CPU | Intel® Celeron® J6413 Quad-Core™ Processor 1.80GHz |
|---|---|
| Memory | 1 x 260 pin DDR4 SO-DIMM socket, supporting 3200MHz SDRAM up to 32GB (4GB DDR4 SO-DIMM pre-installed) |
| LAN Chipset | 1 x Intel® 225LM controller 1 x Intel® i210 / i211AT controller |
| Watchdog Timer | 1~255 levels reset |
LCD Display
| Size / Type | 10.1" TFT LCD Panel |
|---|---|
| Max. Resolution | 1280 x 800 WXGA |
| Max. Colors | 16.7M |
| Luminance | 350 cd/m² |
| Touch Screen | Projected Capacitive Touch |
| View Angle (U/D/R/L) | 85° / 85° / 85° / 85° |

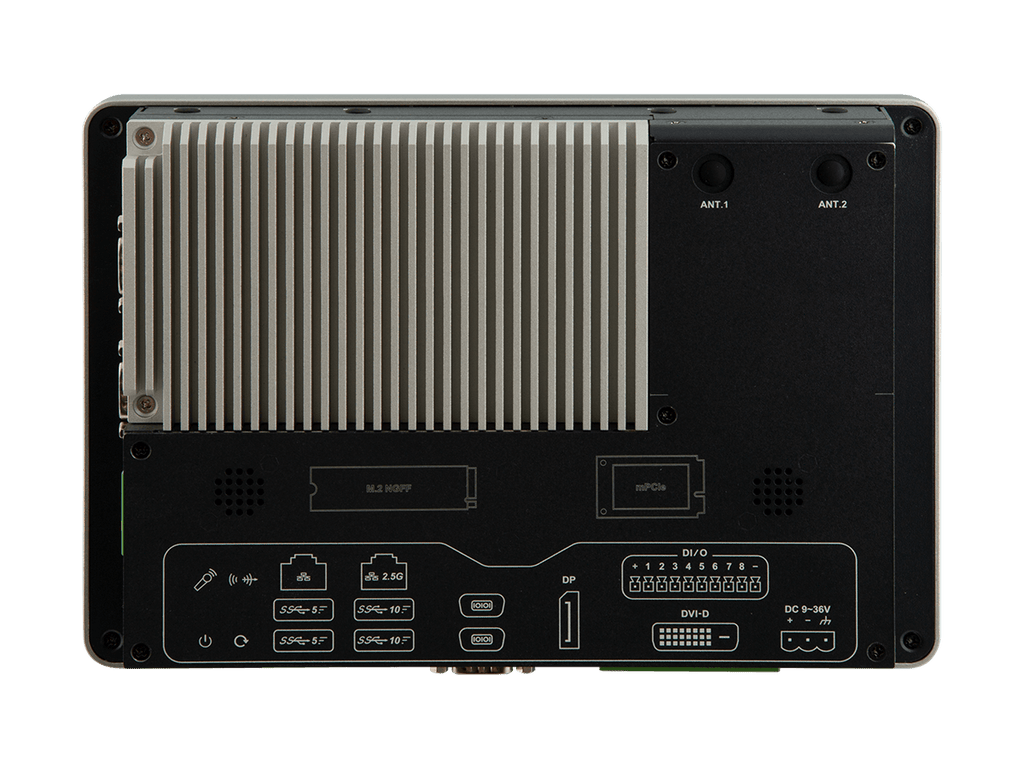

External I/O
| Serial Ports | Default: 2 x DB-9 connectors for RS232 / 422 / 485 (Optional: 2 x DB-9 connectors for RS232 via cables) |
|---|---|
| USB Ports | 4 x Type-A USB 3.2 Gen 1 (5Gbps) |
| LAN | 1 x RJ-45 port for GbE LAN 1 x RJ-45 port for 2.5 GbE LAN |
| Video Ports | 1 x DVI-D connector, supporting Full HD resolution 1 x DisplayPort 1.4 connector, supporting 4K2K resolution |
| Digital I/O | 8 bit Digital I/O |
Storage
| 1st Device | 1 x M.2 M-key 2242 / 2280 (SATA III only) |
|---|
Audio
| Type | 1 x Mic-in / 1 x Line out |
|---|---|
| Speaker | 2 x 1.5W speakers (optional) |
Button & Indicator
| Button | Power on & Reset |
|---|---|
| LED | Power-on status / HDD status / RTC battery status |
Power System
| Power Input | DC 9 ~ 36V |
|---|---|
| Power Consumption | Typical 19W (w/o I/O cards) |
| Remote Control | 1 x 3-pin terminal block for remote control and PWR LED output |
Mechanical
| Mounting Type | Panel mount (clamps & brackets are provided) VESA-75 / 100 mount (optional) |
|---|---|
| Chassis | Aluminum front bezel and steel-metal chassis |
| Weight (Net) | 2.35 kg |
| Dimensions (W x H x D) | 255 x 175 x 62.8 mm |
Environmental
| Operating Temp. | -10 ~ 55ºC (14 ~ 131ºF) |
|---|---|
| Storage Temp. | -20 ~ 70ºC (-4 ~ 158ºF) |
| Operating Humidity | 10 ~ 95% @ 55°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 1Grms X,Y,Z axis (with SSD) |
| Shock | Operating 10G, 11ms X,Y,Z axis (with SSD) |
Qualification
| Certification | CE, FCC Class A |
|---|
Expansion
| Expansion Bus (for Wireless connection) | 1 x Mini PCIe slot (PCIe x1+ USB2.0, Full size) w/ 1 x SIM card slot |
|---|
OS Support
| System | Windows®10 (64bit) |
|---|
Acessórios
PAC-60W6A-FSP-ES
12V/5A 60W AC/DC power adapter kit
VMB-1101
iTC-1101C VESA-mount bracket kit, w/ 75 x 75 mm & 100 x 100 mm VESA supports
SCK-722C
Assembly kit for SiP-41B/42B
(Note: SCK-722C can only be installed with VMB-1101 Mounting Bracket)
