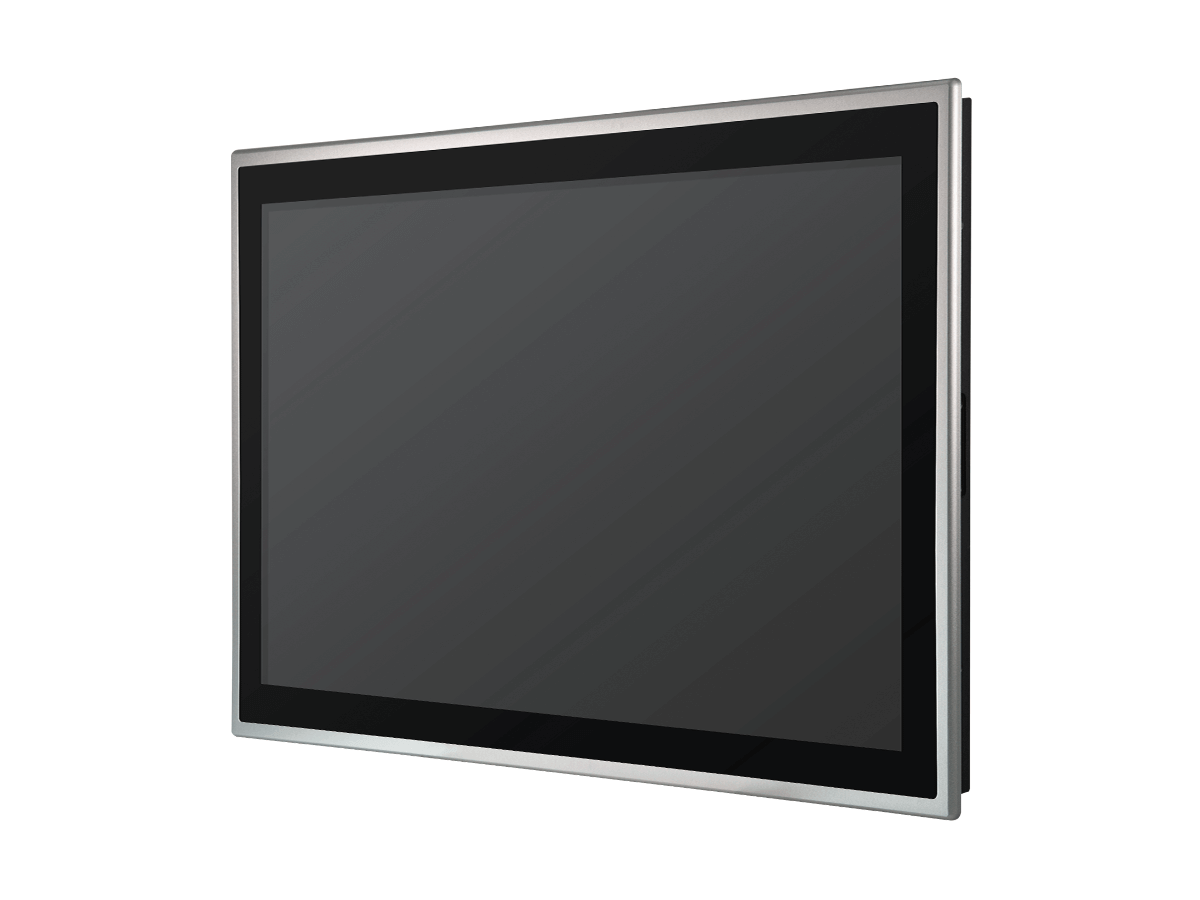

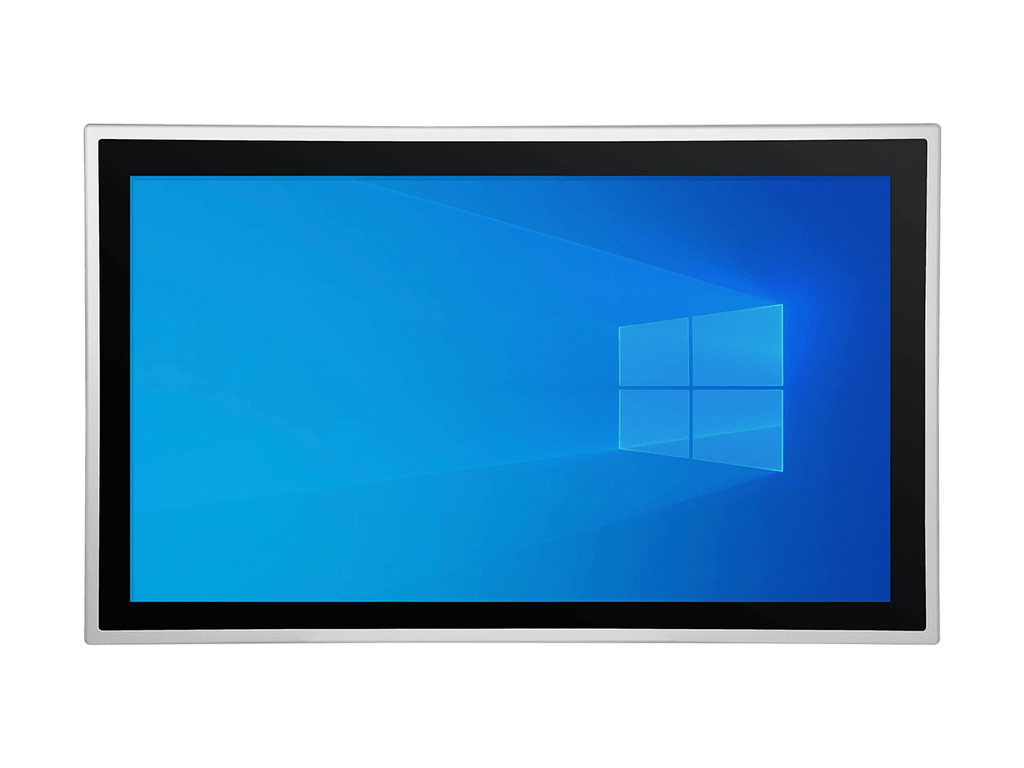

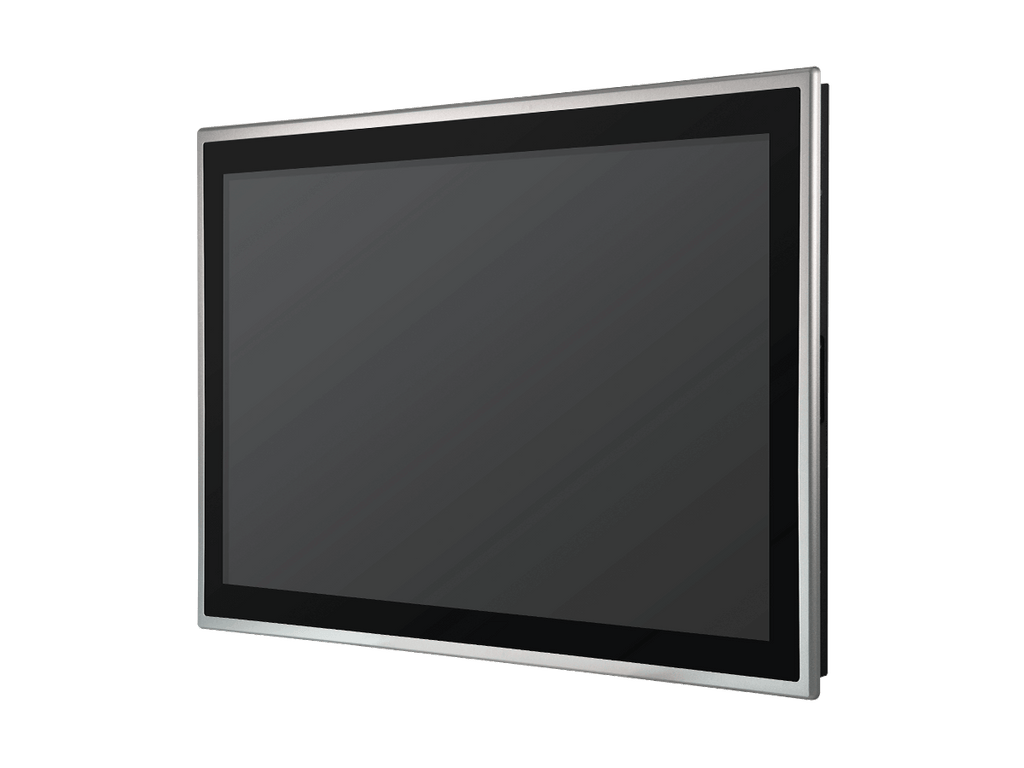

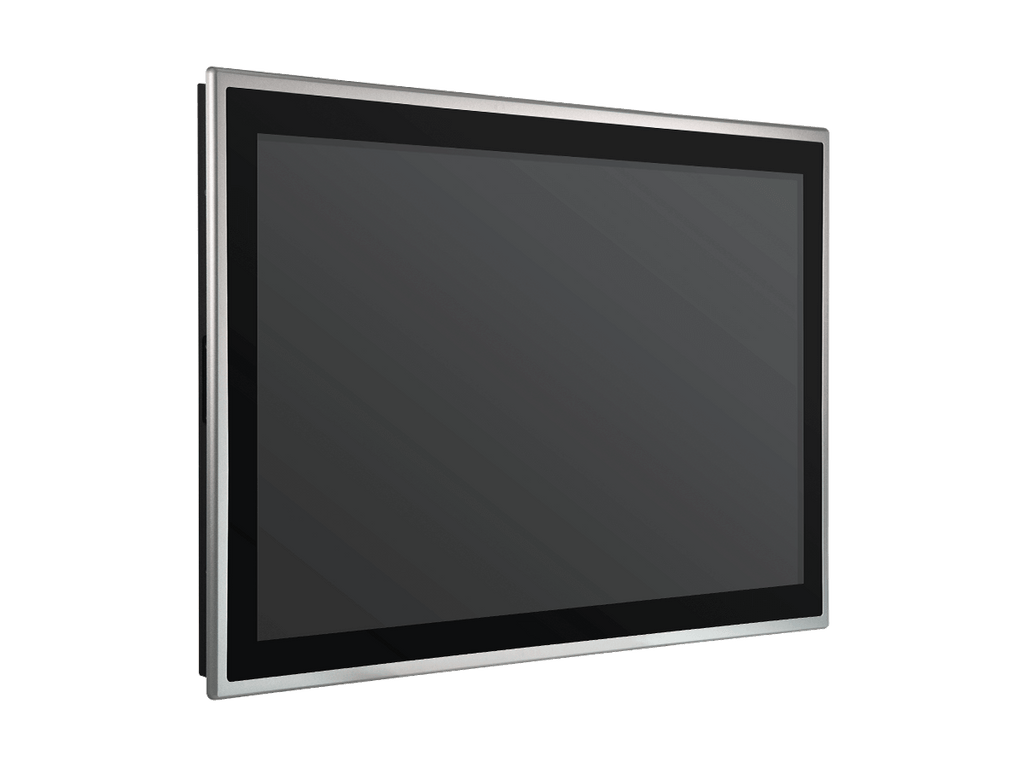

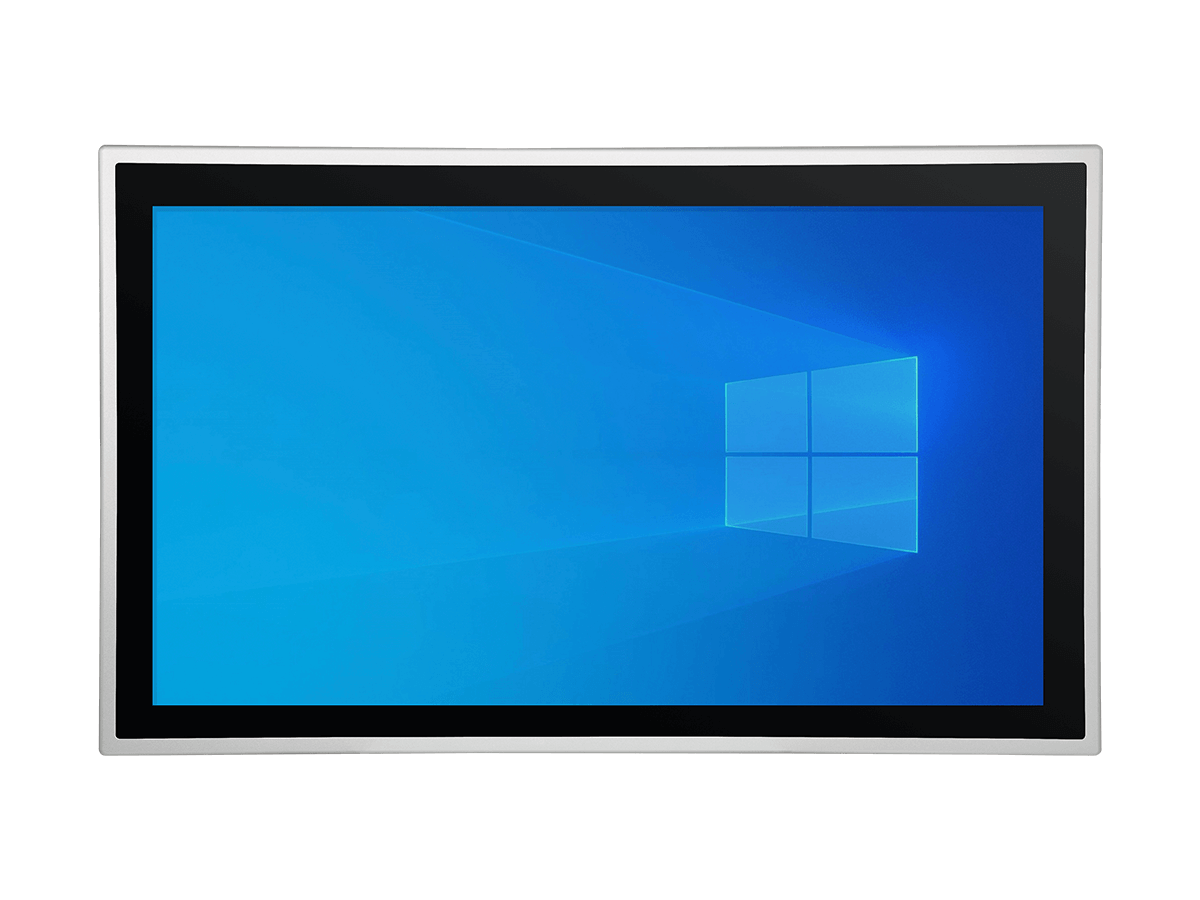

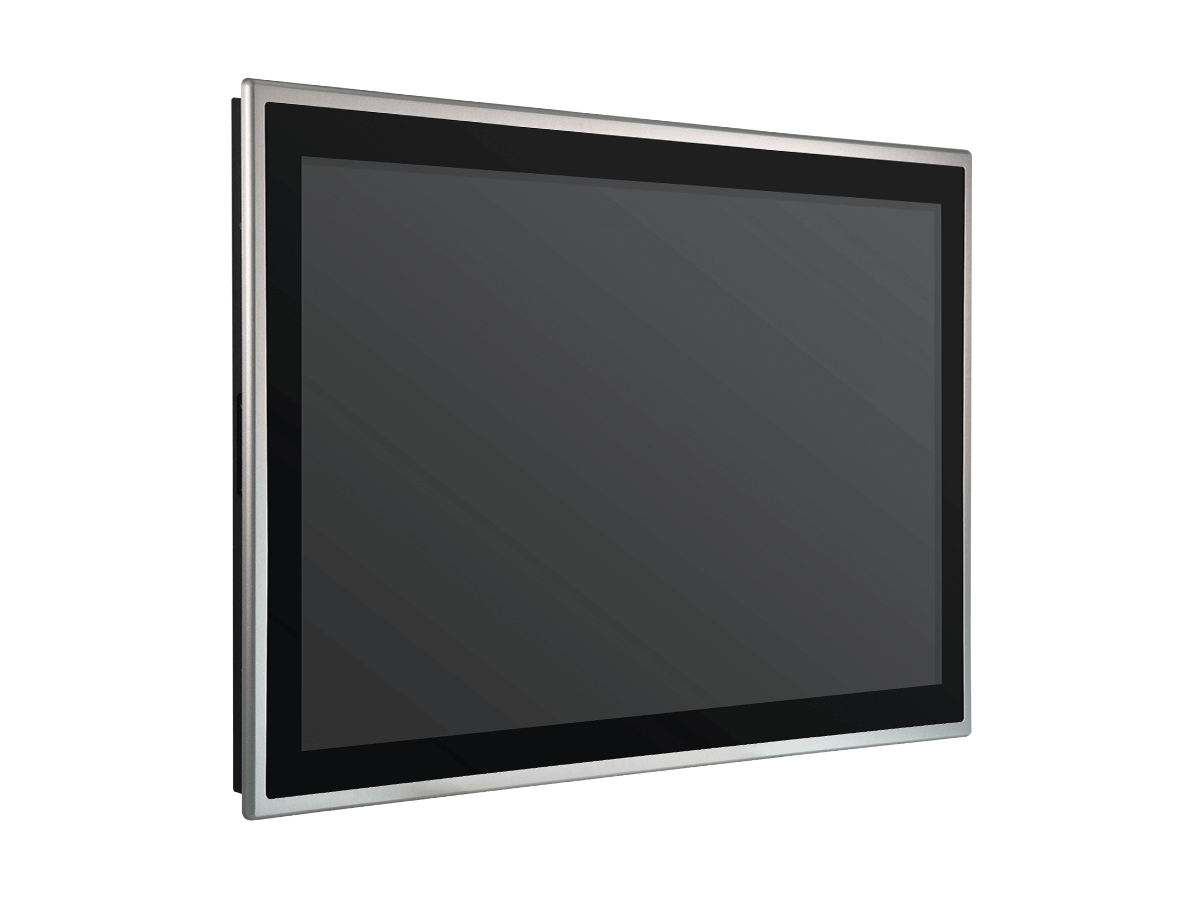

Panel PC 15.6' ASLAN-W1015C (Tiger Lake i5-1145G7E, 2 GLAN, 9-36V)
Price excludes VAT
1,598.00€
Sale price
Price excludes VAT
1,598.00€
Regular price
Total with VAT (23%): 1,965.54€
Shipping calculated at checkout.
ASLAN -W1015C
15.6" Panel PC with 11th Generation Intel® Core™ i5-1145G7E Processor
- 15.6" Display with LED Backlight
- PCAP touchscreen display
- IP65 front protection
- Scratch-resistant surface: 7H hardness
- COM ports (RS-232/422/485), with automatic flow control on RS-485
- Mini PCIe expansion
- 4 SMA antenna holes for wireless communication (optional)
- Wide operating temperature range from 0ºC to 55ºC
- 9 to 36 VDC power input
- Fanless
System
| CPU | Intel soldered onboard® 11th Gen Core™ i5-1145G7E Processor 1.50 GHz |
|---|---|
| Memory | 2 x 260-pin DDR4 SO-DIMM sockets, supporting 3200MHz SDRAM up to 64GB (1 x 4GB DDR4 SO-DIMM pre-installed) |
| LAN Chipset | 1 x Intel® i225 / i226LM PCIe controller with iAMT 2 x Intel® i210 / i211AT PCIe controller |
| Watchdog Timer | 1~255-level reset |
| TPM | TPM 2.0 support |
LCD Display
| Size / Type | 15.6" TFT LCD Panel |
|---|---|
| Max. Resolution | 1366 x 768, WXGA |
| Max. Colors | 16.7M |
| Luminance | 400 cd/m² |
| Touch Screen | Projected capacitive touch panel |
| Viewing Angle (U/D/R/L) | 80°/80°/85°/85° |
External I/O
| Serial Ports | 2 x DB-9 connectors for RS-232 1 x DB-9 connector for RS-232/422/485 |
|---|---|
| USB Ports | 4 x USB Type-A 3.2 Gen 2 ports |
| LAN | 1 x RJ-45 2.5 GbE LAN port 2 x RJ-45 GbE ports |
| Video Ports | 1 x HDMI 2.0b, up to 3840x2160 @60Hz 1 x DisplayPort 1.4, up to 3840x2160 @60Hz |
| Digital I/O | 8 x DI & 8 x DO with 1.5KV isolation |
| Others | 4 x antenna holes |
| Button | 1 x power button 1 x reset button |
Storage
| type | 1 x 2.5” drive bay (SATA III) 1 x M.2 M-Key 2242/2280 slot (PCIe Gen III x4 + SATA III) |
|---|
Audio
| Type | 1 x Mic-in / 1 x Line out 2 x 1.5W speakers (optional) |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
Power System
| Power Input | 9~36 VDC (3-pin terminal block: V+, V-, GND) |
|---|---|
| Remote Control | 1 x 3-pin terminal block |
| Power consumption | Max. 120W (without I/O cards) |
Mechanical
| Mounting Type | Panel mounting & VESA-100 mounting |
|---|---|
| Material | Aluminum front bezel and SGCC chassis |
| Weight (Net) | 5.5 kg |
| Dimensions (W x H x D) | 404 x 255 x 65.8 mm |
Environmental
| Operating Temp. | -20ºC ~ 55ºC |
|---|---|
| Storage Temp. | -30ºC ~ 70°C |
| Operating Humidity | 10 ~ 95% RH @ 55°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 1Grms random (with SSD) |
| Shock | Operating: 10G, 11ms; non-operating: 30G, 11ms (with SSD) |
Expansion
| Expansion Bus | 1 x mPCIE (PCIe x1 + USB2.0, Full Size) with 1 x nano SIM card slot 1 x M.2 B-Key 2242/3042/3052 (PCIe x2 + USB3.0) with 2 x nano SIM card slots for 5G module 1 x M.2 E-Key 2230 (CNVi + USB 2.0) slot for WiFi /BT Supports CNVi modules only |
|---|
OS Support
| System | Windows 10 / Windows 11 / Linux: Ubuntu 20.04 |
|---|
Ordering Information
| ASLAN -W1015C | 15.6” Soldered Onboard Intel® 11th Gen Core™ i5-1145G7E Processor 1.50 GHz processor, Wide-screen industrial panel PC with 4GB memory |
|---|
Accessories
PAC-120W6B-FSP-ES
19V/6.32A 120W AC/DC Power Adapter Kit
SCK-722C
Assembly Kit for SiP-41B/42B
