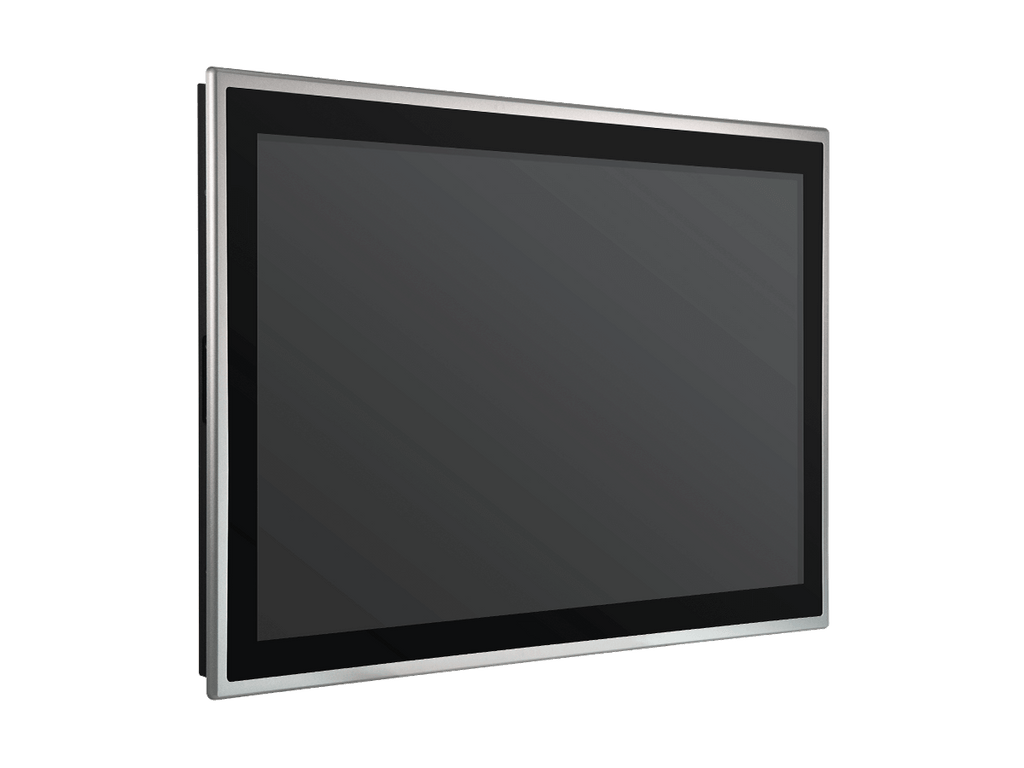

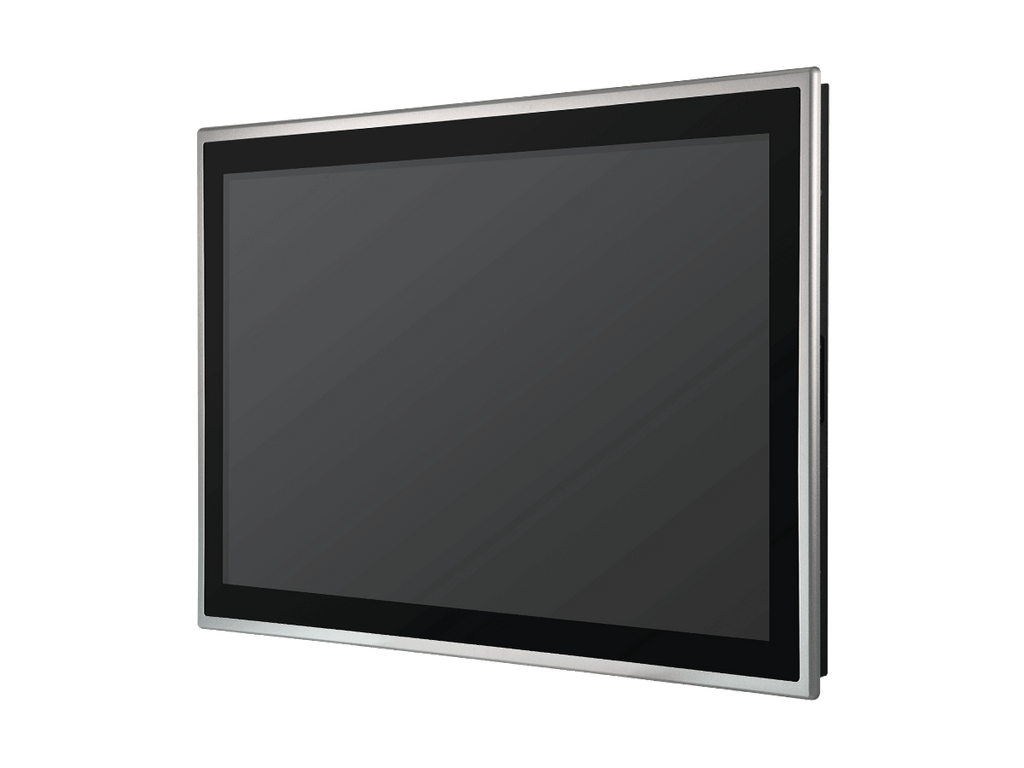

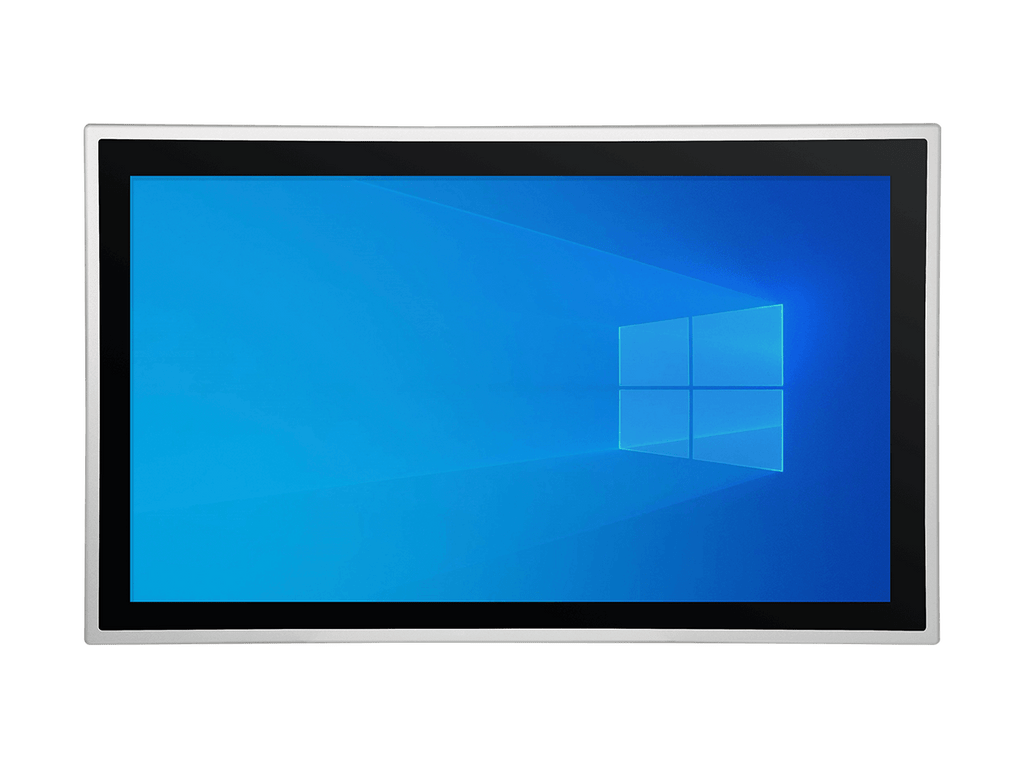

Panel PC 18.5' ASLAN-W1019C (Tiger Lake i5-1145G7E, 2 GLAN, 9-36V)
Price excludes VAT
1,648.00€
Sale price
Price excludes VAT
1,648.00€
Regular price
Total with VAT (23%): 2,027.04€
Shipping calculated at checkout.
ASLAN -W1019C
Panel PC 18.5" com processador Intel® Core™ i5-1145G7E de 11ª Geração
- Display de 18,5" com Retroiluminação LED
- Display com tela sensível ao toque PCAP
- Proteção frontal IP65
- Superfície anti-riscos: dureza 7H
- Portas COM (RS-232/422/485), RS-485 com controle de fluxo automático
- Expansão Mini PCIe
- 4 orifícios para antenas SMA para comunicação sem fios (opcional)
- Ampla faixa de temperatura de operação de 0ºC a 55ºC
- Entrada de energia de 9 a 36 VDC
- Fanless
System
| CPU | Soldered onboard Intel® 11th Gen Core™ i5-1145G7E Processor 1.50 GHz |
|---|---|
| Memory | 2 x 260-pin DDR4 SO-DIMM sockets, supporting 3200MHz SDRAM up to 64GB (1 x 4GB DDR4 SO-DIMM pre-installed) |
| LAN Chipset | 1 x Intel® i225 / i226LM PCIe controller w/ iAMT 2 x Intel® i210 / i211AT PCIe controller |
| Watchdog Timer | 1~255 levels reset |
| TPM | Support TPM 2.0 |
LCD Display
| Size / Type | 18.5" TFT LCD panel |
|---|---|
| Max. Resolution | 1366 x 768, WXGA |
| Max. Colors | 16.7M |
| Luminance | 450 cd/m² |
| Touch Screen | Projected capacitive touch panel |
| View Angle (U/D/R/L) | 80°/80°/85°/85° |
External I/O
| Serial Ports | 2 x DB-9 connectors for RS-232 1 x DB-9 connectors for RS-232/422/485 |
|---|---|
| USB Ports | 4 x USB Type-A 3.2 Gen 2 ports |
| LAN | 1 x RJ-45 2.5 GbE LAN ports 2 x RJ-45 GbE ports |
| Video Ports | 1 x HDMI 2.0b, up to 3840x2160 @60Hz 1 x DisplayPort 1.4, up to 3840x2160 @60Hz |
| Digital I/O | 8 x DI & 8 x DO w/ 1.5KV isolation |
| Others | 4 x Antenna holes |
| Button | 1 x power button 1 x reset button |
Storage
| type | 1 x 2.5” drive bay (SATA III) 1 x M.2 M-Key 2242/2280 slot (PCIe Gen III x4 + SATA III) |
|---|
Audio
| Type | 1 x Mic-in / 1 x Line out 2 x 1.5W speakers (optional) |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
Power System
| Power Input | 9~36 VDC (3-pin terminal block: V+, V-, GND) |
|---|---|
| Remote Control | 1 x 3-pin terminal block |
| Power Consumption | Max. 120W (w/o I/O cards) |
Mechanical
| Mounting Type | Panel mount & VESA-100 mounting |
|---|---|
| Material | Aluminum front bezel and SGCC chassis |
| Weight (Net) | 6.7 kg |
| Dimension (W x H x D) | 470 x 295 x 65.8 mm |
Environmental
| Operating Temp. | -20ºC ~ 55ºC |
|---|---|
| Storage Temp. | -30ºC ~ 70°C |
| Operating Humidity | 10 ~ 95% RH @ 55°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 1Grms random (w/ SSD) |
| Shock | Operating 10G, 11ms non-operating 30G, 11ms (w/ SSD) |
Expansion
| Expansion Bus | 1 x mPCIE (PCIe x1 + USB2.0, Full Size) w/ 1 x nano SIM card slot 1 x M.2 B-Key 2242/3042/3052 (PCIe x2 + USB3.0) w/ 2 x nano SIM card slots for 5G module 1 x M.2 E-Key 2230 (CNVi + USB 2.0) slot for WiFi /BT **Support CNVi modules only** |
|---|
OS Support
| System | Windows 10 / Windows 11 / Linux: Ubuntu 20.04 |
|---|
Ordering Information
| ASLAN -W1019C | 18.5” Soldered onboard Intel® 11th Gen Core™ i5-1145G7E Processor 1.50 GHz processor, wide-screen industrial panel PC w/ 4GB Memory |
|---|
Acessórios
PAC-120W6B-FSP-ES
19V/6.32A 120W AC/DC power adapter kit
SCK-722C
Assembly kit for SiP-41B/42B
