Panel PC 27' HPC270C-DCP1135G7 (Tiger Lake i5-1135G7, 2 GLan, 12-36V)

Display

– Rugged protection, metal front bezel
– 27.0″ display with LED backlight
– 300 nits
– 16.7m display colours
– 1920 x 1080 @60Hz resolution
– 178°/178° viewing angle (H/V)
– 0.1038 x 0.1038mm pixel pitch
– 16:9 aspect ratio
– 1000:1 contrast ratio
– 13ms response time

Touchscreen

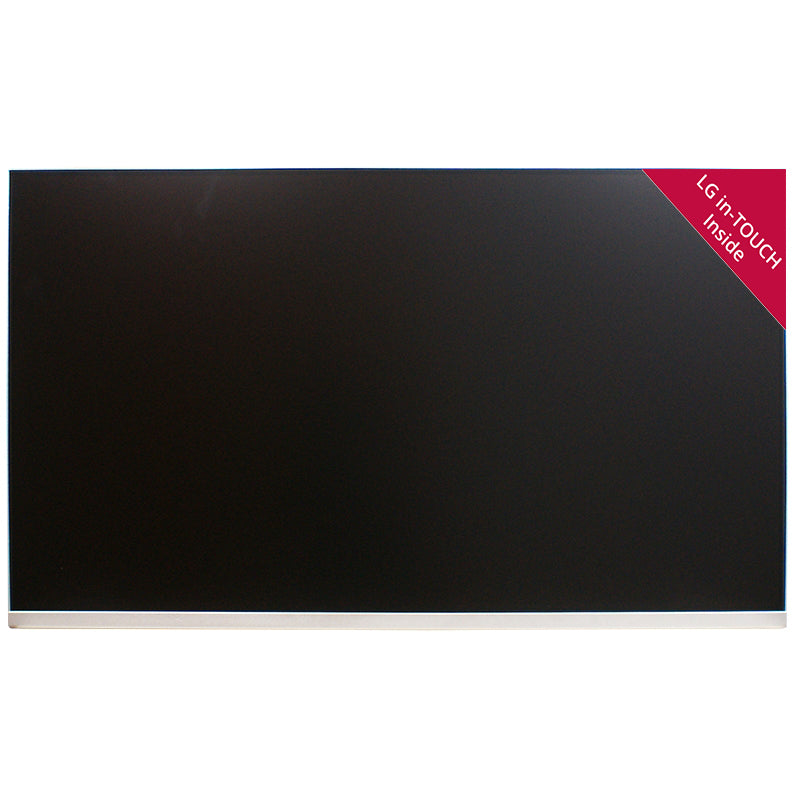

– Projected capacitive type (LG in-cell touch)
– 597.888 x 336.312mm ±0.2mm active area
– Surface hardness ≧3H (JIS-5400)
– Supports high touch performance
– Supports a strengthened polariser for in-TOUCH
– Supports high picture quality
– Supports low reflection / Deep Black
– No deterioration of PQ caused by the TOUCH film
– Supports low color shift
– Supports stable touch operation without flicker

Case

– Aluminum panel
– Iron case
– White color
– Spray-paint coating requirement

Main System

– Intel® Tiger Lake i5-1135G7 2.4GHz/QC processor
– 2* DDR4 SO-DIMM (max. 64GB)
– 256MB SPI Flash ROM
– 256-level watchdog timer, 0~255 sec.
– OS support: Windows 10/11, Linux

Storage

– 1* 2.5” SATA HDD
– 1* M.2 M key (2242/2280, PCI-Ex4)

Expansion

– 1* M.2 E key (2230) for WIFI
– 1* M.2 B key (3042/3052/6570) for a 4G/5G module (4pcs built-in antennas)

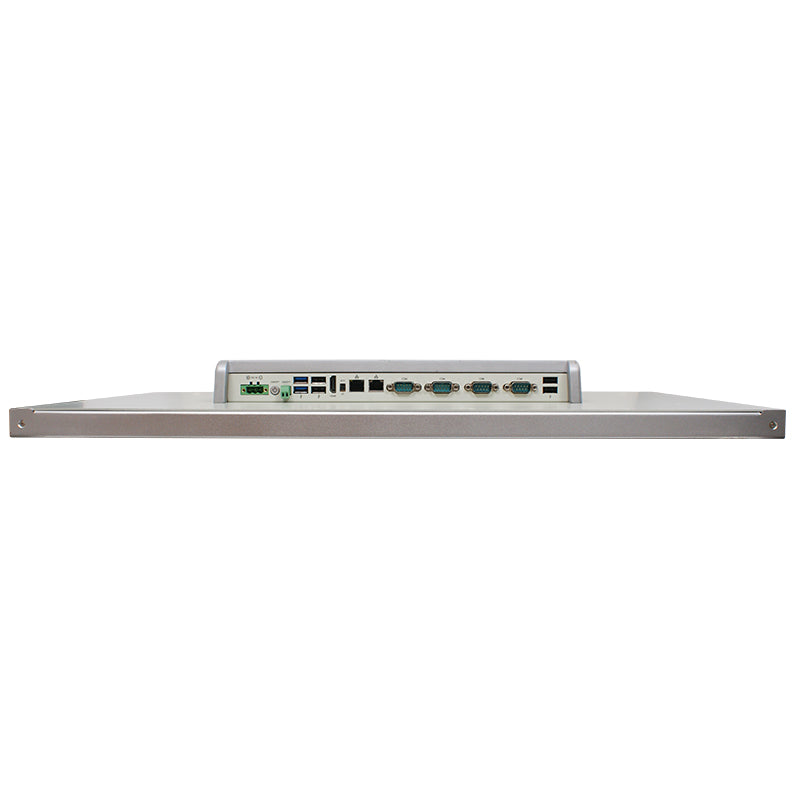

I/O connector

– 2* USB3.2 (Gen. 1)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232 (16bit GPIO option)
– 1* HDMI
– 1* AT/ATX mode button
– 2* RJ45 (1* Intel® I225-V 2.5GbE, 1* Intel® I219LM GbE)
– 1* 12~36V locking DC-in jack
– 1* power button
– 1* 2pin front power button

Power Input

– AC version: 100~240V AC-DC 90W power adapter or
– DC version: 12VDC with overcurrent protection fuse

Power Consumption

– 48W

Dimensions

– 611.20 x 359.18 x 59.00mm

Compliance

– CE, FCC, optional

Safety

– Shock: 1ms duration
– Vibration: 5~500Hz/1 Grms

Temperature

– Operating: : -10°C ~ 50°C
– Storage: -20°C ~ 70°C

Warranty

– 2-year limited warranty (the panel and touch display have only a 1-year warranty)
