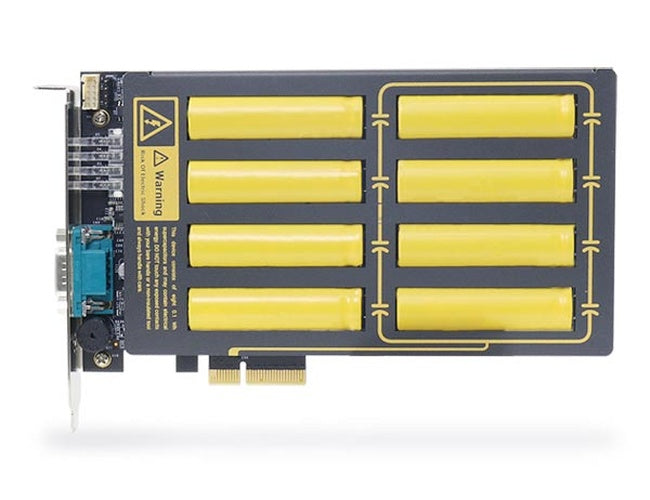

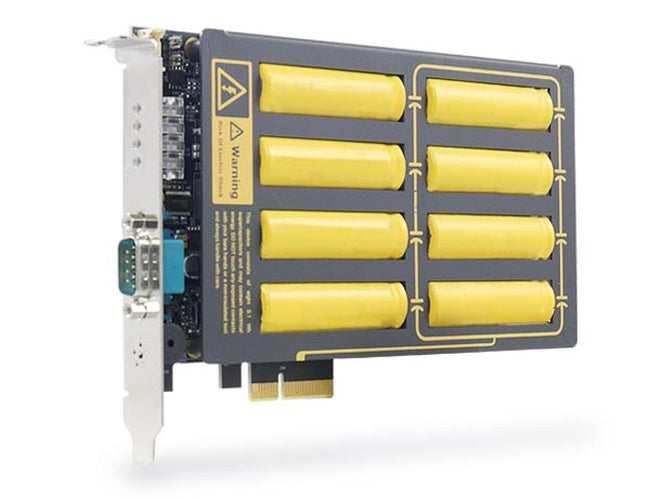

Neousys PB-2500J-PCIe Ultracapacitor-Based Power Backup UPS Module
PB-2500J-PCIe
Industrial-grade intelligent supercapacitor-based power backup module
- Supercapacitor-based, with wide-temperature operation from -25 to 65°C
- 2500 watt-second energy capacity
- Up to 10 years of service life and 500,000 charge/discharge cycles
- Patented CAP energy management technology*
- Maximizes backup time in the event of an unforeseen power outage
- Monitors energy consumption and estimates the time required for system shutdown
- User-configurable operating parameters
- Automatic/manual shutdown control
- High/low-voltage protection
- SuperCAP energy/service-life configuration
- *R.O.C. Patent No. I598820
Neousys' PB-2500J series is an innovative power backup solution for demanding industrial applications. Using supercapacitor technology, it provides an operating temperature range of -25 to 65°C and extremely high durability. Compared with traditional battery-based UPS systems, the PB-2500J series maintains exceptional reliability in extreme-temperature environments and eliminates the drawback of battery performance degradation over time.

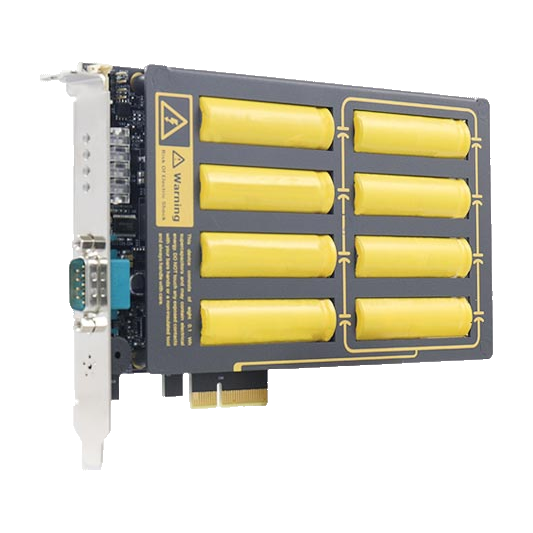

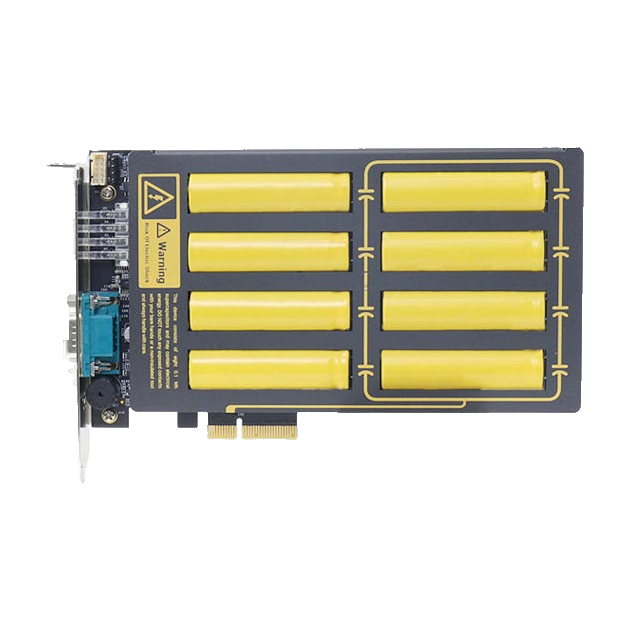

The PB-2500J series incorporates eight 100F supercapacitors that provide 2500 watt-seconds of stored energy to keep your computer running during a power outage; depending on the system’s power consumption, backup time may range from seconds to minutes. What makes the PB-2500J innovative is its patented CAP Sensing technology, which uses an onboard processor that continuously monitors power consumption and adapts to the system. During a power outage, it maximizes system operating time by estimating the optimal moment to initiate system shutdown and prevent data loss.

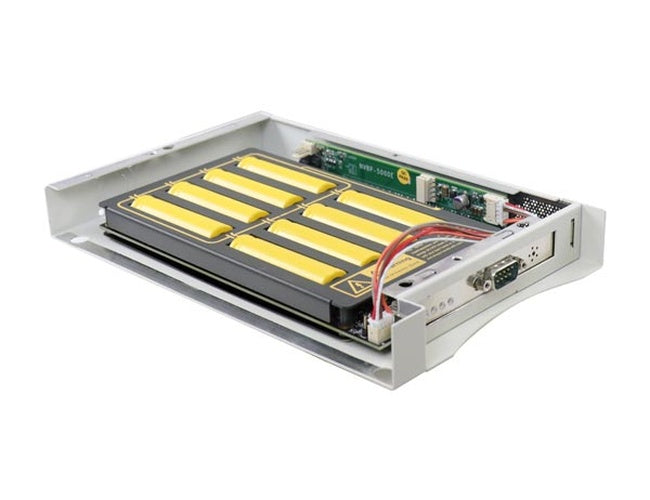

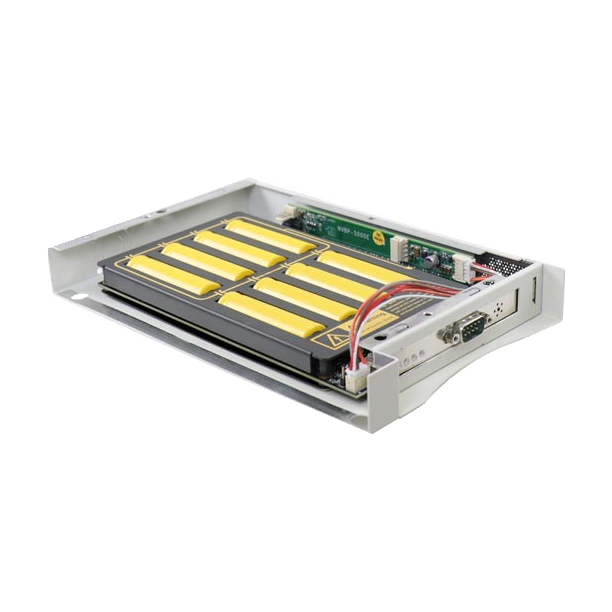

The PB-2500J series is available in two form factors: PB-2500J-PCIe is a plug-and-play PCIe card designed specifically for Neousys Nuvo-6000 systems (except Nuvo-6108GC/ IGN), while PB-2500J-CSM is designed for the Nuvo-5000 and Nuvo-7000 series.
For industrial embedded controllers, stability and the prevention of data loss during power outages are equally important. Neousys’ PB-2500J series addresses the latter by redefining reliability and taking it to another level. With the PB-2500J series, unexpected power loss and unstable power lines are a thing of the past!
■ NEOUSYS MARKETING TEAM
Live DEMO
Applicable to Neousys embedded computers
| PB-2500J-PCIe | |
|---|---|
| Supercapacitor configuration | 8x 100F, 3.0V supercapacitors |
| Capacity | 2500 watt-second |
| Expected Lifespan | > 10 years at 25°C with 2500 w‧s capacity* 76,000 hours at 35°C with 2500 w‧s capacity* 34,000 hours at 45°C with 2500 w‧s capacity* 15,000 hours at 55°C with 2500 w‧s capacity* 7,200 hours at 65°C with 2500 w‧s capacity* Expected lifespan is 2.2x longer when configured with a 2100 watt-second energy capacity, or 4.8x longer when configured with a 1750 watt-second energy capacity |
| Cycle life | 500,000 charge/discharge cycles* |
| Communication interface | 3-wire RS-232 |
| Dimensions | Half-length PCIe card 185 mm (W) x 111 mm (H) |
| Mounting | N/A |
| Operating temperature | -25 ~ 65°C |
| Storage Temperature | -40 ~ 70°C |
| EMC | CE/FCC Class A, according to EN 55022 & EN 55024 |
*Once the rated lifespan or cycle life has been reached, the ultracapacitor capacity
may decrease by up to 30%, and ESR may increase by up to 100% from the initial values.
