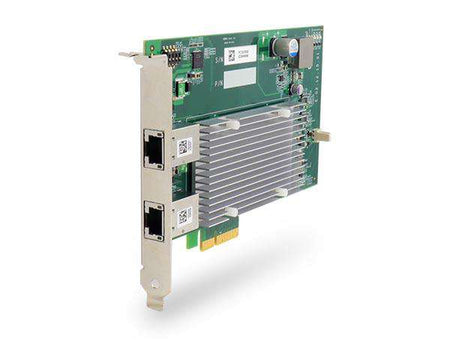

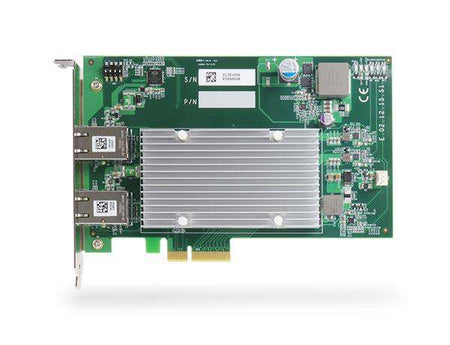

Neousys PCIe-PoE550X 10GbE PoE+ Network Card

2-port 10GbE network adapter with IEEE 802.3at PoE+ machine-vision frame grabber card

• Two 10 GbE ports; Intel® X550-AT2 10 GigE controller
• Gen3 PCI Express x4 interface
• Supports 10GbE with CAT-6/ 6a cable (max. 100 meters)
• Supports 10GbE 802.3at PoE+ with CAT 6a cable
• Supports NBASE-T and 1000BASE-T with CAT-5/ 5e cable
• Compliant with IEEE 802.3at, delivering 25.5W per port
• Supports 15.5 KB jumbo frames, NIC teaming and IEEE 1588
• Per-port PoE+ power on/off control via API

Introducing the world’s first 10Gbit Ethernet NIC incorporating IEEE 802.3at PoE+ capability and featuring Intel’s X550-AT2 silicon, Neousys Technology’s PCIe-PoE550X provides a cost-effective 10GBASE-T solution for growing 10GbE applications.

The PCIe-PoE550X features a 10GbE NIC incorporating Power over Ethernet (PoE+) capability. It combines Neousys’ proven 802.3at PoE+ technology with a refined power design to ensure optimal signal integrity over 10G PHY and maximum bandwidth. The combination of 10GbE and PoE enables new applications such as high-performance WiFi access points and high-speed/ high-definition industrial cameras over a single Ethernet cable.

10GBASE-T uses twisted-pair copper cabling and an RJ-45 connector, dramatically reducing the deployment cost of a 10G network. The PCIe-PoE550X provides 10Gbit/s connections over distances of up to 100 meters with CAT 6a cable or 55 meters with CAT 6 cable. It also supports the upcoming NBASE-T standard while remaining backward-compatible with existing 1000BASE-T GbE networks, allowing easy integration into current network infrastructure.

High-speed/ high-definition machine vision

Server communication
