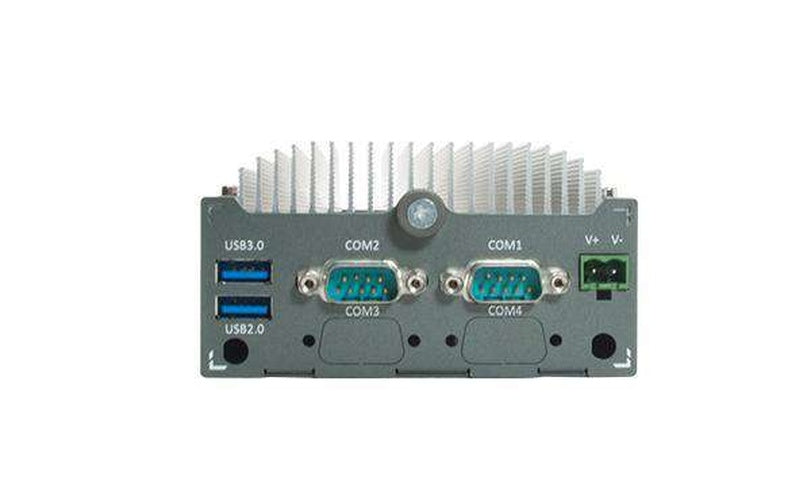

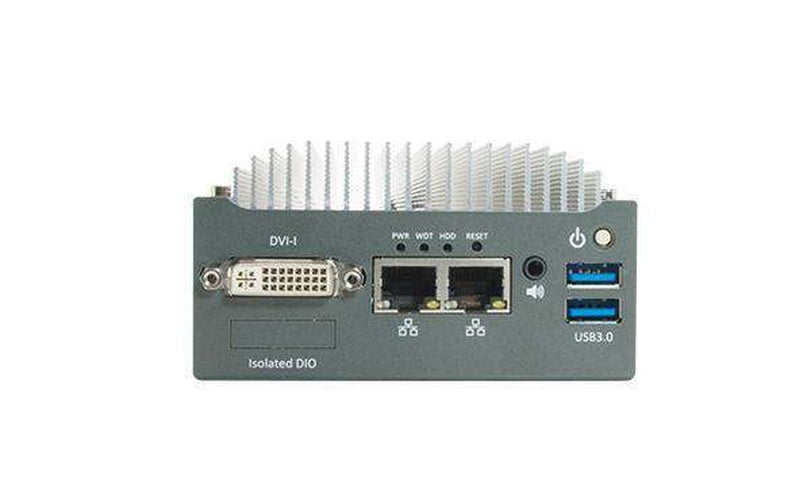

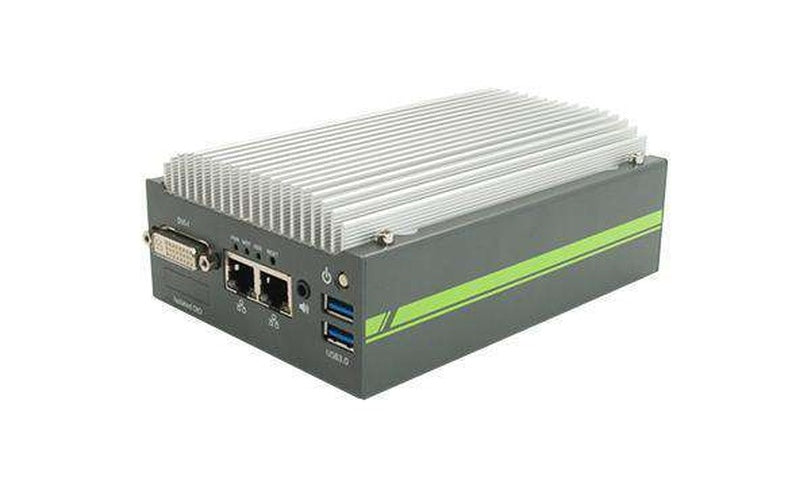

Name: Embedded PC POC-210 (Intel E3845, 2* GbE, 3* USB, 4* COM)
Brand: Neousys
SKU: POC-210
Availability: InStock

Embedded PC POC-210 (Intel E3845, 2* GbE, 3* USB, 4* COM)

Price on request

SKU: POC-210

Product type: EOL

Manufacturer: Neousys

Request a quote

Ultra-compact rugged embedded PC with Atom™ Bay Trail-I

Ultra-compact 150 mm x 100 mm footprint
Intel® Atom™ E3845 1.91GHz Quad-core processor
Rugged, fanless operation over a wide temperature range from -25°C to 70°C
Two 802.3at (25.5W) Gigabit PoE ports
Three USB 3.0 ports

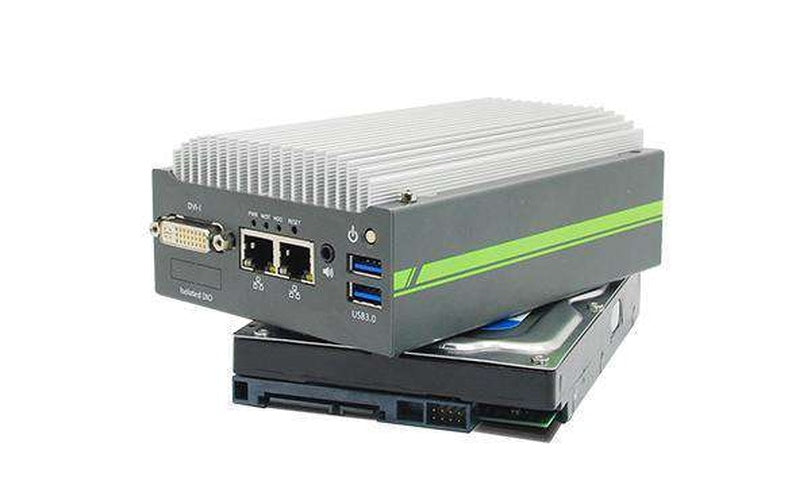

Standard accommodation for a 2.5" SATA HDD/SSD and optional onboard eMMC
Up to two RS-232/422/485 ports and two RS-232 ports

System Core
Processor	Intel® Atom™ E3845 Quad-core processor (POC-200/210/212) Intel® Atom™ E3825 Dual-core processor (POC-222)
Graphics	Integrated Intel® HD Graphics
Memory	1x SO-DIMM socket for DDR3L-1333

Panel I/O Interface
Ethernet	2x Gigabit Ethernet ports via Intel® I210
PoE	IEEE 802.3at (25.5W PSE) (POC-200 only)
Video Port	1x DVI-I connector for both analog RGB and DVI outputs
Serial Port	2x RS-232/422/485, 2x RS-232 (POC200/210) 1x RS-232/422/485, 1x RS-232 (POC212/222)
USB	3x USB 3.0 ports and 1x USB 2.0 port
Audio	1x Speaker-out
DIO - POC-200	4-CH isolated DI + 4-CH isolated DO
DIO - POC-210/212/222	8-CH 5V TTL GPIO (Standard) 4-CH isolated DI + 4-CH isolated DO (Optional)

Internal I/O Interface
Mini PCIe	1x mini PCI Express slot with USIM socket

Storage Interface
SATA HDD	1x SATA port for a 2.5” HDD/SSD (POC-200/210) 1x SATA port with an easy-swap HDD tray for a 2.5” HDD/SSD (POC-212/222)

Power Supply
DC Input	Built-in 8~35V DC input
Input Connector	1x 2-pin pluggable terminal block for DC input

* CPU loading is applied using the Intel® Thermal Analysis Tool. For detailed testing criteria, please contact Neousys Technology.
** For sub-zero operating temperatures, a wide-temperature HDD or Solid State Disk (SSD) is required.

Mechanical
Dimensions	149mm (W) x 105 mm (H) x 57 mm (D) (POC-200/210) 149mm (W) x 105 mm (H) x 53 mm (D) (POC-212/222)
Weight	1.1 kg (including one 2.5” HDD)
Mounting	Wall mounting (standard) or DIN-Rail mounting (optional)
Environmental
Operating Temperature	-25°C ~ 70°C with SSD, 100% CPU loading /* -10°C ~ 50°C with HDD, 100% CPU loading /*
Storage Temperature	-40°C ~ 85°C
Humidity	10%~90%, non-condensing
Vibration	Operating, 5 Grms, 5-500 Hz, 3 axes (with SSD, according to IEC60068-2-64)
Shock	Operating, 50 Grms, half-sine, 11 ms duration (with SSD, according to IEC60068-2-27)
EMC	CE/FCC Class A, according to EN 55022, EN55032 & EN 55024
