Neousys POC-546 (AMD Ryzen™ V1807B, 4* PoE+ ports, MezIO-R12)

POC-546

AMD Ryzen™ Embedded V1807B ultra-compact controller with 4x PoE+ ports, 4x USB 3.1 Gen1 ports and MezIO-R12

• AMD Ryzen™ Embedded V1605B/ V1807B series quad-core 15W/ 45W CPU
• Rugged wide-temperature operation from -25 °C to 70 °C
• Four Gigabit PoE+ ports with screw locks
• Four USB 3.1 Gen1 ports with screw locks
• M.2 2280 M-key NVMe (Gen3 x2) socket for fast storage access
• DP + VGA dual display outputs
• Front I/O access and DIN-rail mounting design
• MezIO™ compatible

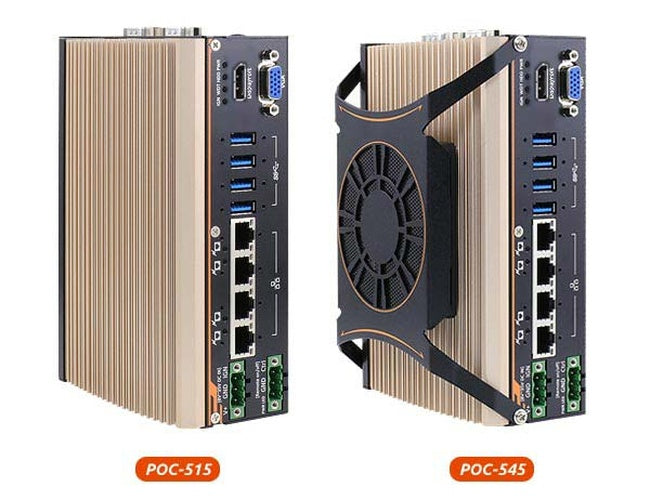

The POC-500 series is the next generation of ultra-compact embedded controllers, offering unprecedented performance in this form factor. Featuring an AMD Ryzen™ Embedded V1605B/ V1807B 4-core/ 8-thread processor, it delivers up to 3x the CPU performance of the previous POC series. In terms of GPU performance, it delivers an unprecedented 3.6 TFLOPS in FP16 for an ultra-compact embedded controller. Another remarkable achievement is the integration of an M.2 2280 NVMe SSD (PCIe Gen3 x2), supporting 2x the disk read/ write speed of typical 2.5" SATA SSDs.

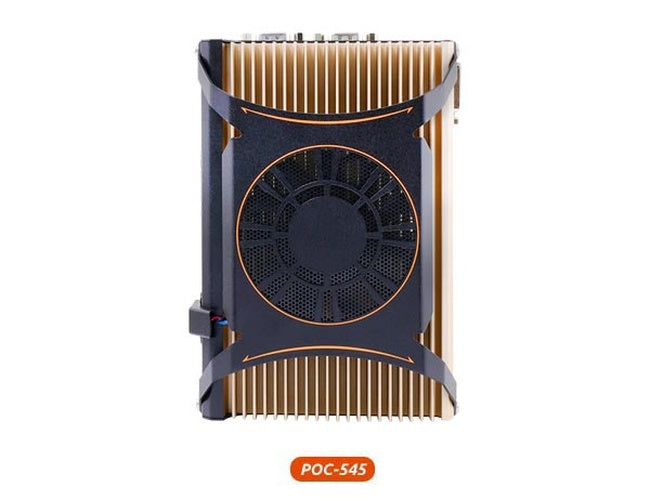

The POC-500 series retains the POC series' ingenious DIN-rail mounting design and provides numerous front-accessible I/Os. Measuring just 63 x 176 x 116 mm (2.5" x 6.9" x 4.6"), it features 4x PoE+ ports, 4x USB 3.1 Gen1 ports and 4x COM ports. Best of all, every data port includes a screw-lock mechanism, ensuring that cables remain securely connected. The POC-500 series is available in two CPU variants: the V1807B (45W) variant for applications with high computing-power demands and the V1605B (15W) variant for rugged fanless operation.

The arrival of the POC-500 series marks a new generation of ultra-compact embedded controllers, offering improved I/O design, exceptional ruggedness and significantly greater CPU/ GPU performance for versatile applications.

■ NEOUSYS MARKETING TEAM

Superior Performance

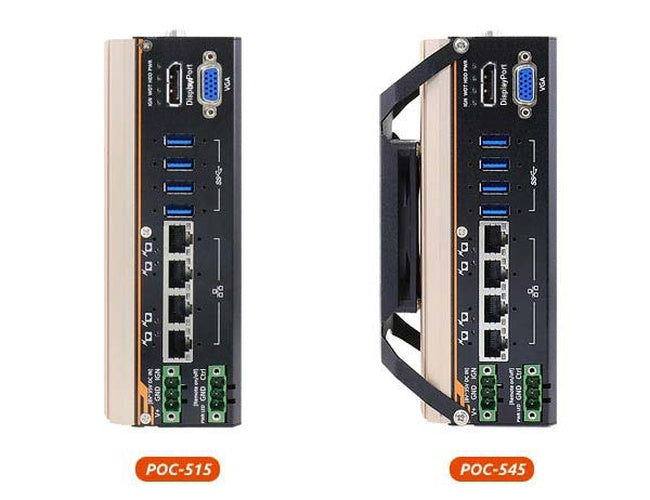

Front-accessible I/O functionality

Compact Dimensions

Rugged wide-temperature operation
