GIGAIPC QBiX-GLKA5005H-A1 (Intel Pentium Silver J5005)
Industrial embedded Mini PC with Intel® Pentium® Silver J5005 processor
- System dimensions: 118W x 109.4D x 54.4H (mm)
- Intel® Pentium® Silver J5005 processor
- 1 x RS232 COM port
- Single-channel DDR4, 1 x SO-DIMM
- HDMI, VGA
- 1 x GbE LAN port
Application
- Factory Automation
- Smart Retail
- Industrial PC
- KIOSK / POS
- Embedded and Industrial Applications
- IoT system
The GIGAIPC QBiX Series embedded system uses GIGAIPC QBi (10x10 motherboards). It is designed as a palm-sized, fanless, rugged computing solution for thin clients, POS, KIOSK, smart factory automation, industrial controller systems, and space-constrained applications, with 75x75 and 100x100 VESA mounting options.
The QBiX-GLKA5005H-A1 is powered by an Intel® Pentium® J5005 processor, providing low power consumption and high performance. It is designed with full-range +12-19V DC power inputs for an operating temperature of 0°C~50°C. The system supports a 2.5" HDD/SSD (SATA 6Gb/s), with vibration resistance of 5 Grms/5~500Hz and shock resistance of 50G/11ms, to meet the industrial standard.
It provides HDMI and VGA outputs, 4 x USB 3.0 ports, 1 x RS-232 COM port for connecting various peripherals, and M.2 2230 E-Key for expansion.
| Dimensions | 118W x 109.4D x 54.4H(mm) |
| CPU | Intel® Pentium® Silver J5005 Processor 14nm, 4 cores, 4 threads, up to 2.8 GHz TDP 10W 4MB cache |
| Chipset | SOC |
| Memory | 1 x DDR4 SO-DIMM socket, max. capacity 8 GB Supports single-channel DDR4 2400 MHz memory modules |
| Ethernet | 1 x GbE LAN port (Realtek® RTL8111HS) |
| Graphics support | Integrated Graphics Processor - Intel® UHD Graphics 605: 1 x HDMI 1.4b port, supporting a maximum resolution of 4096x2160 @30Hz 1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz (with compatible displays) (2 independent display outputs) |
| Audio | Realtek ALC891 High Definition Audio |
| Storage | 1 x 2.5" HDD/SSD (SATA 6Gb/s) |
| Expansion Slots | 1 x 2230 M.2 E-Key (WiFi/BT) |

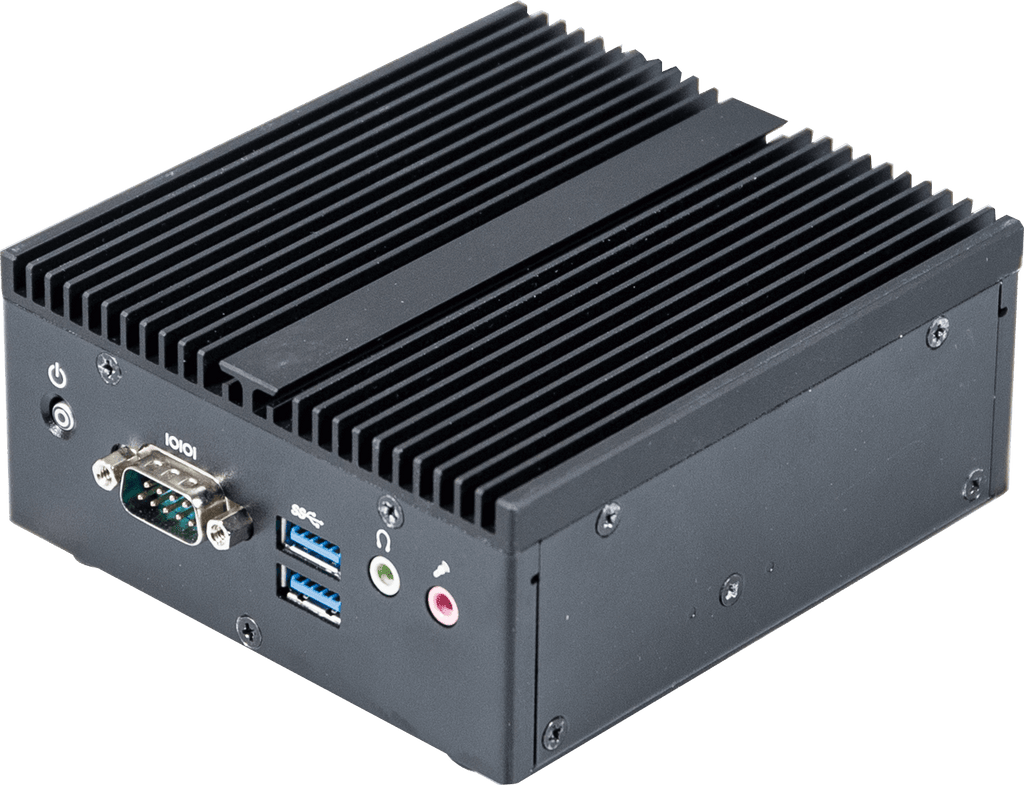

| Front I/O | 2 x USB3.0 1 x COM port (RS-232) 1 x headphone jack 1 x microphone jack 1 x power button with LED |

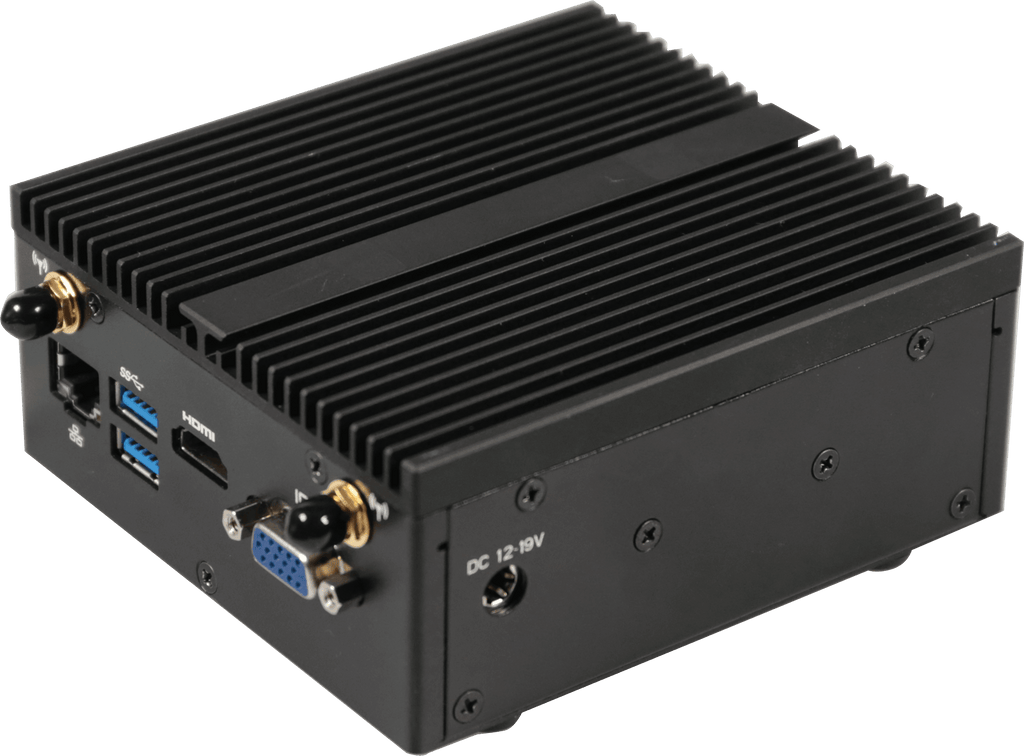

| Rear I/O | 1 x RJ45 LAN port 2 x USB 3.0 1 x HDMI 1 x VGA 2 x external antennas (optional) |
| Side I/O | 1 x DC-Jack |
| Power | +12~19VDC full range (19V/65W adapter) |
| Operating temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) Use memory and storage designed for a wide temperature range |
| Vibration During Operation | Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / per axis, with SSD Non-operation: IEC 60068-2-6, 2 G, sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / per axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, with SSD |
| Package contents | Box packing capacity: 6pcs Carton size: 411x403x282(mm) Contents: POWER CORD 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R) PSU ADAPTER 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065M-F3S) VESA_RS_BKT_KP x 1 (P/N: 25HB1-TPL021-S8R) VESA-SCREW-ASM x 1 (P/N: 25KSD-000001-S4R) I-HEAD SCREW FOR 25HDD M3x8L x 4 (P/N: 25KSG-130081-K1R) HDD THERMAL PAD x 2 (P/N: 25ST3-200047-T5R) FFC SATA CABLE x 1 (P/N: 25CFE-100004-J3R) |
| Ordering information | 6BCGAAMR-SI |
