Jetway HBJC150F792-3160R (Intel N3160, 2LAN, 2COM, LPT, 250W)

Model

– HBJC150F792-3160R (CPU: N3160)
– HBJC150F792Z-3160R (CPU: N3160, Wifi)

CPU/Chipset

– Intel® Braswell N3160 SoC processor (TDP 6W)

BIOS

– AMI 64Mb Flash ROM

Memory

– 2* dual-channel DDR3L 1600MHz SO-DIMM modules up to 8GB

Network

– 2* Realtek RTL8119I GbE

Graphics

– Intel® HD Graphics, shared memory
– 1* HDMI (max. resolution:3840×2160@30Hz)
– 1* VGA (max. resolution:1920×1080@60Hz)
– Supports dual displays

Storage

– 1* M.2 M-Key (2242/2260, with SATA interface)
– 1* 2.5” SATAIII (6 Gb/s) internal drive bay

Expansion

– 1* PCIe
– 1* Mini-PCIe (full size)

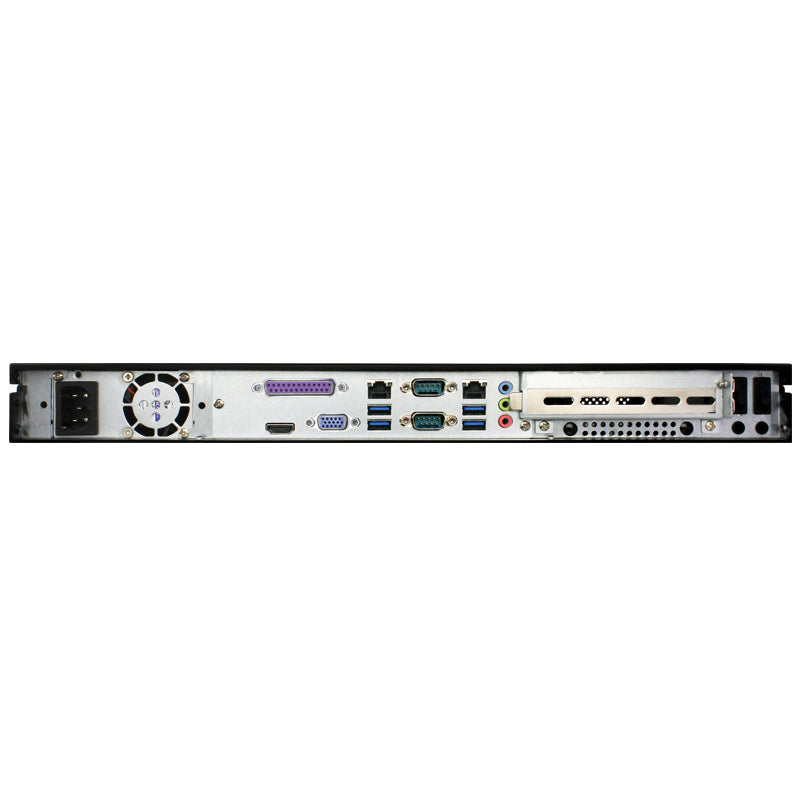

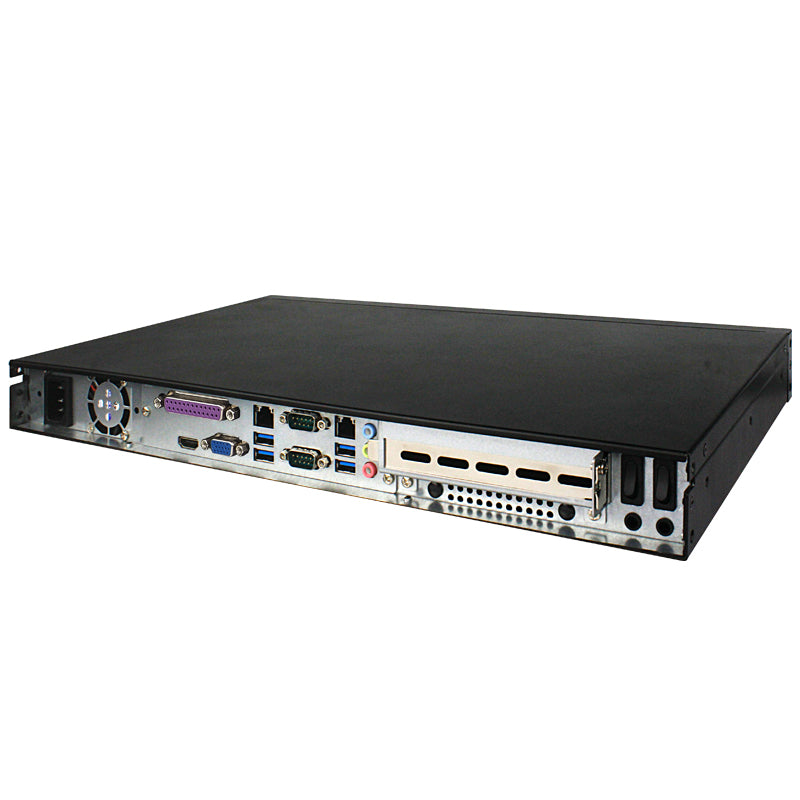

Rear panel I/O

– 1* power switch, 1* reset switch
– 1* power LED, 1* HDD LED
– 1* USB2.0
– 3* USB3.0
– 1* HDMI
– 1* VGA
– 1* LPT
– 2* RJ45
– 1* line-in, 1* line-out, 1* MIC
– 2* COM ports (COM1 supports RS232/422/485)
– 2* antenna holes (optional)
– 1* AC input

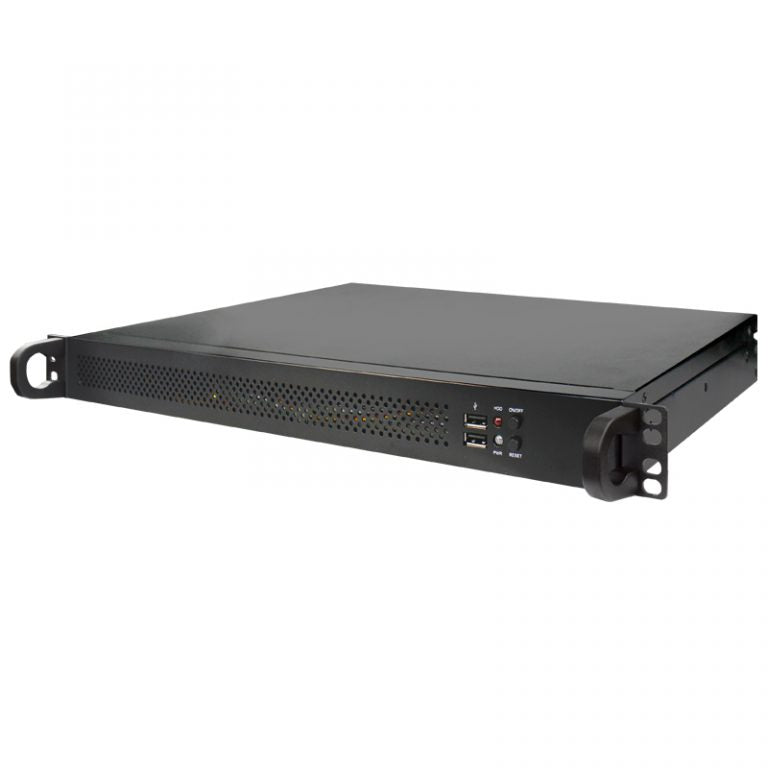

Front panel I/O

– 1* power button, 1* Reset button
– 1* power LED, 1* HDD LED
– 2* USB2.0

Internal connector

– 1* SIM card slot

Power source

– MB : 24pin ATX
– System: 1U 250W FLEX power supply

Compliance

– CE, FCC, RoHS, REACH ready

Dimensions

– System: 430 (W) x 252 (D) x 44 (H) mm
– Box: 530 (W) x 353 (D) x 142 (H) mm

Temperature

– Operating temperature: 0 ~ 50° C
– Storage temperature: -10 ~ 70° C

OS support

– Windows 10, Linux

Warranty

– 2-year limited warranty

Part number

  Description

 HBJC150F792Z-3160R

 Varies according to the shipping area

 Power cord

 LCSCJC150-F

 JC150 1U case screw package

 G01-SATA3-BL-1F

 SATA cable L=50cm
