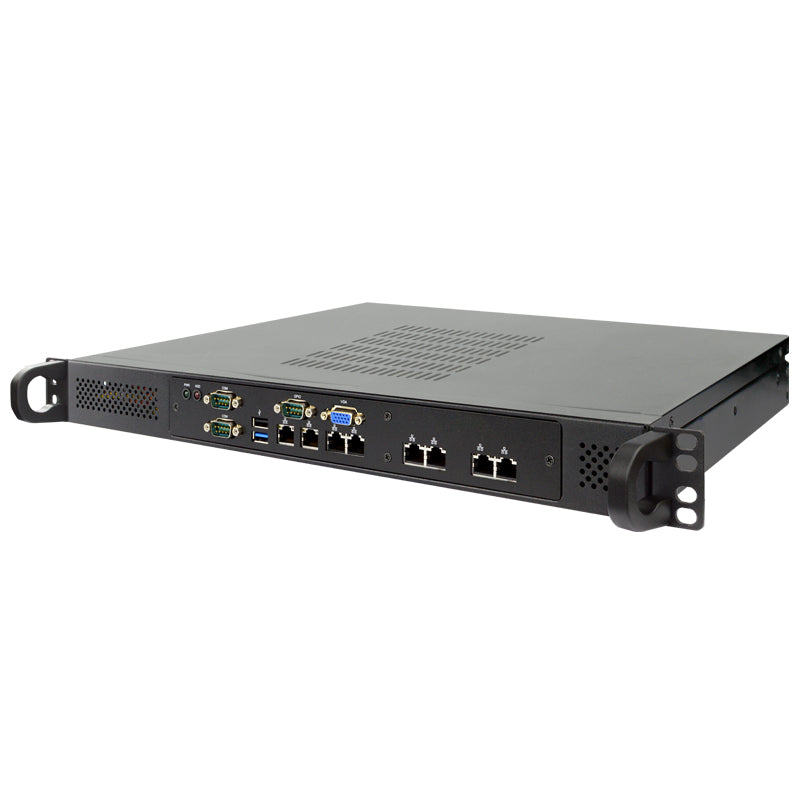

Rackmount PC HBJC153F9HB-2930-B (N2930, 4* GLAN i211AT)

MB model

– JNF9HG-2930 / MINI-ITX

Part No.

Standard

4-port PCI-E LAN expansion card

2 pairs of LAN Bypass

– HBJC153F9HG-2930-B

– HBJC153F9HG-2930G4

– HBJC153F9HG-2930B4

BIOS

– AMI 64MB SMT Flash ROM

CPU/Chipset

– INTEL® Bay Trail – M/D/I Processor (2930)

Memory

– 2 * DDR3L 1333/1066MHz SO-DIMM, up to 8GB

Storage

– 2 * 2.5” SATA HDD
– 1 * full-size shared mSATA/mini-PCI Express slot

Expansion

– 1 * full-size Mini-PCIE
– 1 * SIM card slot
– TPM support (optional)

Network

– 4 * Intel i211AT Gigabit LAN
– 1 * full-size mini-PCIE slot (802.11 b/g/n + BT 4.0 installed in the WIFI model)

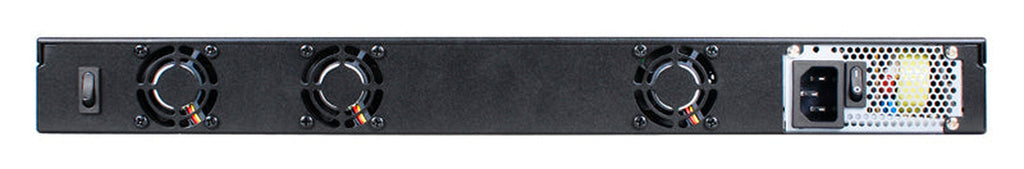

Rear Panel I/O

– 1 * power switch
– AC input

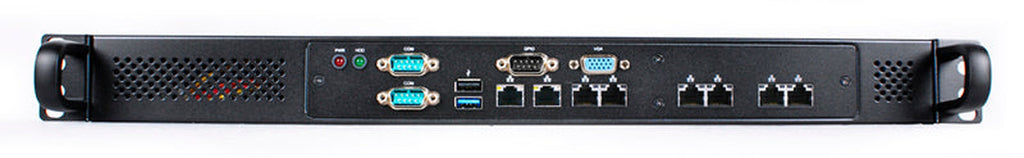

Front-panel I/O

– 4 * RJ45
– 1 * USB3.0
– 1 * VGA (Max.: 1920×1080@60Hz) (Not assembled before shipment; cable placed in the parts box)
– 2 * COM (1* optional)
– 1 * PW LED, 1 * alarm LED
– 1 * GPIO (Not assembled before shipment; cable placed in the parts box)
4-port PCI-E LAN expansion card: HBJC153F9HG-2930G4
PCI-E expansion card with 2 pairs of LAN Bypass: HBJC153F9HG-2930B4

Power source

– 1U FLEX 250W power supply / AC 90~240V input
– MB: DC12V input

Compliance

– CE, FCC, RoHS

Temperature

– Operating temperature: 0 ~ 50°C
– Storage temperature: -40 ~ 85°C
– Humidity: 10%~95% @40°C (non-condensing)

Dimensions

– 430 (W) x 252 (D) x 44 (H) mm

Packaging

– Net weight: 4.2KG
– Gross weight: 5KG
– Color box dimensions: 530 (W) * 353 (D) * 142 (H) mm

OS support

– Windows 7, Windows 8.1, Windows 10, Linux

Warranty

– 2-year limited warranty
