Rackmount PC HBJC153F9HB-2930B4 (N2930, 4* GLAN, 2 ByPass GbE)

MB model

– JNF9HB-2930 / Mini-ITX

Part No.

Standard

4-port GbE PCI-E expansion card

LAN expansion card with 2 Bypass pairs

– HBJC153F9HB-2930-B

– HBJC153F9HB-2930G4

– HBJC153F9HB-2930B4

BIOS

– AMI 64MB SMT Flash ROM

CPU/Chipset

– Intel® Bay Trail-M N2930 SoC Processor (Default)

Memory

Supports 2 * DDR3L 1333/1066MHz SO-DIMM up to 8GB

Storage

– Supports 2 * 2.5” SATA drive bays (only supports 2.5″ HDDs with a height ≤ 10mm)
– Supports 1 * full-size shared mSATA/Mini-PCI Express slot

Expansion

– 1 * full-size Mini-PCIe
– 1 * SIM card slot
– TPM support (optional)

Network

– 4 * Intel i211AT GbE (1 pair with ByPass GbE support)
– 1 * full-size Mini-PCIe slot (802.11 b/g/n + BT 4.0 installed in the Wi-Fi model)

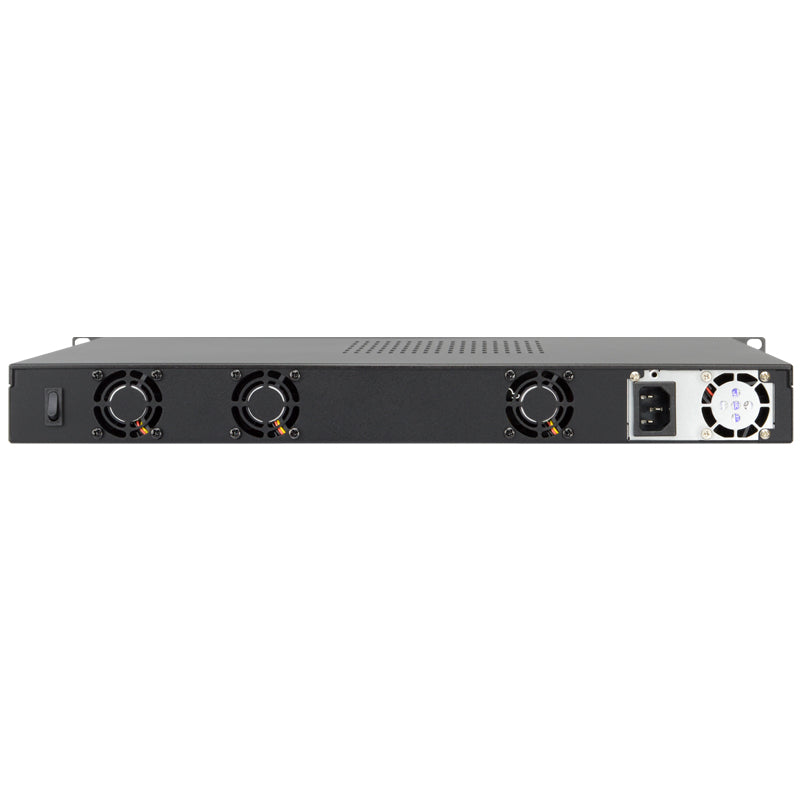

Rear Panel I/O

– 1 * power switch
– AC input / built-in 1U FLEX 200W power supply

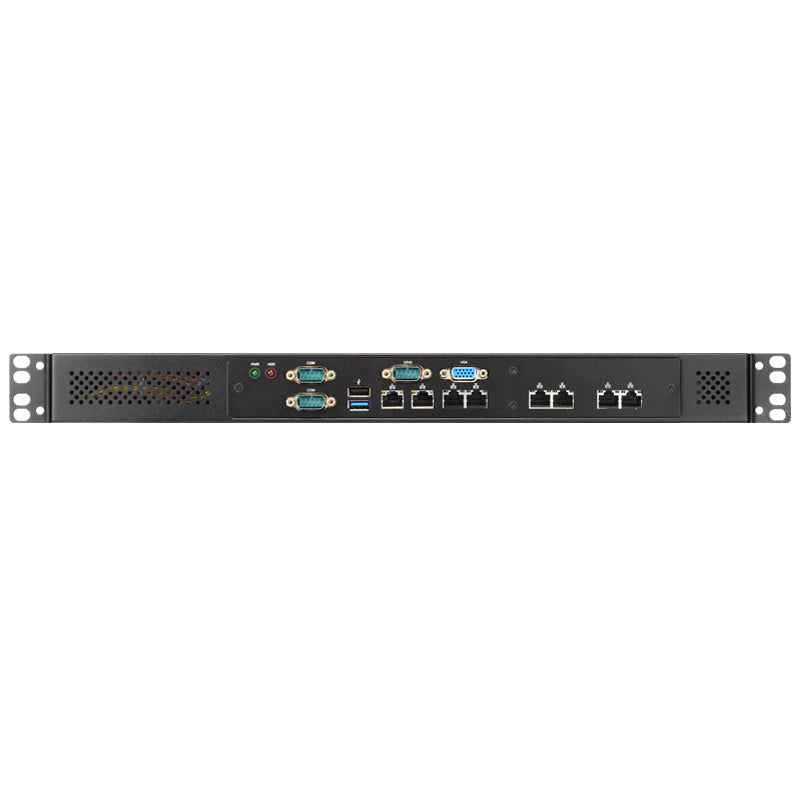

Front-panel I/O

– 4 * RJ45 (1 pair with ByPass GbE support)
– 1 * USB3.0
– 1 * USB2.0
– 1 * VGA (Max. Resolution: 1920×1080@60Hz)
– 2 * COM
– 1 * PW LED, 1 * Alarm LED
– 1 * GPIO (not assembled when shipped; wire placed in the parts box)
– 4-port GbE PCIe expansion card: HBJC153F9HB-2930G4
– PCIe LAN expansion card with 2 Bypass pairs: HBJC153F9HB-2930B4

Power Source

– 1U FLEX 250W power supply / AC 90~240V input
– MB: DC12V input

Compliance

– CE, FCC, RoHS

Temperature

– Operating Temperature: 0 ~ 50°C
– Storage Temperature: -40 ~ 85°C
– Humidity: 10%~95% @40°C (non-condensing)

Dimensions

– 430 (W) x 252 (D) x 44 (H) mm

Packaging

– Net Weight: 4.2KG
– Gross Weight: 5KG
– Color Box dimensions: 530 (W) * 353 (D) * 142 (H) mm

OS Support

– Windows 7, Windows 8.1, Windows 10, Linux

Warranty

– 2-year limited warranty
