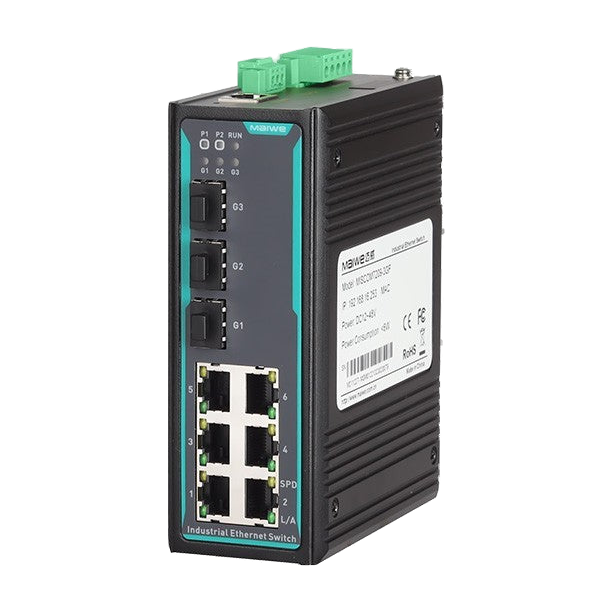

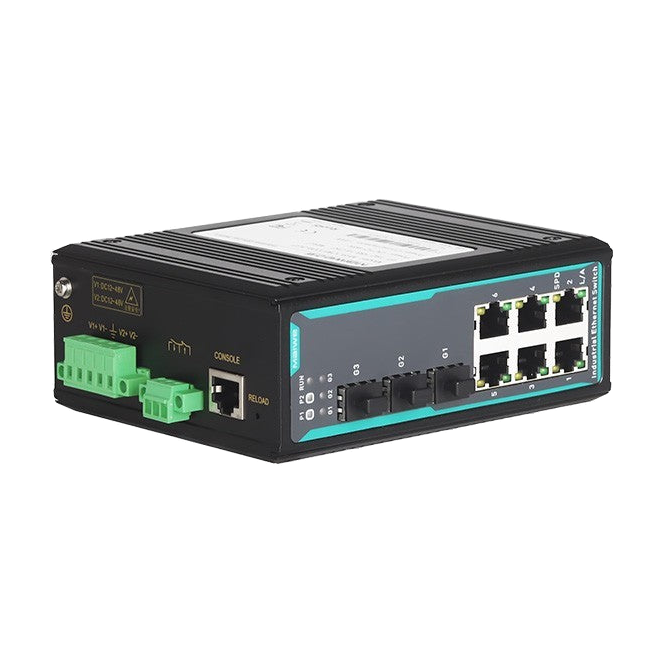

Switch MISCOM7209-3GF (6* 10/100M T(x), 3 Gigabit SFP)
MISCOM7209-3GF
Layer 2 DIN-rail managed industrial Ethernet switch with 3 Gigabit SFP ports + 6 10/100M T(x) ports
- Supports MW-Ring with a recovery time of <20ms
- Supports static Multicast/IGMP Snooping
- Supports broadcast storm suppression/rate limiting
- Supports RMON and private MIB
- Supports IEEE802.1p/IEEE 802.1Q VLAN/QoS/Tos DiffServe/port link aggregation/port mirroring
The MISCOM7209 Gigabit managed DIN-rail industrial Ethernet switch provides a high-end industrial Ethernet communications solution for flexible and changing industrial applications, overcoming the 100M backbone network bottleneck and making industrial communications smoother, more reliable and faster. The MISCOM7209 managed Gigabit industrial Ethernet switch features 6 adaptive 100M electrical ports and 3 Gigabit SFP ports.
Features and Benefits
-3 Gigabit SFP ports + 6x10/100BaseT(x) ports
-Supports MW-Ring with a recovery time of <20ms
-Supports real-time broadcast storm monitoring and control/rate limiting
-Supports static multicast/dynamic IGMP snooping/multicast traffic filtering
-Supports port VLAN/IEEE 802.1q VLAN/QoS/port aggregation/port mirroring/IEEE802.1p/ToS DiffServe
-Embedded web server for remote management and configuration via a browser
-Supports RMON and a private MIB table
-Supports relay alarm output for power-down status
-Supports industrial-grade dual power input redundancy
Software performance | |
Redundancy protocol | Supports MW-Ring with a recovery time<20ms |
Multicast routing | Supports IGMP snooping/ IGMP v1/v2 Supports GMRP |
Management and maintenance | Supports Console and Web management methods |
Technical specifications | |
Ethernet standard | IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.3z-1000BaseLX IEEE802.1w-Rapid Spanning Tree Protocol IEEE 802.1s-MSTP IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service |
Switch properties | |
Priority queue | 4 |
VLAN ID | 1-4096 |
IGMP groups | 256 |
MAC table | 8k |
Switch bandwidth | 7.6Gbps |
Switch latency | <5μs |
Interface | |
Gigabit ports | Number of ports:3 |
Connector: SFP for fiber port(LC, single-mode or multi-mode) or 10/100/1000M adaptive module | |
Baud rate:1000Base-LX(fiber port), 10/100/1000M auto-negotiation 1000Base-Tx | |
10/100Base port | Number of ports:6 |
Connector:9 fixed FX ports(single-mode/multi-mode; SC/FC/ST) or RJ45 port | |
Baud rate: 100Base-FX; auto-negotiation 10/100M copper port | |
Console port | RS232/RJ45 |

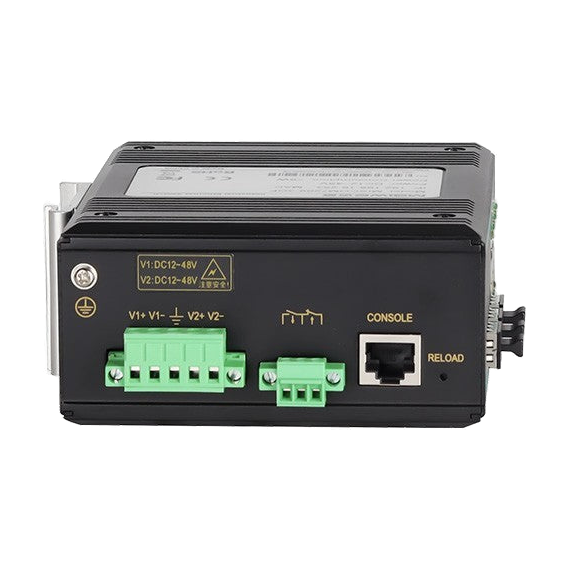

Terminal block for power input | 5.08mm terminal block |
Terminal block for relay alarm | 5.08mm terminal block,1A@24VDC |
Communication distance | |
Twisted-pair | 100m(CAT5/CAT5e cable) |
Multi-mode fiber | Gigabit multi-mode: 850nm 550m; 10/100Base multi-mode:1310nm 2km |
Single-mode fiber | Gigabit single-mode: 1310nm 20km; 10/100Base single-mode:1310nm 20/40km;1550nm 60/80km |
LED indicator lights | |
Front-panel LED indicators | Port indicator: LINK/ACT; SPEED; Gx |
Operating indicator: RUN | |
Power LED: PWR1/PWR2 | |
Power requirements | |
Power input | DC9-60V AD220V |
Full-load consumption | <6W@24V |
Overload protection | Supported |
Reverse-polarity protection | Supported |
Redundancy protection | Supported |
Operating environment | |
Operating Temperature | -40°C~85°C |
Storage temperature | -40°C~85°C |
Ambient humidity | 5%~95%(non-condensing) |
Physical characteristics | |
Enclosure | IP40 protection, aluminum alloy enclosure |

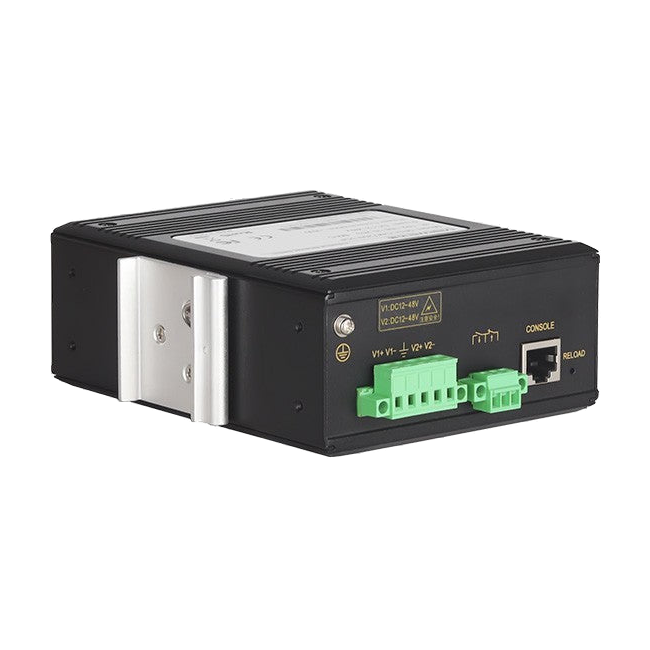

Installation | 35mm din rail-mounted installation |
Dimensions | 140mmx54mmx110mm |
Industry standard | |
EMC | EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5 |
Shock | IEC60068–2-27 |
Free fall | IEC60068-2-32 |
Shock | IEC60068-2-6 |
Warranty | |
Warranty period | 5 Years |
Certification | CE, FCC, RoHS |
Ordering information
Ordering Information | |
MISCOM7209-3GF | 3-port Gigabit SFP + 6-port 10/100Tx, redundant 9-60V power supply |
MISCOM7209-3GF-AD220 | 3-port Gigabit SFP + 6-port 10/100Tx, AC85-264V/DC110~370V isolated power supply |
