Switch PoE+ LMP-0602-ST-S3-T (4*10/100Tx + 2*ST, SM 30km)

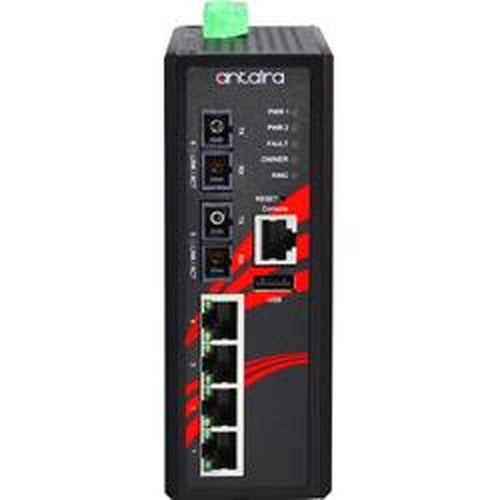

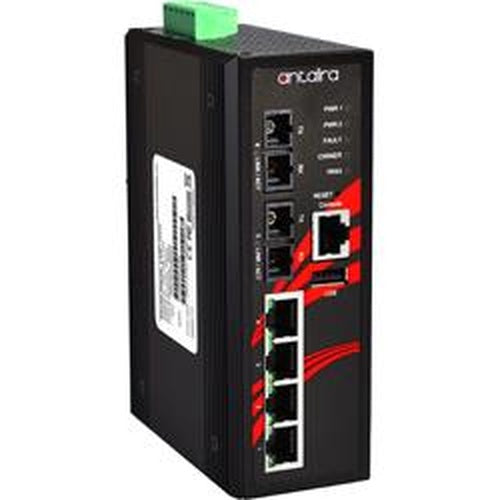

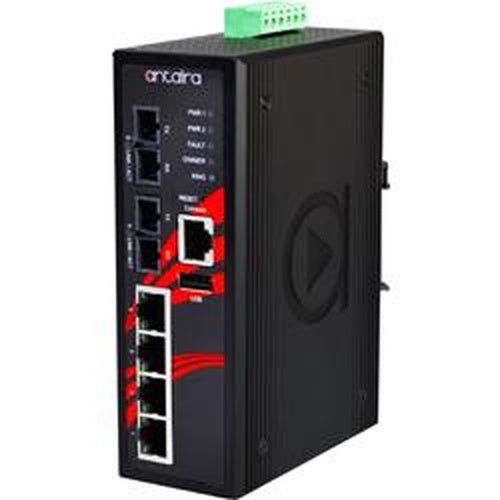

Antaira’s LMP-0602-M is a 6-port managed PoE+ industrial Ethernet switch with 4* 10/100Tx Ethernet ports supporting IEEE802.3at/af, a maximum of 30 watts per port, and 2* 100Fx fiber ports (SC or ST connector), with optional multimode (2 km) and single-mode (30 km) versions.
The LMP-0602 series consists of fully managed industrial Ethernet switches that support standard Ethernet Layer 2 settings through a pre-installed web console. This product series is IP30-rated, supports DIN rail mounting, and is available in models with the following operating temperature ranges: STD: -10° C to 70° C and EOT: -40° C to 75° C. It also provides high EFT and ESD protection for industrial network applications in factory automation, ITS, energy / utilities, water / wastewater treatment plants, or any outdoor or harsh environment.
Included
1* LMP-0602 switch
1* RJ45-to-DB9 serial console cable
2* wall-mount brackets with screws
1* DC cable – 18 AWG & 5.5x2.1mm DC jack
LMP-0602-M
- Supports 4 * 10 / 100Tx ports compatible with IEEE 802.3at / af, with 30W / port, and 2 * 100Fx (SC) fiber ports
- Fiber support: multimode, 2 km
- Supports network redundancy: RSTP / MSTP and G.8032 ERPS (recovery time <50ms)
- Configuration: web console, serial console, and CLI commands
- Supports IGMP v1 / v2, up to 256 groups
- Supports QoS (IEEE802.1p) and CoS / ToS
- Supports IEEE802.1Q VLAN and SNMP v1 / v2c
- PoE ping alarm function for power cycling PoE ports
- System notification settings for automatic email alerts
- Redundant power input design

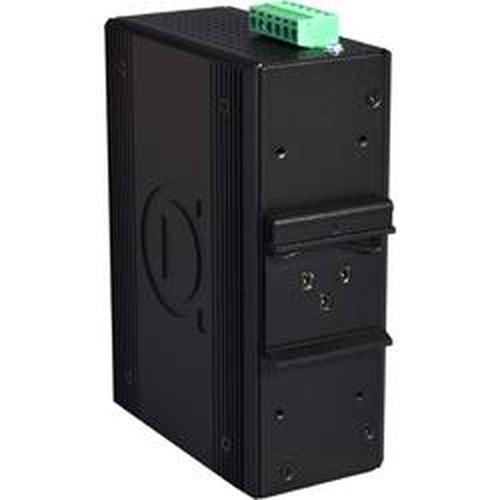

- Enclosure: IP 30-rated metal; supports DIN rail and wall mounting
- Operating temperature - STD: -10 ~ 70C
- 5-year warranty
