Tablet 10.1" DT301Y (Core™ i5-1135G7, 8GB/ 256GB, IP65, Win 10 IoT)
DT301Y RUGGED 2-IN-1 TABLET
Slim, rugged, multifunctional wireless computing
- 10.1" Full-HD capacitive touchscreen, 800 nits, with digital pen support
- Intel® Core™ i5/i7 or Pentium® Gold 7505 processor
- Microsoft® Windows® 10/11 IoT Enterprise operating system
- NIST-compliant BIOS available
- High-capacity, hot-swappable battery pack
- Built-in Smart Card/CAC reader
- Antimicrobial coating
- IP65-rated and MIL-STD-810H and MIL-STD-461F certified
- HERO (Hazard of Electromagnetic Radiation to Ordnance) certified
- Energy Star 8.0 certified

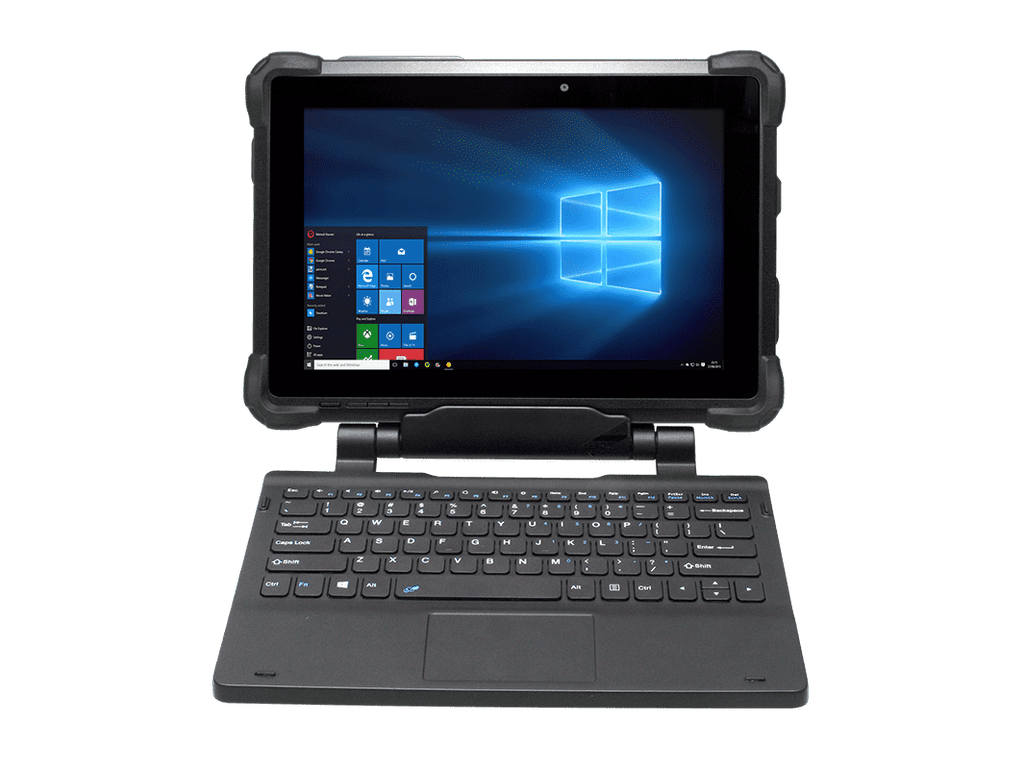

- Detachable keyboard option for 2-in-1 applications
The DT301Y Rugged Tablet integrates a high-brightness 10,1" capacitive touchscreen with a high-performance, energy-efficient Intel® Core™ or Pentium® processor in a thin, lightweight, and durable design. With a built-in Smart Card/CAC reader and Wi-Fi, as well as options for front and rear cameras, a barcode scanner, and GNSS, this rugged tablet enables seamless information capture and transmission to improve workflow. IP65-rated, MIL-STD-810H-certified, and HERO-certified, with a wide operating temperature range, the DT301Y Rugged Tablet provides reliable operation in harsh and mission-critical environments.
SYSTEM
CPU
Intel® Pentium® Gold 7505, 2-Core, up to 3.5 GHz
Intel® Core™ i5-1135G7, 4-Core, up to 4.2 GHz
Intel® Core™ i7-1165G7, 4-Core, up to 4.7 GHzRAM
8GB to 32GB
Storage
256GB to 2TB flash storage
Operating system
Microsoft® Windows® 10/11 IoT Enterprise
NIST Compliance
NIST-Compliant BIOS Available
Display

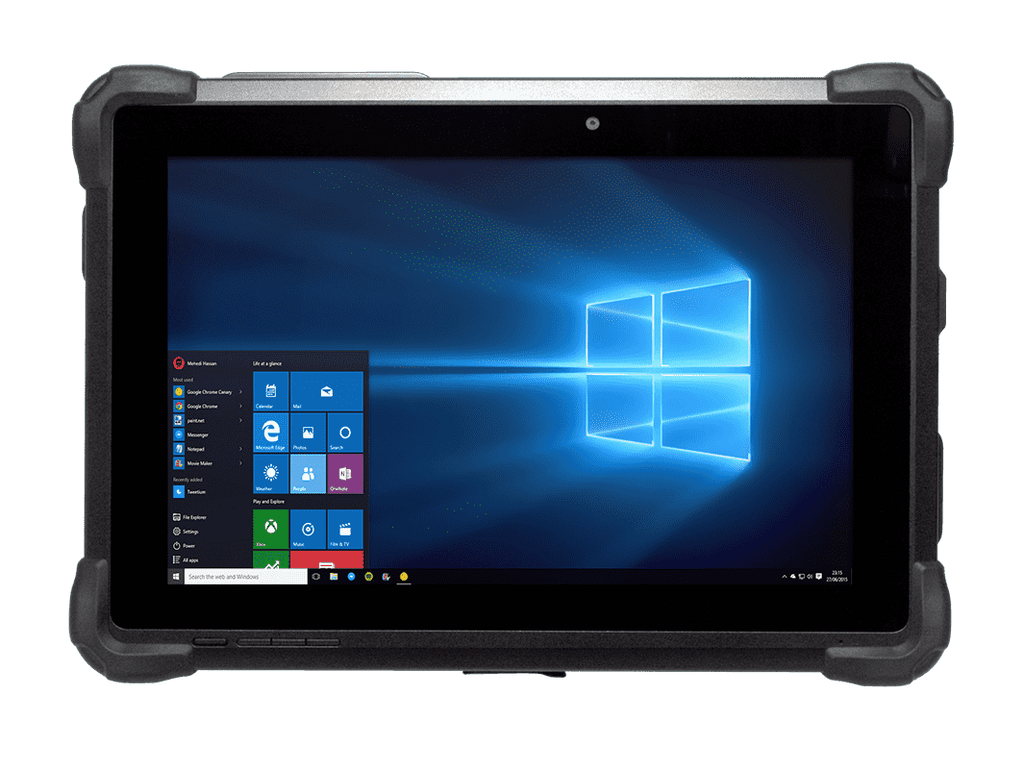

10.1” LED-Backlit, High-Brightness (800 nits) Touchscreen
Display Resolution
1920 x 1200
WLAN
Wi-Fi 802.11ax, 2.4/5 GHz Dual Band
Microphone
Built-In Microphone
Speaker
Built-In Speaker

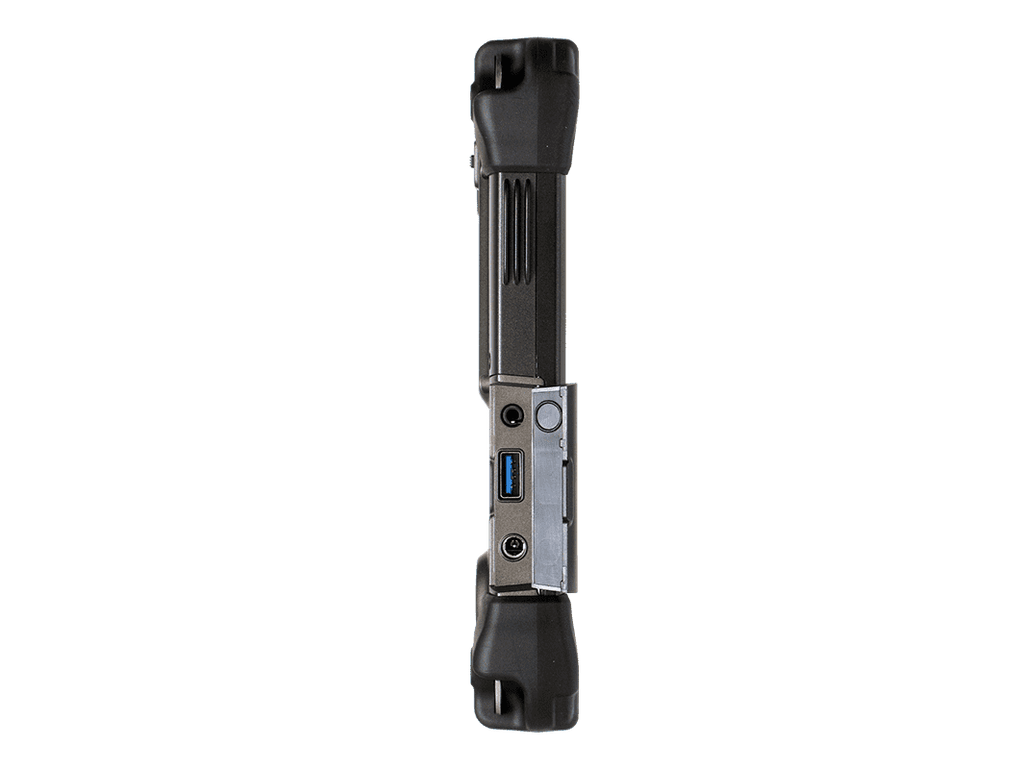

I/O INTERFACES
USB Port
1 x USB 3.0, 1 x USB Type-C
Headset Jack
1 (3.5 mm)
Ethernet Port
1 x Ethernet 10/100/1000MB Base-T LAN
DC-In
1
Smart Card/CAC Reader
Full Slot (reads ISO 7816 T=0, T=1); 1.8/3/5V Smart Card
Switches & Buttons
1 x Power Button, 2 x Brightness Buttons, 5 x Programmable Buttons
MECHANICAL AND ENVIRONMENTAL
AC/DC Adapter
Input: 100 – 240V AC; Output: 19V DC, 3.42A

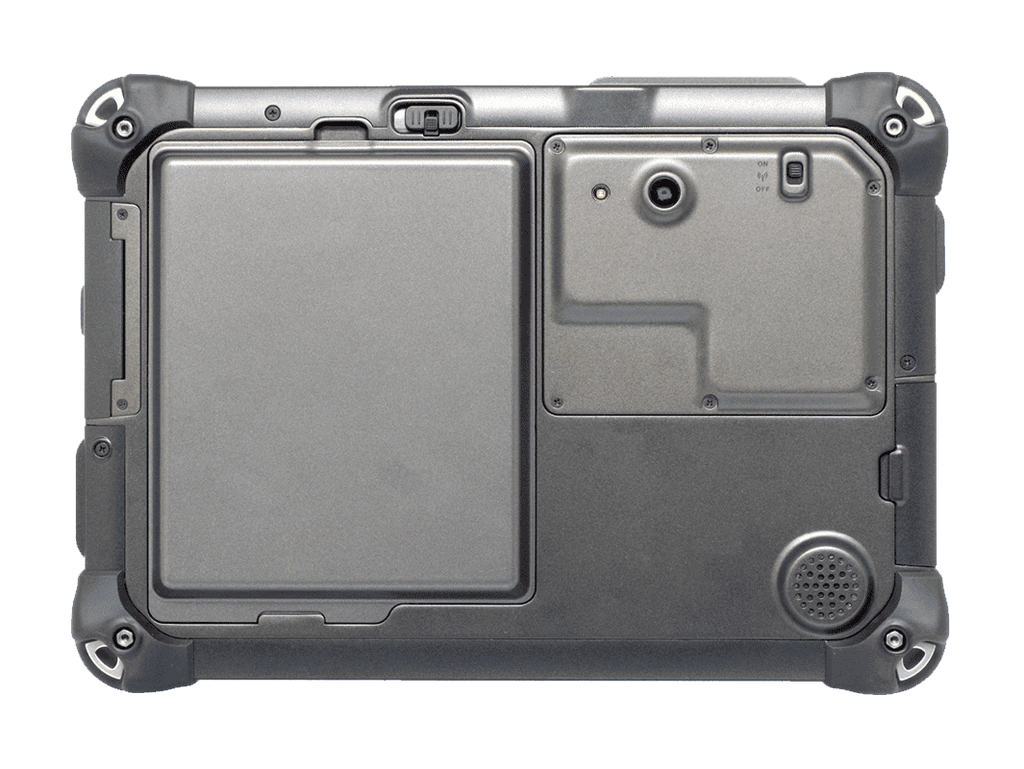

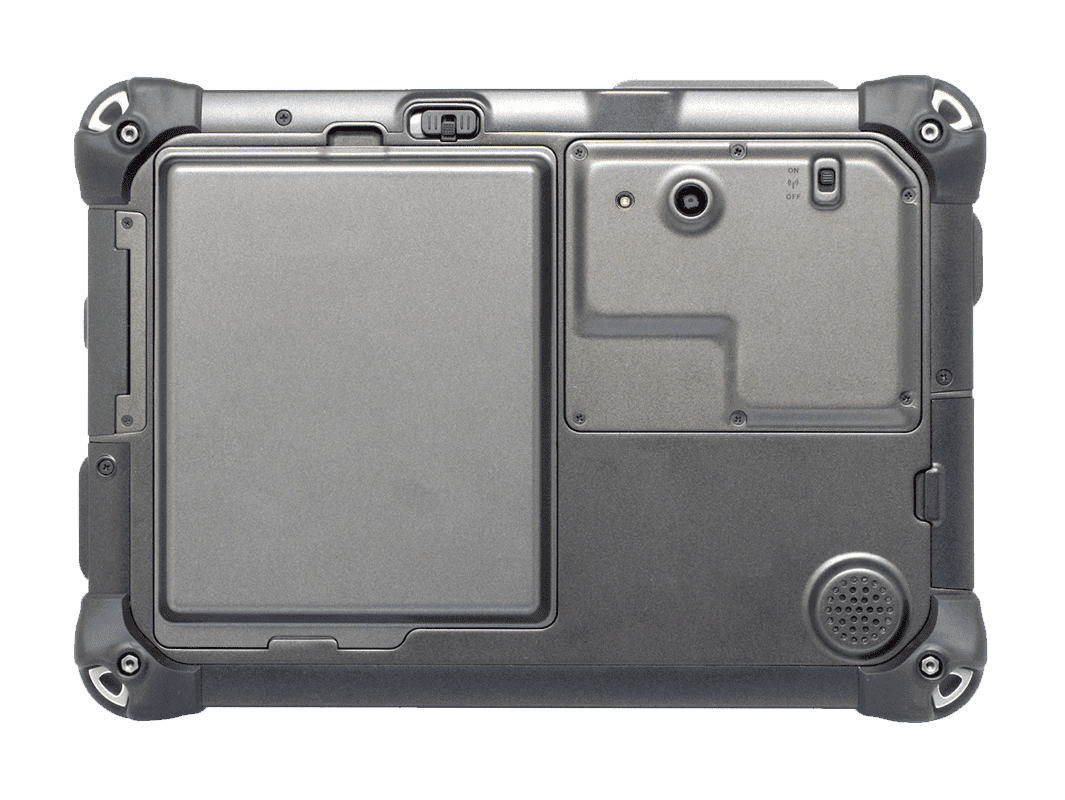

Battery Pack
Hot-Swappable Battery (11.4V, 5400mAh)
Hot-Swappable Battery (11.4V, 8000mAh)(Optional)Enclosure
ABS + PC Plastic and Magnesium-Aluminum Alloy
Dimensions (H x W x D)
7.8 x 11 x 0.86 in/198 x 280 x 21.9 mm
Weight
3.1 lbs/1.4 kg
Durability
IP65, MIL-STD-810H and MIL-STD-461F Certified
Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing
YesRegulatory
FCC Class B, CE, RoHS Compliant
Temperature
Operation*: -10°C ~ 60°C (14°F ~ 140°F)
Optional: -30°C ~ 60°C (-22°F ~ 140°F)
Storage: -55°C ~ 70°C (-67°F ~ 158°F)
*For battery safety and optimal functionality and performance, the recommended usage temperature range is -10°C ~ 45°C (14°F ~ 113°F)Humidity
0% ~ 90% Non-Condensing
MAJOR OPTIONS SPECS
BARCODE SCANNER
2D Barcode Scanner (Reads 1D & 2D)
CAMERA
2MP Front Camera & 8MP Rear Camera
UHF RFID READER
865 – 928 MHz, EPCglobal Class 1 Gen 2/ISO 18000-6C; 16 ft (4.87m) Reading Distance
LONG RANGE BT
Class 1 BT (1000 ft)
GNSS MODULE
GPS Module
MOBILE BROADBAND
4G LTE/AWS
BARCODE SCANNER
2D Barcode Scanner (Reads 1D & 2D)
CAMERA
2MP Front Camera & 8MP Rear Camera
UHF RFID READER
865 – 928 MHz, EPCglobal Class 1 Gen 2/ISO 18000-6C; 16 ft (4.87m) Reading Distance
LONG RANGE BT
Class 1 BT (1000 ft)
GNSS MODULE
GPS Module
MOBILE BROADBAND
4G LTE/AWS
