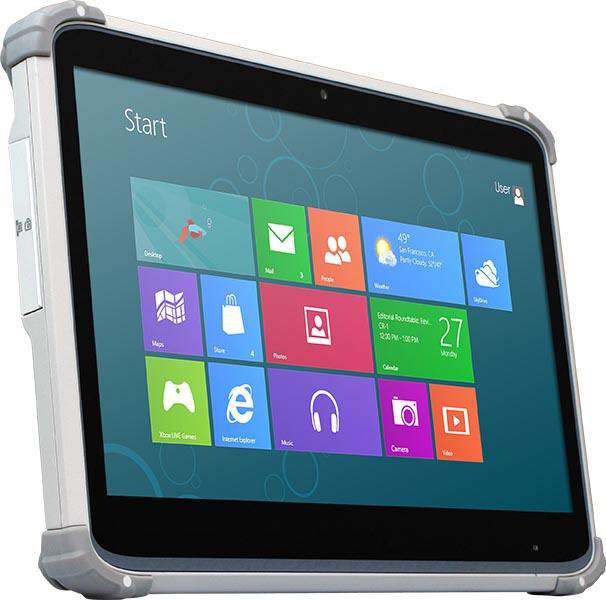

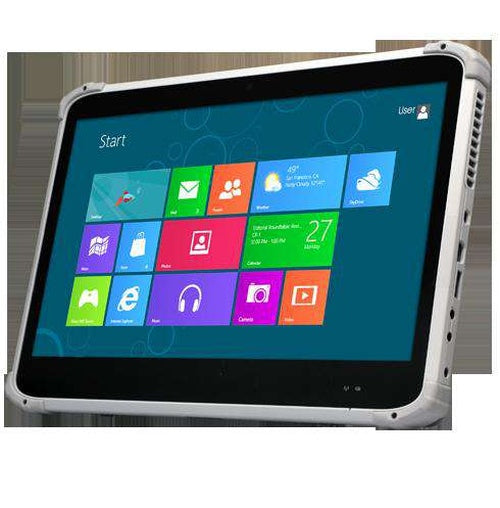

The DT313H Rugged Mobile Tablet integrates a 13.3" Full-HD capacitive touchscreen, a high-performance, energy-efficient Intel® Core™ i7 processor, and a full-slot smart card reader in a slim, lightweight, durable package. With built-in Wi-Fi and Bluetooth connectivity, as well as optional RFID reader and front and rear camera modules, this tablet enables seamless information capture for instant transmission on the sales floor, in the classroom, and in the field. With its large, vivid display, the DT313H provides a wider working area and a detailed application interface to enhance the user experience and workflow.
The rugged DT313 Tablet-PC features an IP54-rated front panel (protected against splashing and water jets) and, thanks to its rugged ABS plastic enclosure, easily withstands vibrations or drops of up to 1.5 metres.
WebDT Device Manager (WDM)
The rugged DT395 Tablet-PC comes with a free (!), powerful, web-based remote management tool
- 13.3” screen with LED backlighting and capacitive touch. Full-HD resolution with an IP54-rated front panel
- Windows® 7 Professional, Embedded 8 Standard, 8.1 Industry Pro or Win10 Industry Pro
- Intel® Core™ i7 dual core processor; high performance with low power consumption
- Built-in full-slot smart card reader
- TPM (Trusted Platform Module) 1.2 support
- Wi-Fi ac and Bluetooth 4.0 LE connectivity
- Hot-swappable batteries and vehicle-mount charging option
- Dual-monitor support via Desktop Cradle
- WebDT Device Manager Software
Areas of Use
- Mobile operation and control in industrial, manufacturing, and automation environments
- Facility Management and Home Automation
- Mobile data capture and inventory management in warehousing and logistics, and order entry (optional barcode scanner, camera ...)
- Surveys, market research, and customer surveys
- Infoterminal configuration and presentations
- Internet-based data access
- Navigation, Fleet Management
- Mobile workstation and application access (Remote Desktop, Citrix ICA, or Thin Client)
- Military applications
| Product | DT313 |
| Processor | Intel® Core™ i7, 1.8GHz |
| Display | 13,3" / 33,8 cm LED backlight |
| Resolution | 1920 x 1080 (Full-HD) |
| Touchscreen | Capacitive |
| RAM | Up to 16GB (DDR3) |
| FlashROM SD Card Slot | 32GB - 500GB Up to 64GB |
| Fan | Fanless |
| WLAN | 802.11 a/b/g/n/ac dual band |
| Operating System | Windows 7 Professional, Windows 8 Embedded Windows 8 Industry Pro Windows 10 Industry Pro |
| USB 3.0 | 1x |
| Bluetooth | 4.0 LE |
| Audio input/output | 1/1 |
| Buttons | 1x Power and Trigger Button |
| TPM | 1.2 |
| Protection Class | IP54 Front |
| Chassis | ABS + PC plastics |
| Battery Internal External | 14,8V, 1880mAh 14,8V, 1850mAh |
| Option Camera RFID Reader | 5 MP rear camera with LED flash 2 MP front camera HF 13.56MHz, ISO Standard 15693, 14443A(B) & 18000-3 mode-1 |
| Dimensions (HxWxD) | 216 x 344 x 18,9 mm |
| Weight | 1500g (incl. battery) |
| Certification | FCC Class B, CE, UL, RoHS |
| Operating Temperature | 0° - 40° C |
| Humidity | 0% - 90% Non-condensing |
