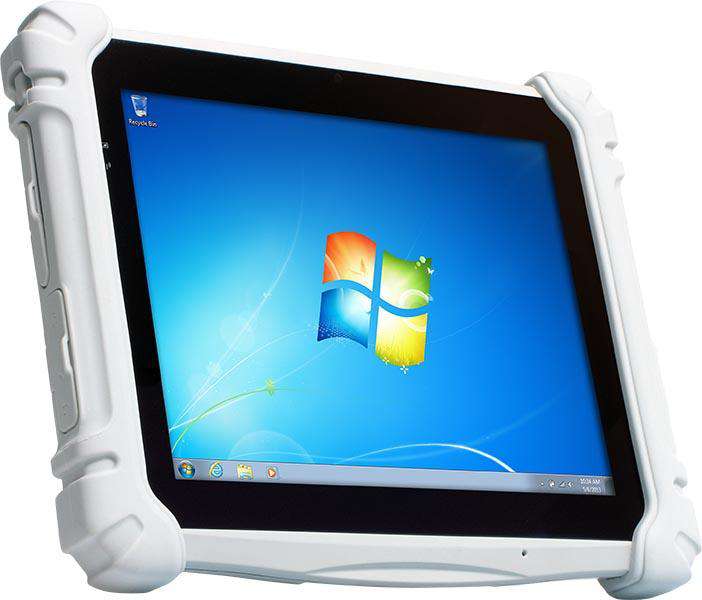

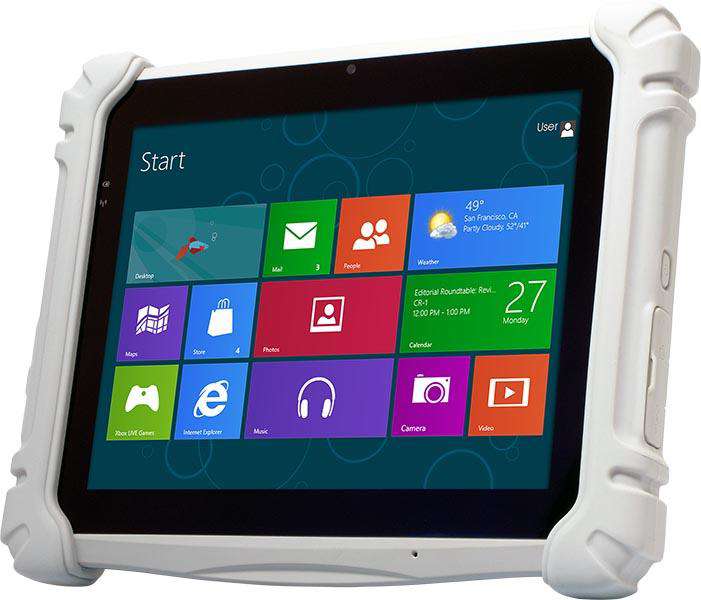

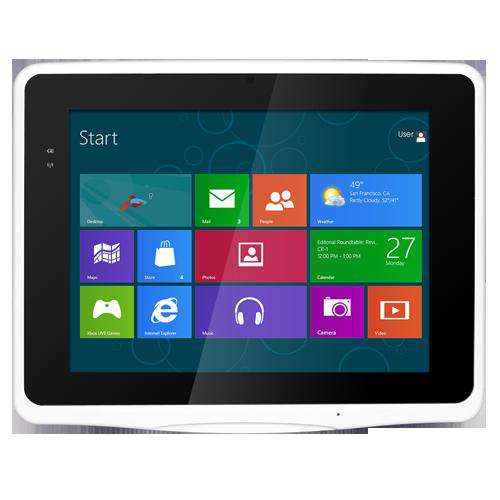

The DT315 MD features a comfortable 9,7“ inch screen, an Intel Atom Dualcore CPU running at 2x 1,86 GHz, multiple communication ports and additional data-capture options. This makes the DT315 MD an ideal tool for doctors, nursing staff and other professionals in hospitals, medical offices or care institutions. It also features an antibacterial coating and a waterproof front design. Available operating systems are Linux or Windows 7 Pro.
WebDT Device Manager (WDM)
The rugged Tablet-PC DT395 comes with a free (!), powerful, web-based remote management tool
- 9.7” LED-backlit screen with capacitive touch; outdoor display option
- Support for Microsoft® Windows® Embedded Standard 7, Windows® 7 Professional or Linux operating systems
- Intel® Atom™ dual-core processor; high performance with low power consumption
- Bluetooth and Wi-Fi connectivity
- Built-in smart card reader (half-slot); reads ISO 7816 T=0,T=1 smart cards at 1.8V/3V/5V
- TPM (Trusted Platform Module) 1.2 support
- Comprehensive remote device administration through the server-based WebDT Device Manager software
Areas of Use
- Mobile operation and control in industrial, manufacturing and automation environments
- Facility Management and Home Automation
- Mobile data capture and inventory management in warehousing and logistics, and order entry (optional barcode scanner, camera ...)
- Surveys, market research and customer surveys
- Configuring information terminals and delivering presentations
- Internet-based data access
- Navigation and fleet management
- Mobile workstation and application access (Remote Desktop, Citrix ICA or Thin Client)
- Military applications
| Product | DT315 |
| Processor | Intel® Atom™ Dual Core, 1,86 GHz |
| Display | 9,7" / 24,6 cm LED backlight |
| Resolution | 1024 x 768 (XGA) |
| Touchscreen | capacitive |
| Outdoor display | optional |
| RAM | 4GB |
| FlashROM | 8GB - 256GB |
| Fan | fanless |
| WLAN | 802.11b/g/n |
| Operating System | Windows 7 Embedded, Windows 7 Professional |
| USB 2.0 | 1x |
| Bluetooth | 3.0 |
| Audio input/output | yes/yes |
| Buttons | 1x power and trigger button |
| Trusted Platform Module | TPM 1.2 support |
| Water and Dust Resistance | IP54 front panel |
| Enclosure | ABS + PC plastics and magnesium-aluminum alloy |
| Battery internal external | 7,4V, 3760mAh 7,4V, 3760mAh |
| Dimensions (H x W x D) | 212 x 260 x 20 mm |
| Weight | 1220g (incl. battery) |
| Certification | FCC Class B, CE, UL, RoHS |
| Operating Temperature | 5° - 35° C |
| Humidity | 0% - 90% non-condensing |
- 5 megapixel camera (on the back); with LED flash, autofocus, white balance, gain control and exposure control
- Magnetic Stripe Reader (MSR); triple-track reader (ISO TK1, 2 & 3), high-performance decoding with an ultra-compact design
- 2D barcode scanner; reads both 1D and 2D barcodes, with an extremely durable integrated design for reliable operation
- WWAN/GPS; Gobi 3G module for HSPA+/WCDMA/EDGE/GPRS/GSM networks, with GPS positioning and navigation
