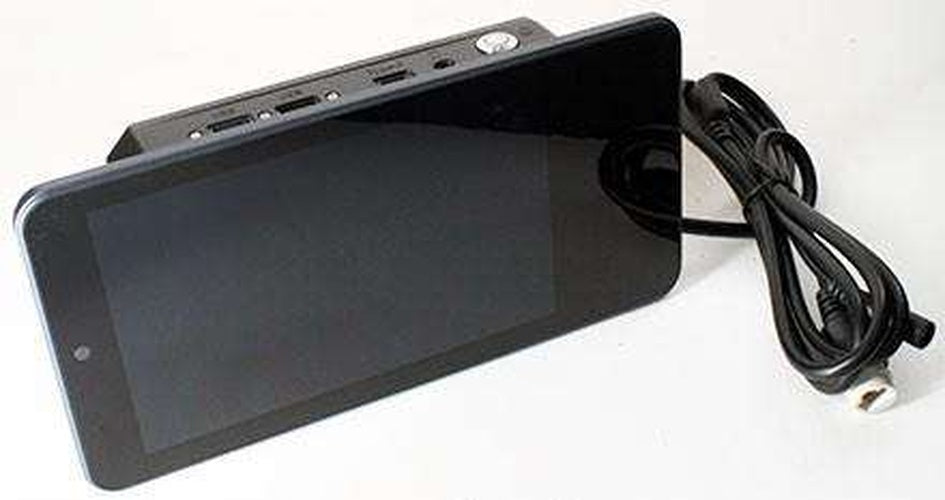

Terminal IoT 7' CTFMIOT-K70H (IP67, CPU 1.5Ghz Quad, Android 7)
Introducing the new IP67 water-resistant IoT terminal with 7 capacitive Multi Touch. The CTFMIOT-K70H features a robust, modern industrial design with high performance, making it ideal for outdoor applications. For an enhanced audio and video experience, the CTFPND-10C-4GB64GB supports high-definition (HD) content playback.
● CPU Deca-Core (10x) de 1,4 a 2,4 GHz de 64 bits, 4 GB de RAM, 64 GB de ROM!
● High-performance Tablet PC with a robust design and IP67 protection
● Drop resistance from 1M
● Dual camera (13MP / 5MP)
● Speakers for high-quality audio playback
● 7" capacitive touchscreen with 600nits brightness
● 1080p HD video playback
● Android 7 support
● GPS / WLAN / BT / 3G / 4G!
For projects covered by an NDA, the Androis-OS system build kit can be supplied, allowing you to create your own Android operating system image (for example: a custom boot logo, pre-installed applications and settings, etc...)!
| Dimensions | 226x117x8-39mm |
| Weight | 700g |
| Protection level | Vibration resistance: 1-19Hz/1.0mm; 19-200Hz/1.0g Drop resistance: MIL-STD-810G/Method 516.6/Procedure IV Water protection: Class 7 (IEC60529) Dust protection: Class 6 (IEC60529) Reliability: >50.000h MTBF |
| CPU | ARM Cortex A53 Quad-Core 4x 1.5Ghz 64bit |
| OS | Android 7 (5.1 on request) |
| Memory | 3 GB |
| Storage | 32 GB ROM EMCP |
| Memory card slot | MicroSD (max. 128GB) |
| GPS chipset | Built-in |
| Colour display | 7" TFT LCD with Multi Capacitive touchscreen (toughened glass, supports glove touch/spray/active) |
| Panel resolution and brightness | 1920x1200 industrial FHD 600nits, sunlight-readable |
| Battery type | No built-in battery Optional: external 4000mAH UPS unit |
| Speaker | Yes |
| Sensors | Motion sensor, M-sensor, acceleration sensor, G-sensor, gyroscope sensor, light sensor, rotation vector sensor |
| Cameras | 5.0 Megapixels (front) |
| Wireless interface | WLAN 802.11a/b/g/n (2.4Ghz/5Ghz) Bluetooth 2.1+EDR / 3.0+HS / 4.0 LE (A2DP+EDR) GSM/EDGE/GPRS/WAP (B2/B3/B5/B8) WCDMA [HSDPA+/HSUPA+] (B1/B2/B5/B8) TDSCDMA (B34/B39) TD-LTE (B38/B39/B40/B41) FDD LTE (B1/B2/B3/B4/B5//B7/B20) FM |

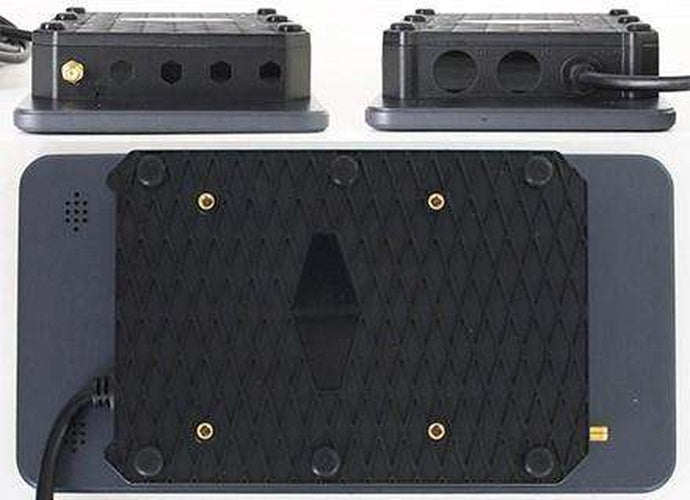

| I/O ports | USB Type-C 24pin (OTG support) 2x USB2.0 (Host) 3.5mm headphone connector with mic input Built-in microphone MicroSD reader Camera+SOS buttons SIM card slot SMA female antenna port (active) |
| Environment | Operating temperature: -20° to 70°C Storage temperature: -40° to 80°C Relative humidity: 5% to 95% Maximum operating altitude: 15,000 feet (4500 m) |
| Optional modules available (on request) | - NFC (HF/support for ISO14443A/B/ISO15693/reader/data transfer/CARD) - UHF RFID (1.5M-2M, 902-928M, 865-868M) - LF RFID (125k) - Lara (433M, 8000m max., 1W) - OBD-II (CAN2.0A/B, ISO/DIN11898, 1 channel, 400 frames/s) |

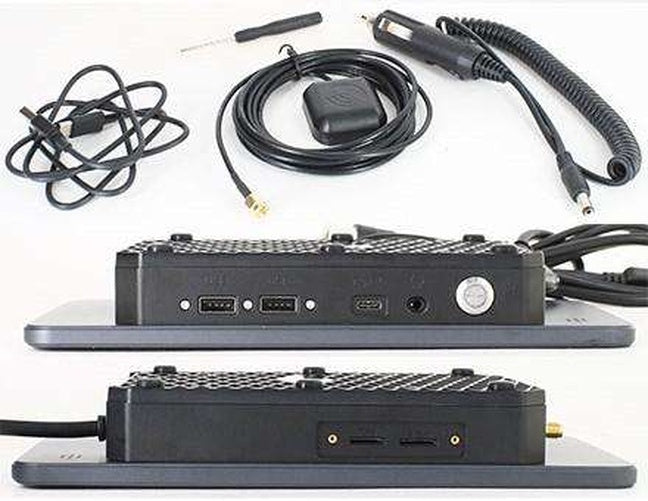

| Scope of supply | - CTFMIOT-7 Android PND - USB cable - External GPS antenna - Cigarette lighter adapter - Mini screwdriver |
● NFC (HF/support for ISO14443A/B/ISO15693/reader/data transfer/CARD)
● UHF RFID (1.5M-2M, 902-928M, 865-868M)
● LF RFID (125k)
● Lara (433M, 8000m max., 1W)
● OBD-II (CAN2.0A/B, ISO/DIN11898, 1 channel, 400 frames/s)
