959.40€
sem IVA
780.00€
Sku: MP1-11TGS-D-6305E-AC
Tipo de Produto:
PCs com expansão PCIe / PCI
Fabricante:
MiTAC

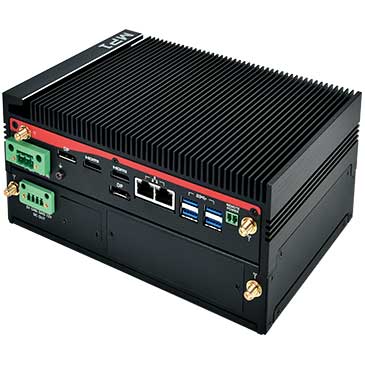

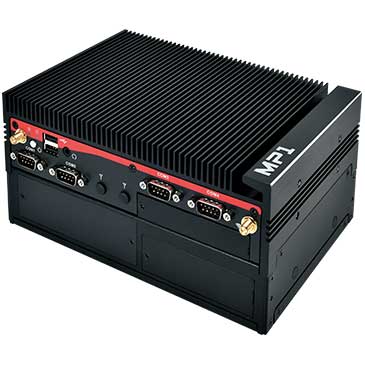

MP1-11TGS-D-6305E-AC
Embedded PC Fanless com CPU Intel® Tiger Lake-UP3 e gráficos Intel®Iris Xe
- SUporta processadores Intel® Tiger Lake-UP3 Core i7/i5/i3/Celeron ULV
- Excelente capacidade de computação gráfica com gráficos Intel®Iris Xe
- Suporta tecnologia Intel® vPro
- 1* SO-DIMM DDR4 até 32GB
- Suporta 4 monitores através de HDMI e DisplayPort
- 2* slot Hot Swappable SSD/HDD
- 2* Intel® Gigabit Ethernet (Opcional: 2* LAN adicionais)
- 2* USB 2.0, 4* USB 3.1 Gen2 e 4* COM
- Ampla entrada de energia: 12V~36V
Caraterísticas
Especificações
Downloads
Opcionais
Caraterísticas
Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors - Up to 28W
New Generation of CPU architecture
Architecture on 10nm++ Process
60% Performance improve
Work done faster
Support Core i7
Up to 4 Cores, 8 Threads, 4.4GHz Turbo Frequency, 28W TDP
Outstanding Graphic Computing Capability
Intel Iris® Xe Subvert Your Image about Built-in Graphics
- New Iris® Xe(Gen12) Graphic Engine with up to 96 EU
- 4 Independent Display Units in 4K resolution
Iris Xe iGPU brings the AI revolution
- 5X better AI performance
- AI/DL Instruction Set including VNNI (Vector Neural Network Instruction) and CV/AI applications, improves inferencing workload performance
- Intel Deep Link offers additive AI, hyper encode, dynamic power share, and common software framework for Iris Xe iGPU
5G cellular network
M.2 3042/3052 + SIM slot
- M.2 3042/3052 slot with built-in SIM slot for LTE/*5G network expansion
- Speed upgrades and lower latency
- More possibilities for deployment in different scenarios and business models
Hot Swappable HDD Drive
- Hot Swappable Design for 2.5" HDD/SSD drive with advanced hardware protection
- Easy Maintenance and Installation with only one screw
High-resolution Quadruple Display
- High resolution HDMI port and DisplayPort for different scenarios and applications
- Quadruple display for main, secondary, third, and fourth monitor can be set in clone or extension mode in operating system for multiple tasks
Advanced Power Protection
Wide Power Range
12V~36V
Protection
- Reverse Power Input Protection
- Over Voltage Protection: 44V
- Over Current Protection: 15A
- ESD Protection: +/-15kV (air), +/-8kV (contact)
- Surge Protection: 3kW
Wide Operating Temperature in Harsh Environment
MP1-11TGS-D is designed in patented aluminum enclosure not only for atheistic appearance but also for fan-less application in extreme temperature condition from -40oC to 70oC.
Extreme Shock & Vibration Resistance
Shock Resistance
Operating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
Vibration Resistance
Operating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
vPro Support (Core i5/i7)
Intel® vProTM Technology features Intel® AMT and offers a lighter-weight form of virtualization to audit all Intel® AMT-based platforms in a networked environment. It allows to remotely manage corporate PCs and retrieve assets.
Industrial-grade Design
6X longer lifespan
Different from Electrolytic Capacitors, with a service life of longevity, stability, and reliability, our server motherboards are built with Solid Capacitors.
I/O Interface
Especificações
MP1-11TGS-D (MP1-11TGS-D)
Ordering Information | |||||
| Model | Processor | AC Adaptor | Model | Processor | AC Adaptor |
|---|---|---|---|---|---|
| MP1-11TGS-D-6305E | Celeron 6305E | None | MP1-11TGS-D-1145G7E | i5-1145G7E | None |
| MP1-11TGS-D-6305E-AC | Celeron 6305E | 120W AC to DC Adaptor | MP1-11TGS-D-1145G7E-AC | i5-1145G7E | 120W AC to DC Adaptor |
| MP1-11TGS-D-1115G4E | i3-1115G4E | None | MP1-11TGS-D-1185G7E | i7-1185G7E | None |
| MP1-11TGS-D-1115G4E-AC | i3-1115G4E | 120W AC to DC Adaptor | MP1-11TGS-D-1185G7E-AC | i7-1185G7E | 120W AC to DC Adaptor |
| *5G card support is by BOM option. Please check with sales about the M.2 B Key 3052 5G card spec if you have any request | |||||
| MP1-11TGS-D (MP1-11TGS-D) Specifications | |||
|---|---|---|---|
| SYSTEM | CPU | 11st Gen Tiger Lake-UP3 Intel® Core™ i ULV Processor i3-1115G4E / (Dual Core, 6MB Cache, up to 3.90 GHz) / option: 11st Gen Tiger Lake-UP3 Celeron 6305E / i5-1145G7E / i7-1185G7E | |
| CHIPSET | Intel® SoC Integrated | ||
| SYSTEM MEMORY | DDR4 3200 MHz / 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC) | ||
| GRAPHICS | Intel® Iris Xe Graphics | ||
| DISPLAY INTERFACE | DisplayPort 1.2 / HDMI 1.4 | ||
| STORAGE SLOT | 2 x Hot Swappable 2.5 HDD / SSD (Maximum 9.5mm height) / 1 x M.2 B Key 2280/2260/2242 Slot / 1 x mSATA | ||
| ETHERNET | Intel® I219-LM Giga LAN / Intel® I225-LM 2.5GbE LAN / Additional 2 x Intel® I210-IT Giga LAN for Options | ||
| I/O CHIPSET | Nuvoton NCT6126D(eSPI) | ||
| AUDIO | Realtek® ALC256 | ||
| TPM | Nuvoton NPCT750AABYX TPM2.0 | ||
| EXPANSION SLOT | 2 x Xpansion slot (PoE/LAN/COM/DIO/IGN/CANBus Options) / Mini PCIe Full size (USB2.0 / SATAIII / PCIex1) / Wireless: M.2 2230 E key (PCIe, USB) / Storage/LTE/5G Slot: M.2 2280/2260/2242/3042/3052 B Key (USB2.0/*PCIex1/SATAIII) *Not support M.2 M Key NVMe SSD / **5G card support is by BOM option. Please check with sales about the M.2 B Key 3052 5G card spec if you have any request | ||
| INDICATOR | Power LED / HDD LED | ||

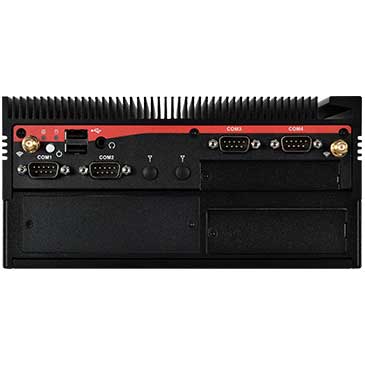

| FRONT I/O | 2 x SMA Antenna (Optional for WiFi/LTE function) / 3 x RS232 / 2 x Hot Swappable 2.5” SSD/HDD slot (Maximum 9.5mm height) / 1 x Audio Combo Jack (Mic-in and Line-out) / 2 x USB 2.0 / 1 x RS232 / 422 / 485 / HDD LED / Power Button w/ Power Indicator | ||

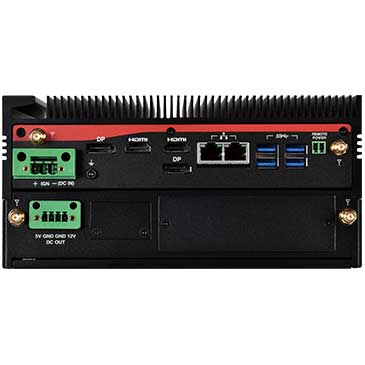

| REAR I/O | 1 x 4-pin Terminal Block Power Output (12V/5V) / 2 x DisplayPort 1.2 / 2 x HDMI 1.4 / 2 x RJ-45 / 4 x USB 3.1 Gen 2 (10 Gbps) / 1 x 3-pin Terminal Block Power Input / 1 x 2-pin Terminal Block Remote Power on / off / 4 x SMA Antenna (Optional for WiFi/LTE function) | ||
| H/W MONITOR | Temperature Monitor / Voltage Monitor | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| POWER REQUIREMENT | POWER INPUT | 12~36V Wide Range DC-in Input w/ 3-pin Terminal Block Connectivity / *Optional Xpansion Module for Power Ignition | |
| POWER ADAPTER | DC24V / 5A / AC / DC / 120W adapter (For AC SKU) | ||
| MECHANICAL | THERMAL DESIGN | Fanless | |
| MOUNTING | Wallmount / Side Mount / 75 mm x 75 mm VESA Holes & Din Rail Mount Combo Kit (Optional) | ||
| DIMENSIONS (W X D X H) | 8.3” x 5.9” x 4” (210 x 150 x 103 mm) | ||
| MATERIAL | Top cover: Aluminum Alloy / Bezel and chassis: Steel | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | 15W TDP: -40 ~ 70°C with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM) / 28W TDP: -40 ~ 60°C with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM) | |
| STORAGE TEMPERATURE | -40 ~ 85°C (-40 ~185°F) | ||
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | ||
| VIBRATION RESISTANCE | Operating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64) | ||
| SHOCK RESISTANCE | Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| CERTIFICATION | CE / FCC Class A | ||
| OS | OS SUPPORT | Windows® 10 64-bit / Linux (support by request) | |
| PACKING LIST | PACKAGE | 1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets / 1 x 3 pin Terminal Block Power Connector / 1 x 4 pin Terminal Block Male Connector / 1 x 2 pin Terminal Block Male Connector | |
Downloads
Opcionais
MS-48CDN-D10 (4* COM, 4*DI/ 4*DO)
130.00€
MS-48CDN-D10 (4x Isolated RS232/422/485, 8bit Isolated DIDO 4xDI/4xDO)
MS-04LAN-R10 (4* Intel i210-IT GLAN)
110.00€
MS-04LAN-R10 (4x Intel i210-IT Gigabit LAN) 4x Isolated RJ45 Giga LAN
MS-04LAN-M10 (4* Intel i210-IT, portas M12)
178.00€
MS-04LAN-M10 (4x Intel i210-IT Gigabit LAN, M12 ports) 4x Isolated M12 Giga LAN
MS-04POE-R10 (4* Intel i210-IT GLAN POE+)
150.00€
MS-04POE-R10 (4x Intel i210-IT Gigabit LAN POE+) 4x Isolated RJ45 PoE+
MS-04POE-M10 (4* Intel i210-IT POE+, M12)
230.00€
MS-04POE-M10 (4x Intel i210-IT Gigabit LAN POE+, M12 ports) 4x Isolated M12 PoE+
MS-26CAD-T10 (2* CANBus, 6-bit Isolated DIDO)
155.00€
MS-26CAD-T10 (2 x CANBus 2.0B and 6-bit Isolated DIDO)
MS-01IGN-S10 (CarPC 12V/24V, ON/OFF)
49.00€
MS-01IGN-S10 (Vehicle Power Ignition Card, 12V/24V, Power ON/OFF Timing Selectable
