Jetway MF05-22 (Tiger Lake-U i5-1145G7E, 2 LAN, 4 HDMI/DP, TPM 2.0)
Jetway MF05-22 (Tiger Lake-U i5-1145G7E, 2 LAN, 4 HDMI/DP, TPM 2.0)
Jetway MF05-22 (Tiger Lake-U i5-1145G7E, 2 LAN, 4 HDMI/DP, TPM 2.0)
Jetway MF05-22 (Tiger Lake-U i5-1145G7E, 2 LAN, 4 HDMI/DP, TPM 2.0)

Jetway MF05-22 (Tiger Lake-U i5-1145G7E, 2 LAN, 4 HDMI/DP, TPM 2.0)

com IVA
818.56€

sem IVA
665.50€
Sku: MF05-22
Product Type: Boards 3.5" SBC
Vendor: Jetway

MF05-22

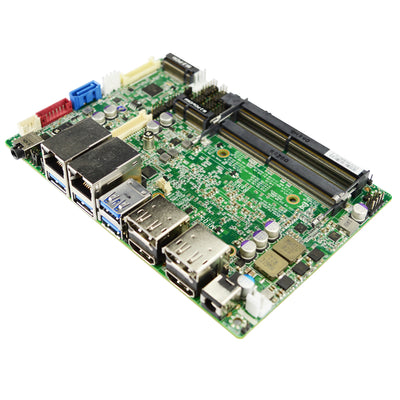

Motherboard SBC 3.5, Intel® Tiger Lake-UP3, 4* 4K HDR/ 2* 8K SDR, M.2 PCIE 4.0 NVME, 4* COM, 4* USB3.2 (Gen2), 1* 2.5GbE, 1* GbE

  • Intel® Tiger Lake-UP3 SoC Processor (TDP 12~28W)
  • 2* DDR4-3200MHz SO-DIMM up to 64GB
  • 1* Intel® i219-LM 1.0GbE, 1* Intel® i225-LM 2.5GbE
  • 2* HDMI, 2* DisplayPort, 1* eDP, 1* LVDS
  • 4* COM (COM1/COM2 support RS232/422/485), 4* USB3.2 (Gen.2), 4* USB2.0
  • 1* M.2 M-key 2242/2280, PCIe 4.0 x4 interface support NVME
  • 1* M.2 E-key 2230, USB2.0/PCIe x1 interface support CNVi
  • TPM 2.0 Onboard
Caraterísticas

The JETWAY MF05 Series is a 3.5” form factor motherboard based on the Intel® 11th Gen. Intel Tiger Lake-UP3 SoC Processors. The board supports two SO-DIMM DDR4 memory up to 64GB. Having dual integrated Intel® i219-LM GbE & i225-LM 2.5GbE controllers, the MF05 Series offers one gigabit and one 2.5 gigabit ethernet. The MF05 is Jetway’s first Intel board to support the latest PCI Express 4.0 interface on the M.2 PCIe 4.0 x4 slot for NVME solid state drive. The MF05 is also Jetway’s first Intel board to support up to four independent 4K HDR displays or two 8K SDR displays. In addition, the MF05 has internal LVDS or eDP ports for customers integrating LCD panels. The JETWAY MF05 Series is suitable for Digital Signage, Industrial PCs, Edge Computing, Factory Automation, AI and IOT Solution applications. The MF05 includes a flat aluminum heatsink for thermal dissipation allowing for easy integration into fanless systems.

● Digital Signage
● Industrial PCs
● Edge Computing
● Factory Automation
● AI Inference
● Retail Solution

Diagrama

MF05-22_diagram
Especificações

Model

– MF05-22 (i5-1145G7E Default, TPM 2.0)

Form Factor

– 3.5” (5.8-in * 4.0-in, 148 * 102mm)

Processor System

– Intel® Tiger Lake i5-1145G7E SoC Processor (TDP 12~28W) (Default)
– AMI Flash ROM BIOS

Expansion Slot

– M.2 E-key (2230) USB2.0/PCIex1 interface support CNVi

Memory

– 2* DDR4-3200 Dual Channel SO-DIMM up to 64GB total

Graphics

– Intel® HD Graphics, shared memory
– 1* eDP (Max Resolution: 4096×2304@60Hz)
– 1* LVDS (Max Resolution: 1920×1200@60Hz)
– 2* HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
– 2* DP1.4 (Max Resolution: 4096×2304@60Hz)
– Support Four independent 4K HDR Displays or Two 8K SDR Displays (DP)

Ethernet

– 1* Intel i219-LM 1.0GbE
– 1* Intel i225-LM 2.5GbE

Audio

– HD audio: Realtek ALC888S-VD2
– 3W AMP speaker

Storage

– 1* SATAIII
– M.2 M-key 2242/2280, PCIe 4.0 x4 interface, support NVME

Rear I/O

– 4* USB3.2(Gen. 2)
– 2* DP
– 2* HDMI
– 2* RJ45
– Line-out/MIC Combo
– DC-in (12-24V)

Internal I/O

– 4* USB 2.0
– 1* PS/2
– 1* LVDS / Inverter
– 1* eDP
– 4* COM (2* RS232/422/485, 2* RS232)
– 1* SATAIII
– 1* GPIO (8 bit)
– 1* Chassis intrusion
– 1* Audio header
– 1* SMBUS
– 1* AT/ATX mode jumper
– onboard TPM2.0

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

Power

DC-in 12-24V
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, LVD, RoHS, REACH

Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 10, Linux

Warranty

– 2 Years Limited Warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
