Sku: ND108T-8MD-1G8G-LVDS
Product Type:
Boards Pico-ITX
Vendor:
MiTAC

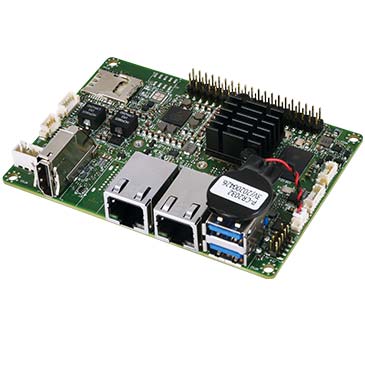

ND108T-8MD-1G8G-LVDS
Board Pico-iTX NXP® i.MX8M Cortex A53, com conector 40-pin compatível com Raspberry Pi.
- NXP® i.MX8M Dual Core & Quad Core Processor
- LPDDR4 Memory (Options for 1GB / 2GB / 4GB)
- eMMC Storage (Options for 8GB / 16GB / 32GB)
- Support up to 2 x Giga LAN
- Support up to 2 x display: 1x HDMI (4K)
- Support 1 x Mini PCIe expansion slot
- Support 1 x Raspberry Pi fully Compatible 40-pin Header
- Up to 2 x USB 3.0, 2 x USB 2.0, 1 x COM port (x RS232/422/485) 12V DC Power Input
Caraterísticas
Especificações
Downloads
Caraterísticas
ND108T
Pico-iTX Form Factor
NXP® i.MX8M Family
Block Diagram
Especificações
ND108T (ND108T)
Ordering Information | ||||||
| Model | Processor | DDR4 | eMMC | Display | LAN | COM Port |
|---|---|---|---|---|---|---|
| ND108T-8MD-1G8G-LVDS | I.MX8M Dual Core | 1 GB | 8 GB | HDMI + LVDS | 1 | 0 |
| ND108T-8MD-2G16G-LVDS | I.MX8M Dual Core | 2 GB | 16 GB | HDMI + LVDS | 1 | 0 |
| ND108T-8MQ-4G32G-LVDS | I.MX8M Quad Core | 4 GB | 32 GB | HDMI + LVDS | 2 | 1 |
Optional Development Kit | ||||||
| Optional Kit | Specification | |||||
| DC-in Cable | Terminal Block 3pin, Cable Length: 150mm | |||||
| USB OTG Programming Cable | Micro USB Connector, Cable Length: 500mm | |||||
| I/O Board | I/O Board (Power Button, COM x1, USB2.0 x1) + Cable to Motherboard | |||||
| UART Debugging Kit | Debugging Board + Cable to Motherboard | |||||
| ND108T (ND108T) Specifications | |||
|---|---|---|---|
| MECHANICAL | FORM FACTOR | Pico-iTX 2.5" SBC: 3.94" x 2.84" (100 mm x 72 mm) | |
| SYSTEM | PROCESSOR | NXP® i.MX8M Family: / 8M Quad (4 x Cortex-A53 @ 1.3GHz) / 8M Dual (2 x Cortex-A53 @ 1.3GHz) | |
| CHIPSET | i.MX8M SoC Integrated | ||
| SYSTEM MEMORY | LPDDR4 Onboard Memory with Options: 1GB (1200MHz), 2GB (1600MHz), 4GB (1600MHz) | ||
| GRAPHICS | I.MX8 Integrated | ||
| ETHERNET | 1 x Realtek® RTL8111H Giga LAN / 1 x Realtek® RTL8211FD Giga LAN | ||
| I/O CHIPSET | Nuvoton NCT6683D | ||
| AUDIO | Realtek® ALC5660 | ||
| EXPANSION SLOT | Mini PCIe Full / Half size (PCIe / USB) | ||
| STORAGE | Onboard eMMC with Options for 8GB / 16GB / 32GB | ||
| WATCHDOG TIMER | Yes | ||
| GRAPHICS | VGA | - | |
| DVI | - | ||
| HDMI | Up to 4K (4096 x 2160) @60 Hz | ||
| DISPLAYPORT | Up to FHD (1920 x 1080)@60 Hz | ||
| LVDS | Up to FHD (1920 x 1080)@60 Hz | ||
| eDP (Option) | - | ||
| REAR I/O | USB | 2 x USB 3.0 | |
| DISPLAY I/O | 1 x HDMI 2.0 | ||
| AUDIO I/O | - | ||
| LAN I/O | 2 x RJ-45 | ||
| SERIAL PORT | - | ||
| PS/2 PORT | - | ||
| OTHERS | - | ||
| INTERNAL CONNECTORS | STORAGE | 1 x Micro-SIM or Micro SD combo card slot | |
| USB | 1 x USB 2.0 Port Header / 1 x USB 2.0 OTG port Header | ||
| DISPLAY I/O | 1 x Backlight Connector / 1 x LVDS / 1 x LCD PWR Selection Header | ||
| AUDIO I/O | 1 x Audio Header (Mic-in & Line-out) | ||
| SERIAL PORT | 1 x RS232 / 422 / 485 | ||
| GPIO | - | ||
| FAN | 1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header | ||
| POWER | 1 x 8-pin ATX Power Connector / 1 x 24-pin ATX Power Connector / 1 x AT / ATX Mode Select Jumper | ||
| OTHERS | 1 x 40-pin General Purpose Header (Fully Compatible with Raspberry Pi 40-pin Header) *Raspberry Pi is a trademark of the Raspberry Pi Foundation | ||
| POWER REQUIREMENT | POWER INPUT | DC-in 12V (4-pin Power Connector) | |
| ENVIRONMENTAL | OPERATING TEMPERATURE | -10°C~65°C (14~149°F) | |
| STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) | ||
| OPERATING HUMIDITY | 10% ~ 95% R/H (Non-condensing) | ||
| CERTIFICATION | CE / FCC Class B | ||
| OS | OS SUPPORT | Yocto Sumo (Kernel version 4.14.98) BSP Support / Android 9 Pie (Kernel version 4.14.98) BSP Support / (Remark: Android is suggested for 2G or 4G memory MB SKU) | |
| PACKING LIST | PACKAGE | 1 x Motherboard / 1 x Quick Installation Guide | |
