com IVA
264.45€

sem IVA
215.00€
Sku: JR3399X-2C
Product Type: Boards 3.5" SBC
Vendor: Jetway

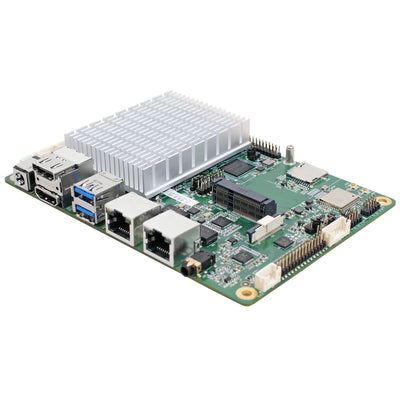

JR3399X-2C

Motherboard SBC 3.5, ARM Cortex A72 (Dual Core) + Cortex A53 (Quad Core) RK3399 6 core 2.0GHz

  • Rockchip® ARM Cortex A72 (Dual Core) + Cortex A53 (Quad Core) RK3399 6 core 2.0GHz
  • On board 1333/2GB DDR3L DRAM, On board 16G Flash ROM (Max. 64GB)
  • Support WIFI and Blue Tooth
  • 3* UART, 1* RS232, 2* USB3.0, 6*USB2.0, 1* OTG (Co-lay USB3.0), 1* HDMI2.0, 1* eDP, 1* 24-bits Dual CH LVDS, 1* Micro SD
  • Support 4K H.264/H.265 video decoding, up to 60fp 10bits coding
  • Support 1080P H.264 format video encoding
  • Support HDMI-in
  • Support Android 7.1, Debian9.0
Caraterísticas

Diagrama

JR3399X-2C_diagram
JR3399X-2C_diagram_back
Especificações

Model

Model

– JR3399X-2C

Part Number

– JR3399X-2C

 Form Factor

Dimensions

– 102 * 146mm

 Processor System

Processor/CPU

– Rockchip® ARM Cortex A72 (Dual Core) + Cortex A53 (Quad Core) 2.0GHz
– Rockchip® RK808-D PMU

 Memory

DRAM

– Onboard DDR3L 1333MHz 2GB

 Expansion Slot

Dimensions

– 1* Micro SD
– 1* Mini PCIe (USB interface)
– 1* SIM Card Socket

 Graphics

Graphics

– Mali T860MP4 GPU, OpenGL ES1.1/2.0/3.0, OpenCL1.2, DirectX11.1
– 1* HDMI (Max Resolution: 3840×2160@60Hz)
– 1* LVDS (Max Resolution: 1920×1080@60Hz)
– 1* eDP (Max Resolution: 4096×2304@60Hz)
– Support Third Displays

 Ethernet

Ethernet

– 1* Realtek RTL8211E GbE
– 1* Realtek RTL8152B-VB-CG 10/100Mbps

Wifi

– 1* AMPAK AP6356S 802.11 a/b/g/n/ac 2.4/5G WIFI and BT-V4.1

 Audio

Audio

– 2 channel HD audio: ALC5640

 Storage

Storage

– 16GB Flash ROM (Max 64GB)

 I/O Port

Rear I/O

– 1* DC Jack (12V)
– 2* USB3.0 (Co-lay OTG)
– 1* HDMI-in +1* HDMI-out
– 1* Audio (Line-out +MIC)
– 2* RJ45

Internal I/O

– 6* USB2.0
– 3* UART, 1* RS232, 1* Debug
– 1* LVDS / Inverter
– 1* eDP
– 1* MIPI CSI
– 1* Speaker (3W AMP)
– 1* GPIO (8 bit)
– 1* I2C
– 1* Power BT (Header)
– 1* Reset BT (Header)
– 1* CPU FAN (Header)

 Watchdog Timer

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments(0~255 sec)

 Power

Power

12V DC-in(PWR Con)
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

 Compliance

Certifications

– CE, FCC, LVD, RoHS, REACH

 Environment

Temperature

– Operating: -10°C ~ 60°C

– Storage: -20°C ~ 70°C

 Warranty

Warranty

– 2 Years Limited Warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
