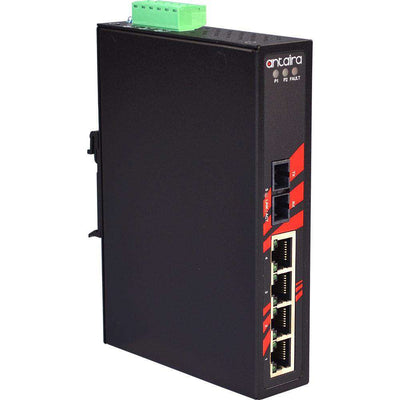

Antaira’s LNX-0501 series switches are smart 5-port Industrial Unmanaged Ethernet Switches supporting 4-Port 10/100Tx Fast Ethernet and 1-Port 100Fx of SC or ST type connector and support Multi-mode in 2Km, or Single-mode in 30Km.
The LNX-0501 series switches support 12~48VDC power inputs. This series of switches offers an Extended Operating Temperature model (w/-T) which supports -40°C ~ 75°C. It supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network.
In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.
| Ambient Relative Humidity | 5 to 95%, (non-condensing) |
| Certifications | FCC, CE, UL 508, Class 1 Div 2 |
| Certifications | FCC, CE, UL508 |
| Dimensions | 30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.) |
| EMI | FCC Class A |
| EMS | EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8 EN6100-6-2; EN6100-6-4 |
| Fiber Port | 1*100Fx SC type connector Single-mode (30Km) - 9/125um ~ 10/125um |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Free Fall / Shock / Vibration | Vibration IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6 |
| Green | RoHS Compliant |
| Housing | Metal, IP30 protection |
| Input Voltage | 12~48VDC, Redundant Input |
| Mounting | DIN-Rail mounting, wall mounting (optional) |
| Operating Temperature | EOT: -40° to 75° C (-40° to 167° F) |
| Overload Current Protection | Slow-Blown Fuse |
| Power Consumption | 6.5 Watts |
| PROCESSING TYPE | Store and Forward |
| Reverse Polarity Protection | Yes |
| Ethernet Port | 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode. |
| Shock | IEC60068-2-27 |
| Standards | EEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet. |
| Standards | IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet. |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Switching Architecture | Back-Plane (Switching Fabric): 1.0Gbps Packet Throughput Ability (Full-Duplex): 1.488Mpps @ 64bytes |
| Transfer Rate | 14,880pps for Ethernet Port 148,800pps for Fast Ethernet Port |
| Vibration | IEC60068-2-6 |
| Warranty | 5 Years |
| Wavelength | 1310nm (Single-mode) |
| Weight | Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs |
