Switch LNX-0702G-SFP-T (5*10/100/1000Tx + 2*100/1000 SFP)

com IVA
408.36€

sem IVA
332.00€
Sku: LNX-0702G-SFP-T
Product Type: Switches Não-Gerenciáveis
Vendor: Antaira

LNX-0702G-SFP-T

    Especificações

    • 5*10/100/1000Tx Fast Ethernet Ports & 2*100/1000 SFP Slot
    • Supports Auto MDI/MDI-X Function
    • Store-and-Forward Switching Architecture
    • 14Gbps Back-Plane (Switching Fabric)
    • 8K MAC Address Table
    • 9.6Kbytes Jumbo Frame Support
    • Surge Protection: 2,000 VDC Support
    • ESD Protection: 6,000 VDC Support
    • Redundant Power Input Design: 12~48VDC
    • Built-in 1 relay output for Power Failure Detection
    • IP30 Rugged Metal Case Design
    • DIN-Rail and Wall Mount Support
    • Operating Temperature Range - STD: -40° to 75° C
    • 5-Year Warranty

    Descrição

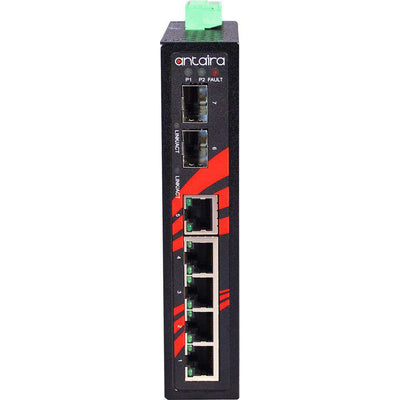

    Antaira’s LNX-0702G-SFP-T industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. The unit is designed with five gigabit Ethernet ports and two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. The LNX-0702G-SFP-T provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur.

    The LNX-0702G-SFP-T has an extended operating temperature range of -40 to 75°C. It is a perfectly designed product to fulfill special needs for industrial automation, outdoor applications, and harsh weather environments.



    Características

    Dimensions 30mm (W) x 99mm (D) x 142mm (H)
    Ethernet Port 5*10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection;
    Input Voltage 12~48VDC, Redundant Input (w/ 1 * removable 6-contact terminal block)
    Operating Temperature -40° to 75° C
    Storage Temperature -40°C ~ 85°C
    Power Consumption 9.1 Watts
