• Intel® Core™ 6/ 7 Geração, C236
  • DDR4 SODIMM até 32GB
  • Duplo display: 2x HDMI
  • 2x Mini PICe + PCIe x1 + PCIe x16
  • 12~24 VDC
com IVA
1,368.20€

sem IVA
1,112.36€
Sku: BOXER-6841M-A4-1010
Product Type: PCs Visão Artificial
Vendor: AAEON

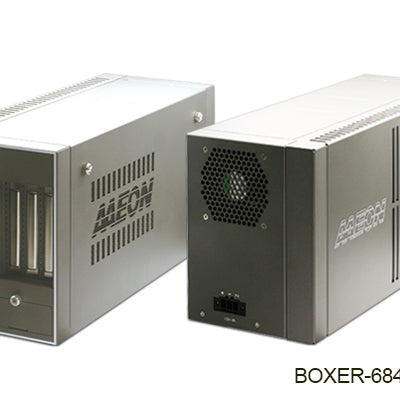

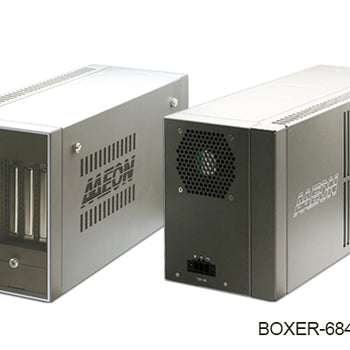

BOXER-6841M-A4-1010

Sistema AI Fanless com processadores de 6ª e 7ª geração

  • Support 6th / 7th Core-i desktop processor, Max 65W
  • Support Xeon® server-grade processor, Max 73W
  • Intel® H110 PCH, C236 PCH
  • Easy Installation design for expand slot
  • Support PCIe [x16] x1, PCIe [x8]x2, PCIe [x1] x1
  • Support up to max 250W Graphic Card
  • Fanless System or System Fan with PWM function
Caraterísticas

O Boxer-6841M foi concebido para aplicativos AI@Edge e Machine Vision.

Modelos diferentes apresentam slots PCIe (x16) para GPUs NVIDIA, perfeito para aplicativos AI@Edge, ou slots PCIe (x8) para placas frame grabber. Os utilizadores também podem escolher entre Intel® Celeron ou CPUs Xeon de alto desempenho.

Para atender aos requisitos de energia das GPUs de alto nível, o Boxer-6841M incorpora um recurso de design inteligente: duas entradas de 12VDC. Esse recurso reduz os custos e torna o sistema mais estável, reduzindo o nível de calor desperdiçado.

O Boxer-6841M também é fabricado com vários recursos de AI@Edge, incluindo cinco chips Intel® LAN, duplo HDD amovível e duplo slot mSATA.

Especificações

Specifications [BOXER-6841M]

SYSTEM
CPU 6th / 7th Generation Intel® Core™-i desktop Processor
-Intel® Core™ i7-6700TE, 2.4 GHz
-Intel® Core™ i5-6500TE, 2.3 GHz
-Intel® Core™ i3-6100TE, 2.7 GHz
-Intel® Core™ i7-7700, 3.6 GHz
-Intel® Core™ i7-7700T, 2.9 GHz
-Intel® Core™ i3-7101TE, 3.4 GHz
-Intel® Xeon® E3-1268L v5, 2.40 GHz
-Intel® Xeon® E3-1275 v6, 3.80 GHz
CHIPSET Intel® H110 PCH / C236 PCH
SYSTEM MEMORY DDR4 ECC or Non-ECC SODIMM, up to 32GB
DISPLAY INTERFACE HDMI type A x 2 for HDMI v1.4b
VGA x1 for A6
STORAGE DEVICE 2.5" Drive Bay x 2
ETHERNET RJ-45 x 5 for GbE (Intel i211AT x 4, i219LM x 1)
I/O 2 pin Remote Power on/off connector
Power ON/OFF Switch x 1
HDMI 1.4b x 2
Audio x 2 (MIC-in, Line-out)
USB 3.2 Gen 1 x 4
DB-9 x 1 for RS-232/422/485
3 pin DC Power input x 1 (+, - , GND)
EXPANSION A1/A3:
-Full-size Mini card x 2 (USB, w/ 1 SIM slot)
-PCIe[x1] x 1
-PCIe[x16] x 1
.Power Consumption of GPU card max. 180W
.Max. size of GPU card 312 x 113 x 40 mm
-(Option) Max. size of GPU card 312 x 113 x 60 mm (Riser Card: 9697T50300)

A2/A4:
-Full-size Mini card x 2 (USB, w/ 1 SIM slot)
-PCIe[x1] x 1
-PCIe[x16] x 1
.Power Consumption of GPU card max. 250W
.Max. size of GPU card 312 x 113 x 40 mm
-(Option) Max. size of GPU card 312 x 113 x 60 mm (Riser Card: 9697T50300)

A5/A6:
-Full-size Mini card x 2 (USB, w/ 1 SIM slot)
-PCIe [x8] x 2
.Extension card size limit: 114.55mm(H) x 192mm (L)
-PCIe [x1][x1] x 1
-PCIe[x16] x 1
.Power Consumption of GPU card max. 180W
.Max. size of GPU card 190 x 113 x 40 mm
-(Option) Max. size of GPU card 190 x 113 x 60 mm (Riser Card: 9697T50300)
INDICATOR Power LED x 1, HDD active LED x 1
OS SUPPORT Skylake S
Windows® 10, Windows® 10 IoT, Windows® 8 .1, Windows® Embedded Standard 8, Windows® 7, Windows® Embedded Standard 7, Ubuntu 16.04.2

Kabylake
Windows® 10, Windows® 10 IoT, Ubuntu 16.04.2
POWER SUPPLY
POWER REQUIREMENT A1/A3
DC-In 12~24V
(H110 PCH)
- CPU < 65W, No Graphic Card: 120W Adater
- CPU ≤ 65W, 180W Graphic Card: 330W Adapter
(C236 PCH)
- CPU < 73W, No Graphic Card: 120W Adater
- CPU ≤ 73W, 180W Graphic Card: 330W Adapter

A2/A4
DC-In 12~24V
(H110 PCH)
- CPU < 65W, No Graphic Card: 120W Adapter
- CPU ≤ 65W, 180W < Graphic Card < 250W: 240W Adapter x 2
(C236 PCH)
- CPU < 73W, No Graphic Card: 120W Adapter
- CPU ≤ 73W, 180W < Graphic Card < 250W: 240W Adapter x 2

A5~A6
DC-In 12~24V
- CPU = 35W: 120W Adapter
- 35W < CPU ≤ 73W: 240W Adapter

A7
DC-In 12~24V
- CPU < 73W, No Graphic Card: 120W Adapter
- CPU ≤ 73W, 180W Graphic Card: 330W Adapter
MECHANICAL
MOUNTING Wallmount
DIMENSIONS (W X H X D) A1~A4 : 6.10” x 7.87” x 15.75” (155mm x 200mm x 400mm)
A5~A7 : 6.10” x 7.87” x 10.24” (155mm x 200mm x 260mm)
GROSS WEIGHT A1~A4: 18.29 lb ( 8.3 Kg)
A5~A7: 12.75 lb (5.8 kg)
NET WEIGHT A1~A4: 14.53 lb ( 7 Kg)
A5~A7: 9.9 lb (4.5 Kg)
ENVIRONMENTAL
OPERATING TEMPERATURE A1/A2:
-4°F ~ 131°F (-20°C ~ 55°C) according to IEC60068-2 with 0.5m/s airflow (TDP 35W Processor)

A3/A4/A5/A6/A7:
-4°F ~131°F (-20°C ~ 55°C) according to IEC60068-2 with 0.5m/s airflow (TDP 35W Processor)
-4°F ~113°F (-20°C ~ 45°C) according to IEC60068-2 with 0.5m/s airflow (TDP 73W Processor)
STORAGE TEMPERATURE -4°F ~ 176°F (-40°C ~ 80°C)
STORAGE HUMIDITY 5 ~ 95% @ 40C, non-condensing
ANTI-VIBRATION Random, 1Grms, 5~500Hz, Anti-vibration design
ANTI-SHOCK -
CERTIFICATION CE/FCC class A



Ordering Information [BOXER-6841M]

PART NUMBER BOXER-6841M-A1-1010 BOXER-6841M-A2-1010 BOXER-6841M-A3-1010 BOXER-6841M-A4-1010 BOXER-6841M-A5-1010 BOXER-6841M-A6-1010 BOXER-6841M-A7-1010
CPU
PCH H110 H110 C236 C236 C236 C236 C236
LAN 5 5 5 5 5 5 5
USB USB 3.2 Gen 1 x 4 USB 3.2 Gen 1 x 4 USB 3.2 Gen 1 x 4 USB 3.2 Gen 1 x 4 USB 3.2 Gen 1 x 4 USB 3.2 Gen 1 x 4 USB 3.2 Gen 1 x 4
RS-232/422/485 1 1 1 1 1 1 1
RS-232 4
DIGITAL I/O
AUDIO MIC-in, Line- out MIC-in, Line-out MIC-in, Line-out MIC-in, Line-out MIC-in, Line-out MIC-in, Line-out MIC-in, Line-out
STORAGE 2.5" Drive Bay x2 2.5" Drive Bay x 2 2.5" Drive Bay x 2 2.5" Drive Bay x 2 2.5" Drive Bay x 2 2.5" Drive Bay x2 2.5" Drive Bay x2
DISPLAY HDMI x2 HDMI x2 HDMI x2 HDMI x2 HDMI x2 HDMI x2, VGA x1 HDMI x2
EXPANSION Full-size Minicard x2, PCIe[x16] x1, PCIe[x1]x1 Full-size Minicard x2, PCIe[x16] x1, PCIe[x1]x1 Full-size Minicard x2, PCIe[x16] x1, PCIe[x1]x1 Full-size Minicard x2, PCIe[x16] x1, PCIe[x1]x1 Full-size Minicard x2, PCIe[x8] x2, PCIe[x1]x1 Full-size Minicard x2, PCIe[x8] x2, PCIe[x1]x1 Full-size Minicard x2, PCIe[x16] x 1, PCIe[x1] x 1
MOUNTING Wallmount Wallmount Wallmount Wallmount Wallmount Wallmount Wallmount
POWER DC12~24V
CPU < 65W, No Graphic Card: 120W Adapter
CPU ≤ 65W, 180W Graphic Card: 330W Adapter
DC-In 12~24V For System power, 12V only for Graphic Card
- CPU < 65W, No Graphic Card: 120W Adapter
- CPU ≤ 65W, 180W < Graphic Card < 250W: 240W Adapter x 2
DC-In 12~24V
CPU < 73W, No Graphic Card: 120W Adapter
CPU ≤ 73W, 180W Graphic Card: 330W Adapter
DC-In 12~24V For System Power, 12V only for Graphic Card
CPU < 73W, No Graphic Card: 120W Adapter
CPU ≤ 73W, 250W Graphic Card: 240W Adapter x 2
DC-In 12~24V
CPU = 35W: 120W Adapter
35W < CPU ≤ 73W: 240W Adapter
DC-In 12~24V
- CPU = 35W: 120W Adapter
- 35W < CPU ≤ 73W: 240W Adapter
DC-In 12~24V
CPU < 73W, No Graphic Card: 120W Adapter
CPU ≤ 73W, 180W Graphic Card: 330W Adapter
OPERATION TEMP -20°C ~ 55°C with 0.5m/s airflow (TDP 35W Processor)
-20°C ~ 45°C with 0.5m/s airflow (TDP 65W Processor)
-20°C ~ 55°C with 0.5m/s airflow (TDP 35W Processor)
-20°C ~ 45°C with 0.5m/s airflow (TDP 65W Processor)
-20°C ~ 55°C with 0.5m/s airflow (TDP 35W Processor)
-20°C ~ 45°C with 0.5m/s airflow (TDP 73W Processor)
-20°C ~ 55°C with 0.5m/s airflow (TDP 35W Processor)
-20°C ~ 45°C with 0.5m/s airflow (TDP 73W Processor)
-20°C ~ 55°C with 0.5m/s airflow (TDP 35W Processor)
-20°C ~ 45°C with 0.5m/s airflow (TDP 73W Processor)
-20°C ~ 55°C with 0.5m/s airflow (TDP 35W Processor)
-20°C ~ 45°C with 0.5m/s airflow (TDP 73W Processor)
-20°C ~ 55°C with 0.5m/s airflow (TDP 35W Processor)
-20°C ~ 45°C with 0.5m/s airflow (TDP 73W Processor)
Incluído
  • Wallmount Bracket x 2
  • 3 Pin DC-in Power Connector x 1
  • Screw Package x 1
  • Thermal Pad Package x 1
  • BOXER-6841M
Opcionais
1255901209 120W Power Adapter
1255902400 240W Power Adapter (For A2, A4, A5, A6 only)
1255903300 330W Power Adapter (For A1, A3, A7 only)
1702031802 Power Cord (US type)
1702031803 Power Cord (European Type)
170203180E Power Cord (Japanese Type)
9741238H00 WiFi Module & Antenna
9741EG25G0 4G Module & Antenna (for global)
9741EC25A0 4G Module & Antenna (for USA-AT&T)
9741EC25V0 4G Module & Antenna (for USA-Verizon)
M046841140 Main heatsink cover (For A5~A7 Heatsink Cover)
9697T50300 Riser Card with PCIe [x16] x 1, max. size of GPU card 312 /190mm x 113mm x 60mm (For A1~A4 & A7)
