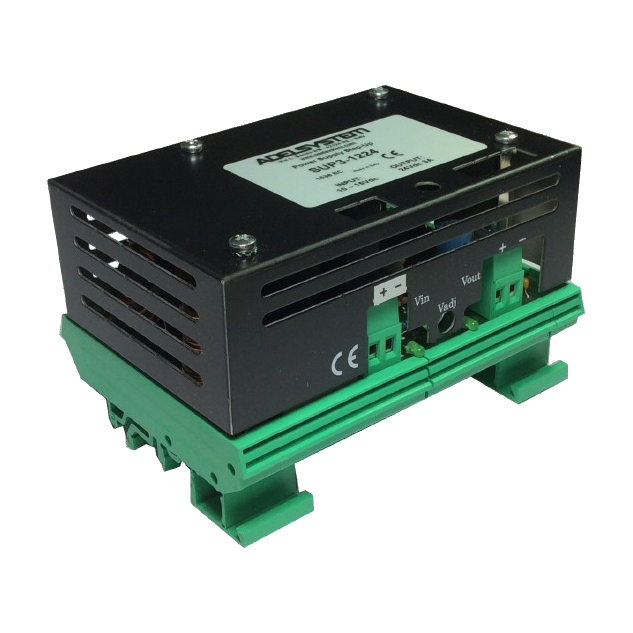

DC/DC Converter SUP3-1224 (In 12V - Out 24V 3A)
Price excludes VAT
202.88€
Sale price
Price excludes VAT
202.88€
Regular price
Total with VAT (23%): 249.54€
Shipping calculated at checkout.
SUP3-1224
DC/DC converter Input 10- 15V, Output 24V 3A não isolado
- Single-phase input: 12V
- Output: 24Vdc, 3A
- Short-circuit protection
- Low Cost
- Temperature: 0 - 50º C
- IP20
SUP
Main characteristics:
- Input voltage: 12Vdc
- Output current: 24 - 30 - 40 - 48 - 60 Vdc
- Output: 3 A ÷ 6 A
- Adjustable output: - 10%
- Temperature range: 0 - 50 degrees Celsius
- IP20
The STEP-UP range of low-voltage power supplies/converters is suitable for producing voltages higher than the input voltage. These units are normally used for currents of 3-6A in applications where a nominal input voltage of 12Vdc is converted into a higher output voltage, for example, to connect a 12Vdc battery and then power a 24Vdc PLC. STEP-UP units use switch-mode technology, can be mounted on a DIN rail, and provide short-circuit and output-overload protection. Designed for industrial and automotive applications, they are particularly reliable, robust, easy to use, and compliant with the latest regulatory standards.
