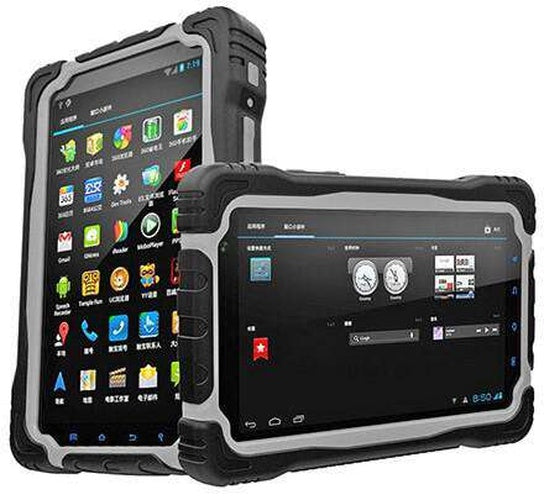

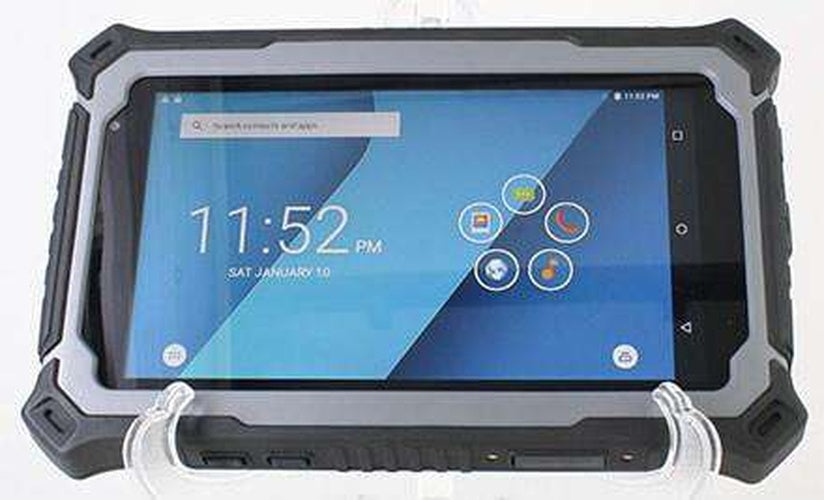

Tablet 7' CTFPND-8C-8GB128GB (IP67, DecaCore, 8GB RAM, Android 8)
Industrial IP67 Tablet PC CTFPND-8C-4GB128GB
Introducing the new IP67 water-resistant tablet PC with 7 capacitive Multi Touch. The CTFPND-8C-4GB128GB features a robust, modern industrial design and high performance, making it ideal for outdoor applications. For an improved audio and video experience, the CTFPND-10C-4GB64GB supports high-definition (HD) content playback.
● CPU Deca-Core (10x) de 1,4 a 2,4 GHz de 64 bits, 4 GB de RAM, 128 GB de ROM!
● High-performance Tablet PC with a rugged design and IP67 protection
● 1M drop-resistant
● Dual camera (13MP / 5MP)
● Speakers for high-quality audio playback
● 7" capacitive touchscreen
● 1080p HD video playback
● High-capacity battery for all-day use
● Support for Android 8
● GPS / WLAN / BT / 3G / 4G!
For projects covered by an NDA, the Android OS system build kit can be provided, allowing you to create your own Android operating system image (for example: a custom boot logo, pre-installed applications and settings, etc.)!
| Dimensions | 200 x 135 x 20.7 mm |
| Weight from | 660 g |
| Protection level | 1M drop-resistant & rugged design with IP67 rating |
| CPU | MediaTek Helio X20 (MT6797) [2x ARM-A72@2.4GHz, 2x ARM-A53@2GHz, 2x ARM-A53@1.4GHz] |
| GPU | Mali-T720 |
| OS | Android 6 (older version available on request) |
| Memory | 4 GB |
| Storage | 128 GB ROM EMCP |
| Memory slot | MicroSD (max. 64GB) |
| GPS chipset | Built-in |
| Colour display | 7" TFT LCD with multi-capacitive touchscreen |
| Panel resolution & brightness | 1280 x 720 pixels IPS/AFFS 1000nits, sunlight-readable |
| Battery type | Rechargeable lithium type |
| Battery capacity | 9650mAh |
| Speaker | Yes |
| Sensors | Axis accelerometer, orientation, gravity, linear acceleration, rotation vector, magnetic field, gyroscope |
| Cameras | 13.0 Megapixels (rear) [AF/Flash] 5.0 Megapixels (front) |
| Wireless interface | WLAN 802.11a/b/g/n (2.4Ghz/5Ghz) Bluetooth 4.0 LE (A2DP+EDR) GSM/EDGE/GPRS/WAP (B2/B3/B5/B8) WCDMA [HSDPA+/HSUPA+] (B1/B2/B5/B8) TDSCDMA (B34/B39) TD-LTE (B38/B39/B40/B41) FDD LTE (B1/B3/B7) |
| I/O ports | USB Type-C 24pin (OTG support) 3.5mm headphone connector with mic input Built-in microphone MicroSD reader Camera+SOS buttons SIM card slot MCX antenna port (passive) |
| Environment | Shock resistance: 1-19Hz/1.0mm; 19-200Hz/1.0g Drop resistance: MIL-STD-810G/Method516.6/Procedure IV Dust/water protection: Class 6 Reliability: MTBF>50000h;MTTR<0.5h Operating ambient temperature: -20° to 60°C Non-operating temperature: -40° to 80°C Relative humidity: 5% to 95%, non-condensing Maximum operating altitude: 15,000 feet (4500 m) |
| Optional modules available (on request) | - NFC (HF/support for ISO14443A/B/ISO15693/reader/data transfer/CARD) - UHF RFID (1.5M-2M, 902-928M, 865-868M) - LF RFID (125k) - ZigBee (PADRF1607H) |
| Scope of supply | - CTFPND-8C-4GB64GB Android PND (grey. Green/orange available for orders of 100++ units) - Quick-start manual - USB cable - AC USB power adapter |
