Name: Jetway JBC313U591W-3160-B (N3160, HDMI, 2* LAN, WiFi)
Brand: Jetway
SKU: JBC313U591W-3160-B
Price: 295.0 EUR
Availability: InStock

Jetway JBC313U591W-3160-B (N3160, HDMI, 2* LAN, WiFi)

Price excludes VAT 295.00€

Total with VAT (23%): 362.85€

Shipping calculated at checkout.

SKU: JBC313U591W-3160-B

Product type: PCs NUC

Manufacturer: Jetway

NUC Fanless Embedded PC with an Intel® Braswell N3160 SoC processor, support for up to 8GB SO-DDR3L, mSATA, Dual LAN and WiFi. Robust aluminum chassis designed in the NUC form factor for operation in demanding environments

NUC Fanless Embedded PC
Intel® Braswell N3160 System
miniPCIe WLAN module
1 SO-DDR3L slot supporting up to 8GB
Applications: Networking, Industrial Automation, IoT

Specifications:

Dimensions (WDH)	116 * 110 * 49 mm
Construction	Top cover & I/O plate – aluminum; base – metal
Colors	Black / JBC313U591W-3160-B
Motherboard model	JNU591-3160
CPU	Intel® Braswell N3160 SoC Processor 1.6Ghz
BIOS	AMI UEFI 64 Mb
Memory	1 * DDR3L SO-DIMM slot (max. 8GB)

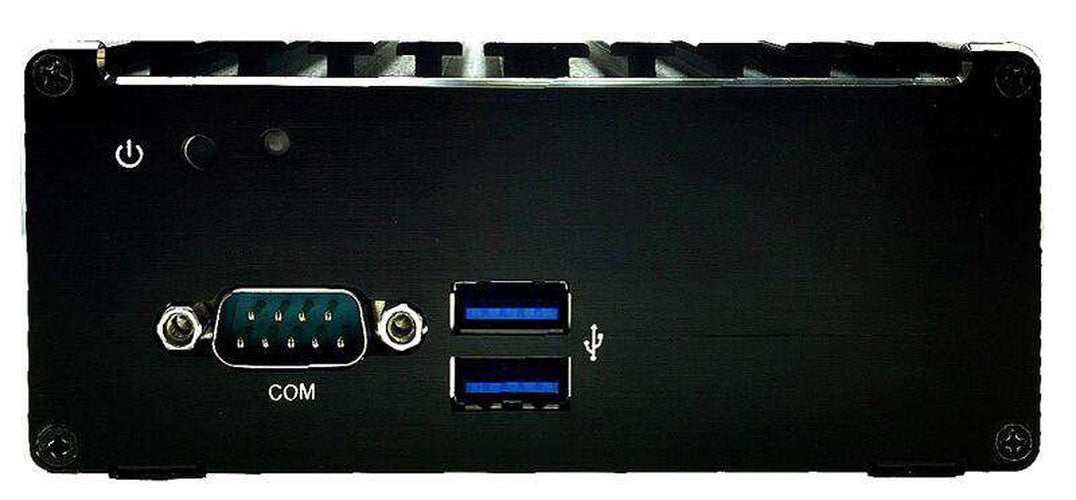

Front I/O port	2 * USB 3.0 (type A) 1 * COM 1 * Power button

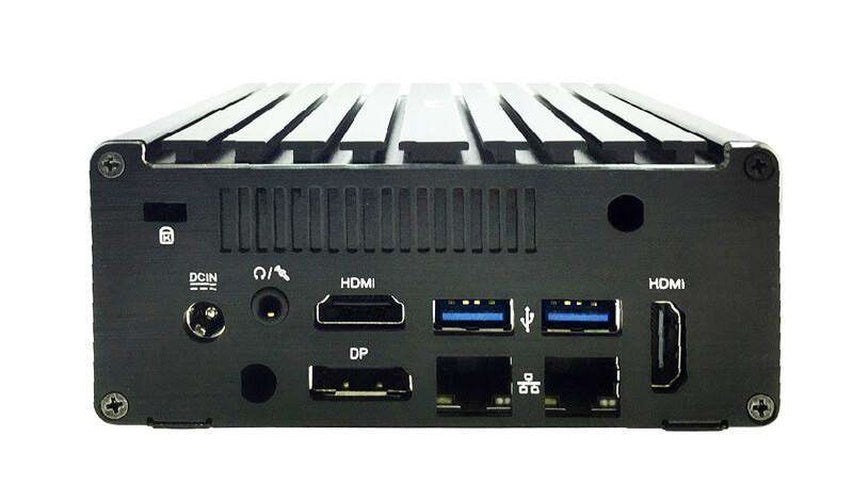

Rear I/O ports	2 * USB 3.0 (Type A) 2 * HDMI (1.4b) 1 * DP (1.1a) 2 * RJ45 (Giga LAN) Wi-Fi 1 * Line out/MIC combo 1 * DC-in jack
Expansion slot	1 * Half-size Mini PCIe slot 1 * Full-size Mini PCIe slot for a Mini PCIe /mSATA device 1 * SIM card holder
Power source	Adapter: AC_90~240V / DC_12V / 40W
Certification	EMC: CE, FCC Safety: RoHS, ErP
Environment	Operating temperature: 0°C~40°C
Mounting bracket	Wall/VESA/DIN rail multipurpose mounting kit
Packaging	Net weight: 0.9KG Gross weight: 1.3KG Color box dimensions: 158(W) x 167(D) x 123.6(H) mm
