NUC-UPS (6-38V Input, 12V Output 5A, NUC format)
Price excludes VAT
122.80€
Sale price
Price excludes VAT
122.80€
Regular price
Total with VAT (23%): 151.04€
Shipping calculated at checkout.
NUC-UPS
6-38V input, d12V 5A output, programmable backup interface, NUC form factor
- 2.5" drive footprint mounts
- Input 6-38V
- 12V output, synchronous buck-boost
- Output 5A

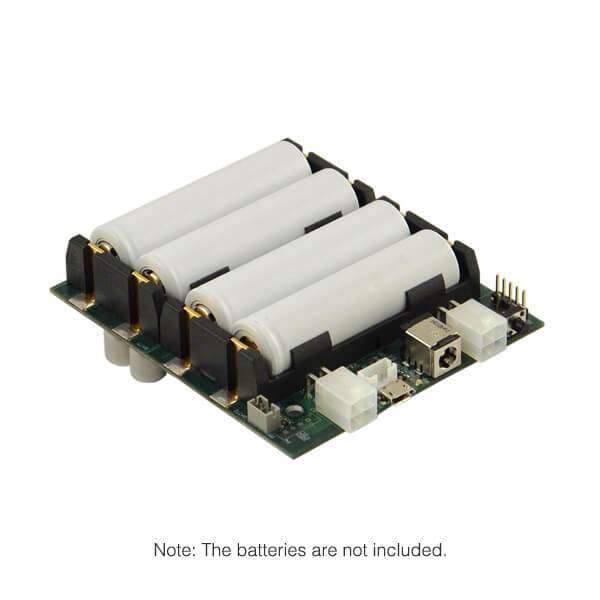

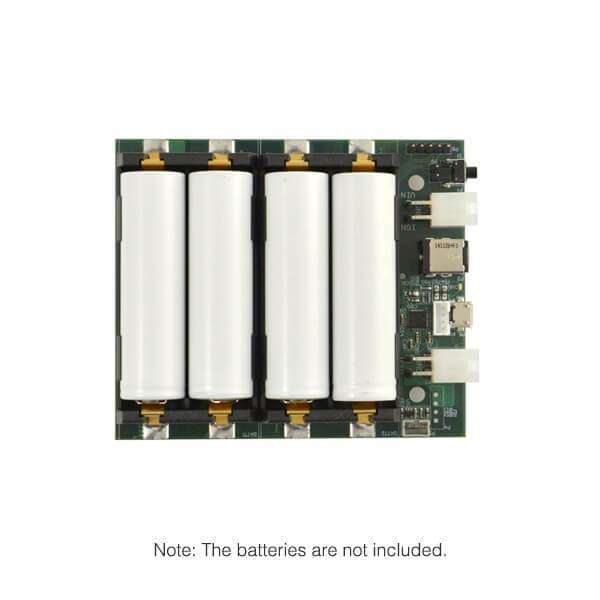

- 4S x 18650* Li-Ion (batteries not included)
- 3-state charger (precharge, CC, CV)
- Battery balancing
- Charge voltage 4x4.2V, charge current 1A, precharge current ~0.3A
- Coulomb counting
- Battery temperature monitoring for each cell
- Missing battery cell detection
- Temperature-compensated charging
- Motherboard Start/Stop button and header
- 5uA- in Deep Sleep mode
- 250uA- in Standby mode
- Windows detects the device as “Battery”, with no special drivers required**

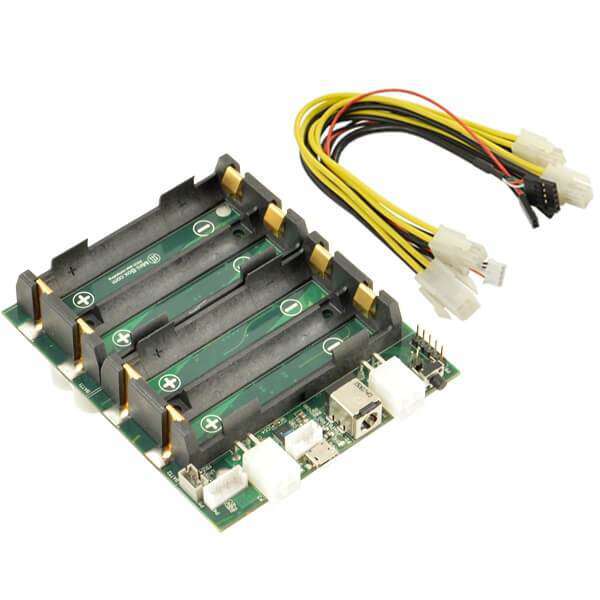

NUC-UPS was designed to provide regulated power output from the widest input voltage (6-38V) or battery backup, as well as microprocessor-assisted Li-Ion battery charging and cell balancing on a single PCBA. Battery cells are inserted into the device, with no need for special cabling between the cells and the UPS.

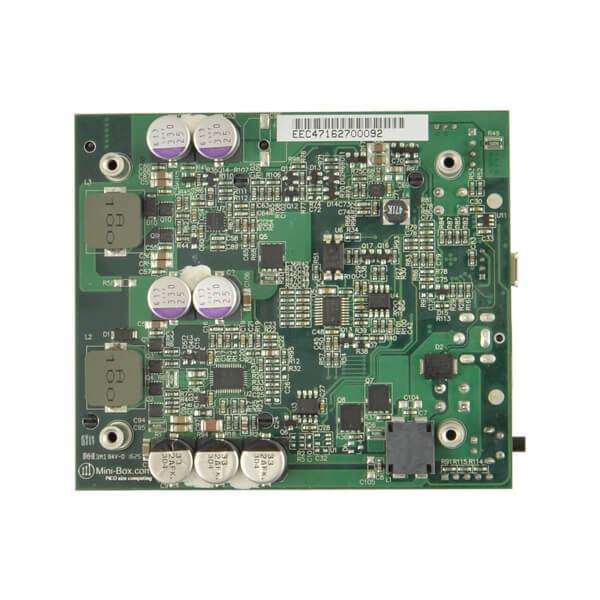

The UPS contains a 60V synchronous buck-boost converter with high-accuracy voltage and current regulation and automatic system power-path selection from the adapter or battery. It charges the battery in three phases: preconditioning, constant-current mode and constant-voltage mode.
NUC-UPS supports Windows, allowing developers to interface with custom applications.
Output and settings can be monitored through custom software applications, and the 2nd battery status is displayed on all Windows systems. Windows detects the device as “Battery”, with no special drivers required.
The UPS contains a 60V synchronous buck-boost converter with high-accuracy voltage and current regulation and automatic system power-path selection from the adapter or battery. It charges the battery in three phases: preconditioning, constant-current mode and constant-voltage mode.
NUC-UPS supports Windows, allowing developers to interface with custom applications.
Output and settings can be monitored through custom software applications, and the 2nd battery status is displayed on all Windows systems. Windows detects the device as “Battery”, with no special drivers required.
