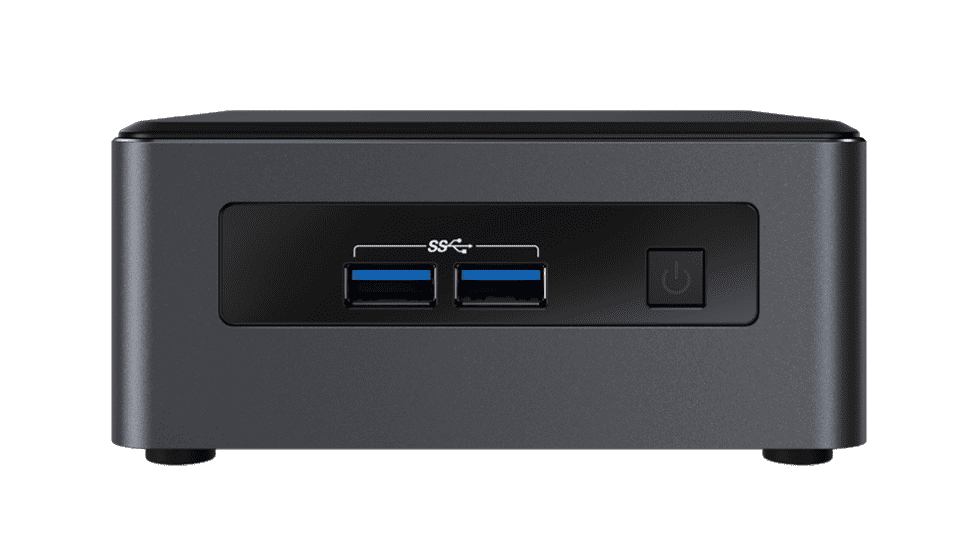

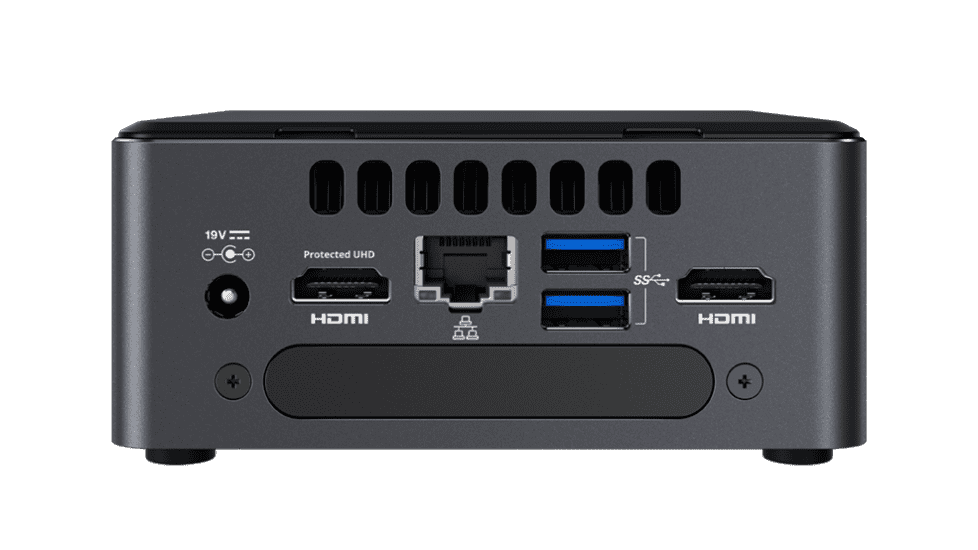

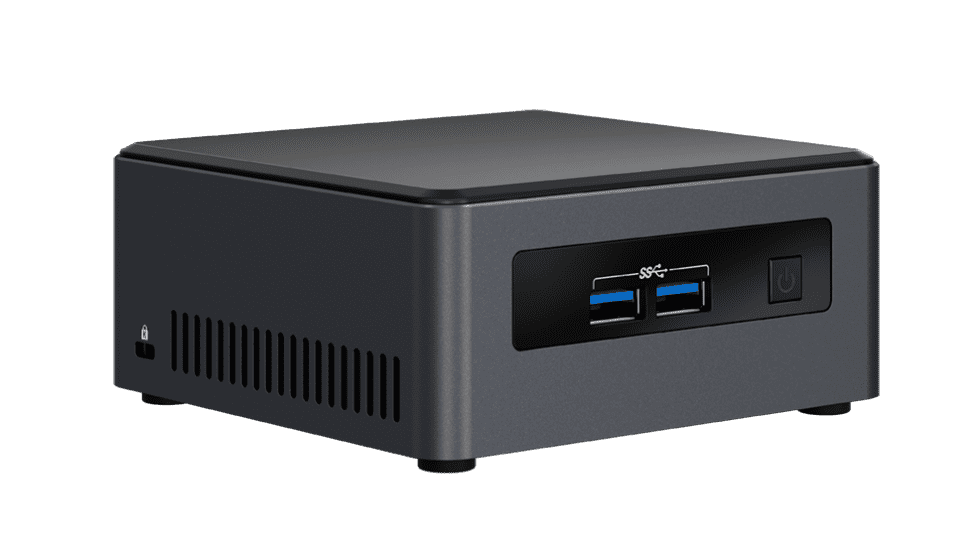

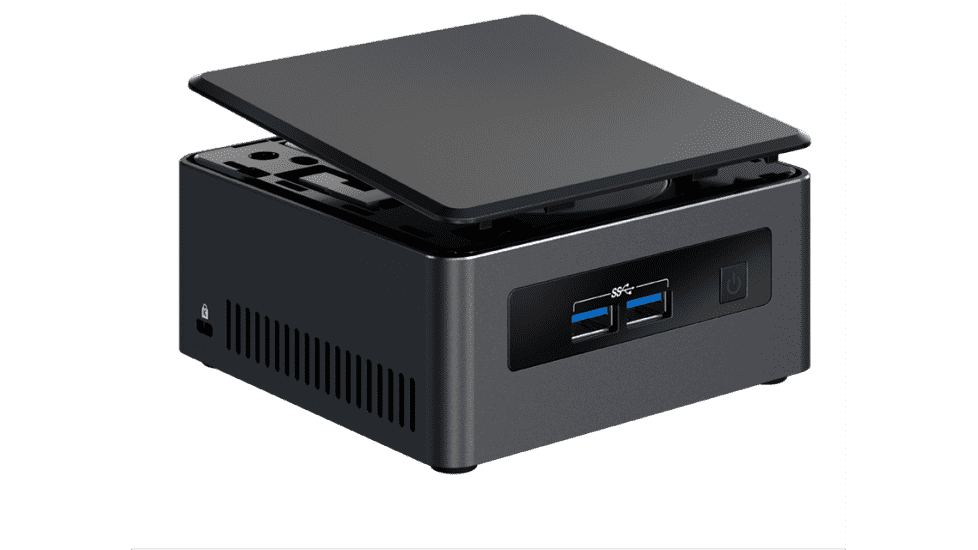

Intel NUC7I5DNHE (Intel i5-7300U, 2* HDMI, M.2, SSD 2.5')

• CPU: Intel Core i5-7300U, 2x 2.60GHz, 3MB Cache, 15W TDP.
• RAM: 2x DDR3L SO-DIMM, Dual PC4-19200S/DDR4-2400, max. 32GB (UDIMM).
• HDD/SSD: 1x SATA 6Gb/s, 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2242).
• Internal slots: 1x 2.5"
• Graphics: Intel HD Graphics 620 (IGP), 2x HDMI 2.0.
• Expansion: 1x M.2/​A-E-Key (PCIe, 2230, occupied by a WiFi+BT module).
• Connectors: 4x USB-A 3.0, 1x Gb LAN (Intel I219-V)
• Wireless: WLAN 802.11a/​b/​g/​n/​ac, Bluetooth 4.2.
• Audio: 7.1 (Intel HD Audio).
• External 65W power supply.
• VESA mounting: 75x75/​100x100 (included).
• Dimensions (WxHxD): 115x51x111mm.
• Extras: Nettop, Kensington lock and infrared sensor.

Specifications:

• Processor
  • Embedded processor: Yes
  • Processor family: 7th Generation Intel® Core ™ i5
  • Processor frequency: 2,60 GHz
  • Processor model: i5-7300U
  • Processor lithography: 14 nm
  • Number of processor cores: 2
  • Processor turbo frequency: 3.50 GHz
  • Number of processor threads: 4
  • Thermal design power (TDP): 15 W
  • L3 cache: 3 MB

• Memory
  • Memory slot type: SO-DIMM
  • Number of memory slots: 2
  • Maximum internal memory: 32 GB
  • Supported memory clock speeds: 2133 MHz
  • Compatible memory types: DDR4-SDRAM
  • Memory channels: Dual
  • Memory voltage: 1,2 V
  • ECC: No

• Audio
  • Audio output channels: 7.1 channels

• Ports and Interfaces
  • Number of USB 3.0 Type-A ports (31 Gen 1): 4
  • Number of HDMI ports: 2
  • HDMI version: 2.0a
  • Number of Ethernet LAN (RJ-45) ports: 1
  • DC input jack: Yes
  • Serial port via internal header: Yes
  • Number of SATA III connectors: 2

• Weight and Dimensions
  • Width: 115 mm
  • Depth: 111 mm
  • Height: 56 mm

• Power Control
  • Power supply type: external AC adapter
  • Power supply: 65 W
  • AC adapter output voltage: 12-19

• Environmental Conditions
  • Operating temperature range: 0 - 40 ° C
  • Storage temperature range: -20 - 60 ° C

• Technical details
  • ARK ID: 122488

• Connectivity
  • Ethernet: yes
  • Wi-Fi: yes
  • Wi-Fi standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • LAN controller: Intel I219-LM
  • Bluetooth: yes

• Storage
  • Supported storage drive types: hard disk drive, SSD
  • Supported storage drive sizes: 2,5 "
  • Storage drive interfaces: M.2, PCI Express, Serial ATA III
  • Number of supported storage drives: 1
  • RAID levels: 0, 1

• Package contents
  • AC adapter included: Yes

• Expansion slots
  • PCI Express version: 3.0
  • PCI Express x4 slots: 1

• Design
  • Chassis type: UCFF
  • Product colour: black
  • Product type: barebone Mini PC
  • Cooling type: active
  • LED indicators: hard disk drive, power
  • Integrated on/off switch: yes
  • Product family: Intel® NUC Kits
  • Product series: Intel® NUC Kit with 7th generation Intel® Core ™ processors
  • Product name: Dawson Canyon

• Graphics
  • Integrated graphics adapter: Yes
  • Graphics chipset: Intel
  • Graphics adapter: HD Graphics 620

• Processor special features
  • Embedded options available: Yes
  • Intel® Virtualization Technology (Intel® VT): VT-d, VT-x
  • Intel® Rapid Storage Technology: Yes
  • Intel® vPro ™ Technology: Yes
  • Intel® AES New Instructions (Intel® AES-NI): Yes
  • Intel® Quick Sync Video Technology: Yes
  • Intel® Clear HD Video Technology (Intel® CVT HD): Yes
  • Intel® Turbo Boost Technology: 2.0
  • Intel Hyper-Threading: Yes
  • Intel® Virtualization Technology for Directed E / S (VT-d): Yes
  • Intel® VT-x with Extended Page Tables (EPT): Yes
  • Intel® 64: Yes
  • Intel® My WiFi Technology (Intel® MWT): Yes
  • Idle states: yes
  • Intel Enhanced SpeedStep Technology: Yes
  • Intel Thermal Monitoring Technology: Yes
  • Intel® Flex Memory Access: Yes
  • Intel® Trusted Execution Technology: Yes
  • Execute Disable Bit: Yes
  • Intel® TSX-NI: Yes
  • Intel® Secure Key: Yes
  • Intel® Smart Response Technology: Yes
  • Intel® Stable Image Platform Program (SIPP): Yes
  • Intel® OS Guard: Yes
  • Intel® Clear Video Technology: Yes
  • Compatible with Intel Optane Technology: Yes

• Performance
  • Trusted Platform Module (TPM): Yes
  • Trusted Platform Module (TPM) version: 2.0

• Motherboard
  • Processor socket: BGA 1356
  • Number of supported processors: 1
