Sku: FT133BI5CAPOB
Product Type:
Panel-PC Alta Performance
Vendor:
Faytech
FT133BI5CAPOB

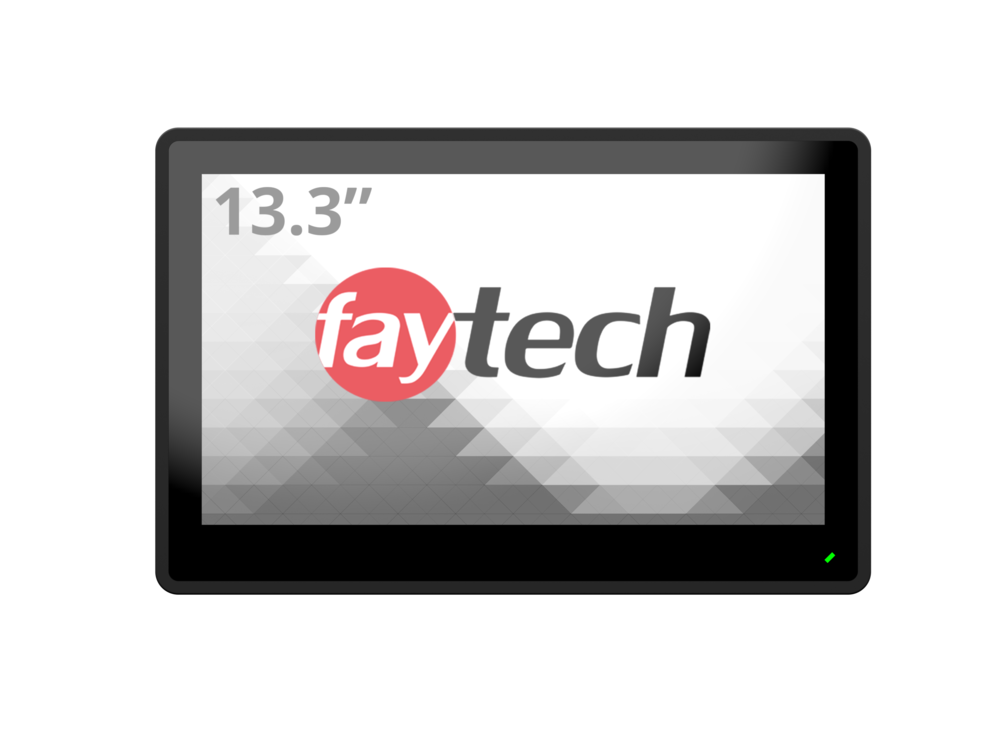

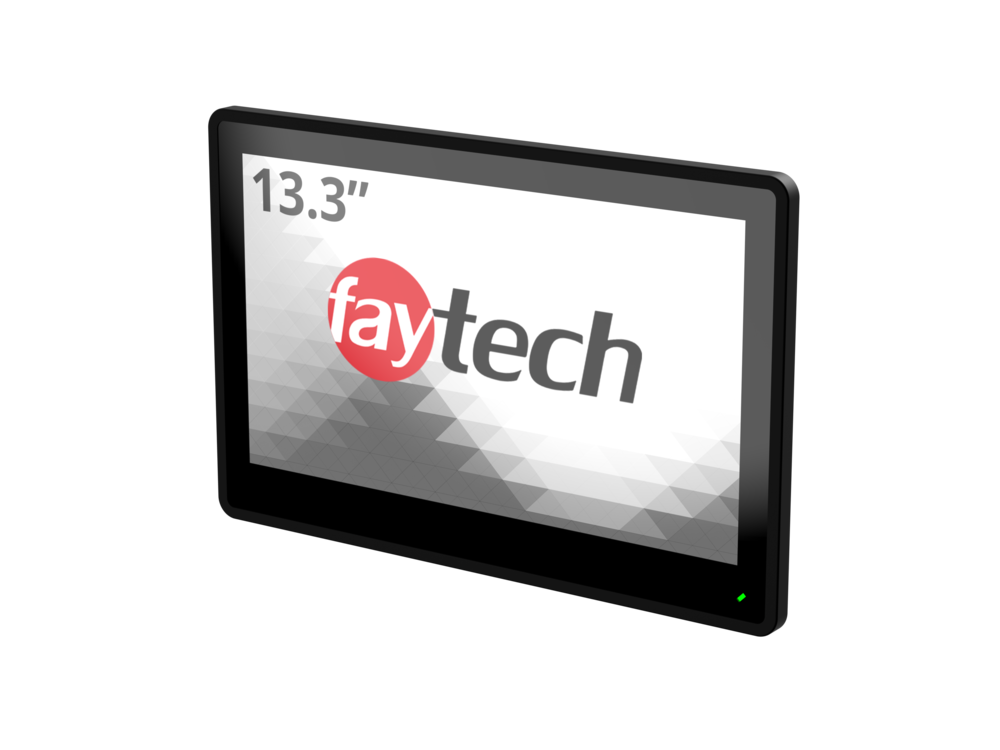

13.3" Capacitive Touch PC (i5-1145G7E)
- Intel® Core™ i5-1145G7E QuadCore
- 8GB RAM, SSD 240GB Industrial
- Suporta Debian 12, Win 10 & 11, Linux (32Bit, 64Bit)
- Tratamento de superfície anti-reflexo
- Vidro de cobertura de 1,1 mm com dureza de superfície 7H
- Painel Multi Touch Capacitivo de 10 toques
- Proteção IP65 frontal patenteada com selo de silicone
- Optically bonded
- W-LAN integrada
- Suporta fixação por grampos
- Garantia de 2 anos
Caraterísticas
Especificações
Downloads
Opcionais
Caraterísticas
faytech’s Capacitive PC series stands out among competition with its fanless silent operation, IP65 front panel design, high reliability and fine craftwork. It is the perfect choice for industrial and business application. It has flat edge to edge glass with IP65 water- and dust proof front panels and a sturdy aluminum case with stable VESA 100 fixation bolts. This solution consists of front kit and back kit, ensuring your required configuration is easily customizable.
This Touch PC is powered by faytech’s industrial Tiger Lake U mainboard. It is driven by the powerful Intel Core i5-1145G7E processor with up to 4.10 GHz burst frequency (also available with Intel i3-1115G4E or i7-1185G7E processor). This version is equipped with 8 GB RAM, 240 GB SSD and Intel’s Iris Xe Graphics chipset.
These faytech PCs are the perfect choice for a wide variety of applications including POS systems, control panels in industrial fields, in kiosk systems, office/residence automation, digital signage and in areas like shopping malls, classrooms, hotels and many more.
Especificações
Product Details
| Model number | FT133I5CAPOB |
| Global article code | 3030514302 |
| European article code | 1010502664 |
| EAN number | 6920734000944 |
IP Rating
| IP65 front / IP40 back |
PC System
| CPU | Intel® Core™ i5-1145G7E (Tiger Lake U) |
| GPU Graphics | Intel® Iris® Xe Graphics |
| Audio | |
| Memory | 8 GB DDR4 |
| Switchable Storage | 240 GB SSD |
| Network | 2x Realtek® 8111H (10/100/1000 Mbit/s, 1x with PoE) |
| Preinstalled OS | Debian 12 |
LCD Panel
| Screen diagonal | 13.3" / 33.7 cm |
| Display active screen size | 29.38 cm x 16.52 cm (11.56 in x 6.503 in) |
| Aspect ratio | 16:9 |
| Physical resolution | 1920 ×1080 px |
| Maximum showable resolution | 1920 ×1080 px |
| Brightness | 300 (cd/m²) |
| Contrast | 800:1 |
| Typical reaction time Tr/ Tf | - (ms) |
| Visual angle horizontal/vertical | 170/170 (°) |
| Backlight | LED |
| Backlight lifetime | 15,000 (hours) |
Touch Panel
| Touch technology | Projected Capacitive 10-point Multitouch |
| Touch lifetime | Unlimited |
| Surface hardness | 7H |
| Surface treatment | Anti-glare (chemical etching) |
| Glass strengthening | Thermally Strengthened |
Operation/Mechanical
| Operating temperature | -10 °C ~ +60 °C (14 °F ~ 140 °F) |
| Humidity range | 10% - 90% RH |
| Net weight | 3.40 (est.) kg / 7.4957 lb |
| Gross weight (incl. cartonage) | 5.30 (est.) kg / 11.684 lb |
| Housing material | Rubber Frame Sealing, Aluminum IPC back |
| Housing sizes | 338.2 mm x 220.7 mm x 42.3 mm (13.31 in x 8.688 in x 1.665 in) |
| Clamp support | Yes |
| cut-out for clamp supports (L X H) | 322.0 mm x 196.0 mm (12.67 in x 7.716 in) |
| Amount of clamps required | 4 |
| Mounting | VESA 100 |
Power
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 12V DC-Out |
| Working power | 9-36 V |
| Power consumption | 18.8 W |
| Standby power | 1 W |
Internal Connectors
| Contact Sales for more info |

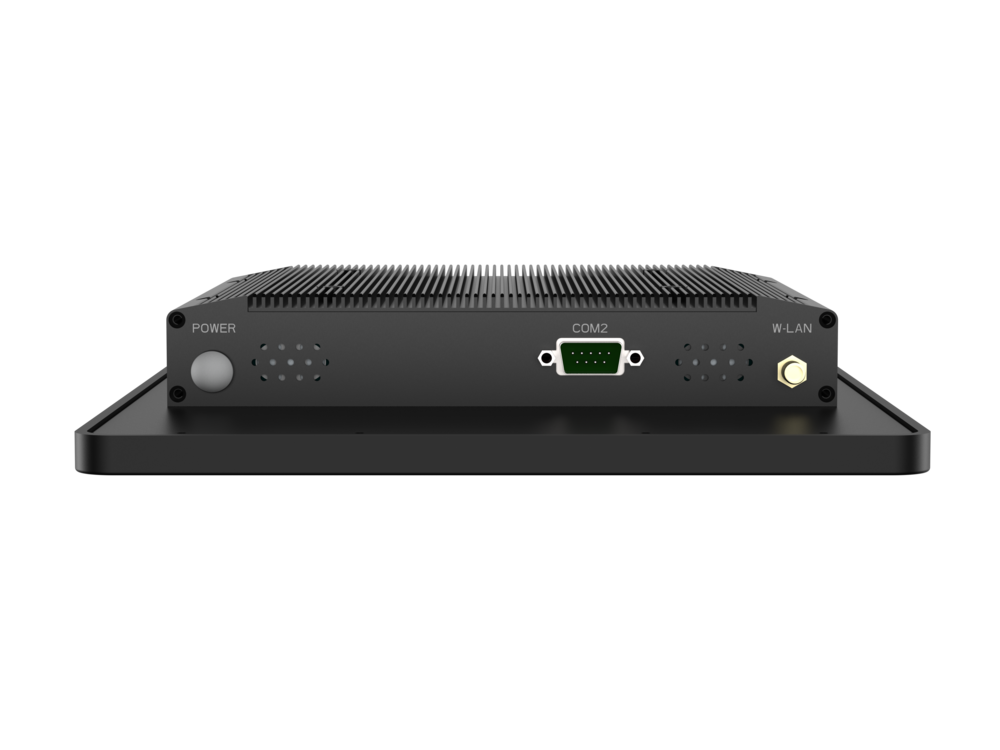

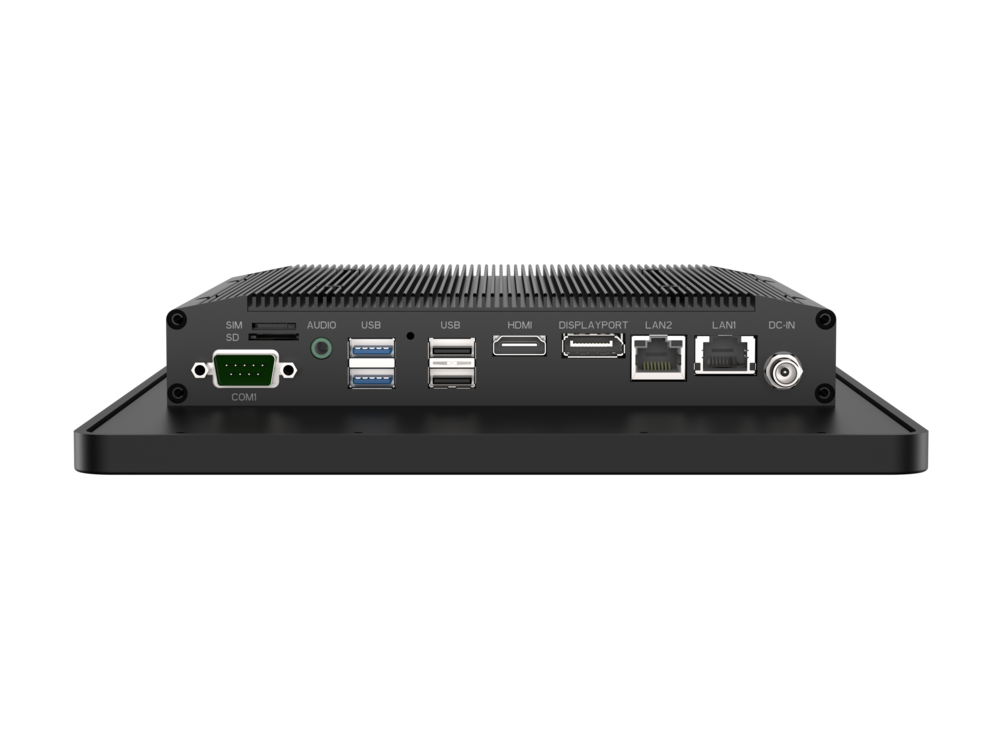

External Connectors
| 1x 9-36V DC-In (screwable) 1x W-LAN antenna connector (RP-SMA male) 2x USB 2.0 2x USB 3.0 1x HDMI 1x DP 1x Audio-In / Out (Realtek® ALC897 Audio CODEC) 1x SIM-card slot 1x SD-card slot 2x Serial Port RS232 (RX / TX only) 2x Ethernet Network (10/100/1000 Mbit/s, 1 PoE, Realtek® 8111H) |
Expansion Slots
| N/A |
Included in the delivery
| Power Supply (see Power section) Short Installation Manual W-LAN antenna (RP-SMA female) |
Downloads
Opcionais
35.00€
Stand em Metal VESA 75 / 100
29.00€
Wallmount VESA 75 / 100
79.50€
Modulo de ignição
32.50
Grampos de fixação
