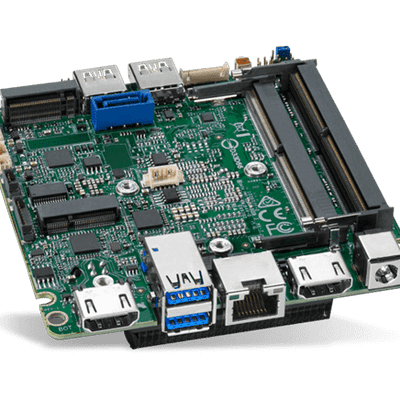

Board embedded Intel NUCNUC7I5BNB com processador de 7ª geração Intel Core i5-7260U, 2x DDR4 SO-DIMM até 32GB, Slots: 1x M.2/M-Key (PCIe 3.0 x4/SATA, 2280/2242), 1x M.2/E-Key (PCIe 2.0 x2, 2230). Intel® Iris® Plus Graphics 640
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.
Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
| SKU | NUC7I5BNB |
|---|---|
| Manufacturer Launch Date | Q1'17 |
| Expected Life Cycle | 3 Years |
| Notes | Requires DDR4L Memory. |
| Processor Speed | 3.4 GHz |
| Processor Generation | Kaby Lake |
| Processor Socket | Onboard (BGA) |
| Processor Cores | 2 |
| Graphics/GPU | Intel® Iris® Plus Graphics 640 |
| Memory Slot Count | 2.00 |
| Memory Speed | 2133 MHz |
| Memory Type | DDR4L SO-DIMM (non-ECC) |
| Memory Capacity | 32 GB |
| Storage Options | 2.5" HDD/SSD 1 M.2 NGFF 2280 slot |
| SATA Interface | 6.0 Gb/sec |
| LAN Controller | Intel I218LM GbE |
| Expansion Options | 1 M.2 slot |
| Front I/O | 2 USB 3.0 ports 1 Audio jack (headphone/mic) 1 IR sensor |
| Rear I/O | 1 LAN port 2 Mini-DisplayPort 2 USB 3.0 ports 19V DC input jack |
| Onboard Connectors | 2 USB 2.0 via 1 pin headers |
| System Monitoring | Smart Fan Control Watchdog Timer |
| Operating Temperature Range | 0 ~ 50°C |
| Input Voltage | 12~19 VDC |
| Warranty | 3 years; item can be returned for warranty to manufacturer only For additional support please see the Intel Support site. |
