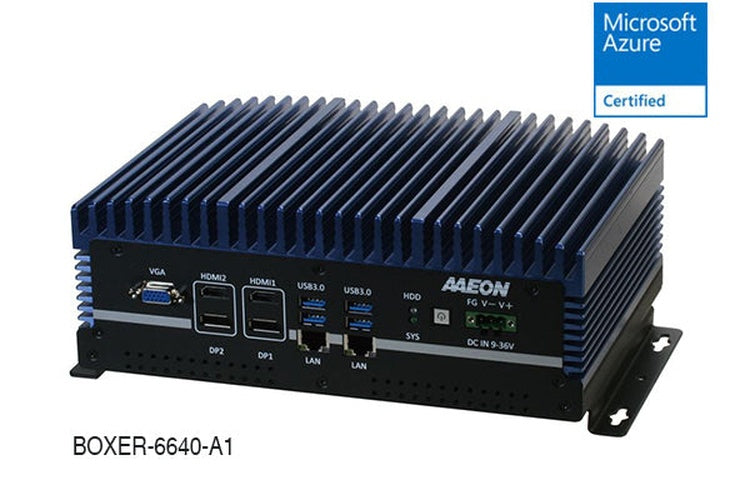

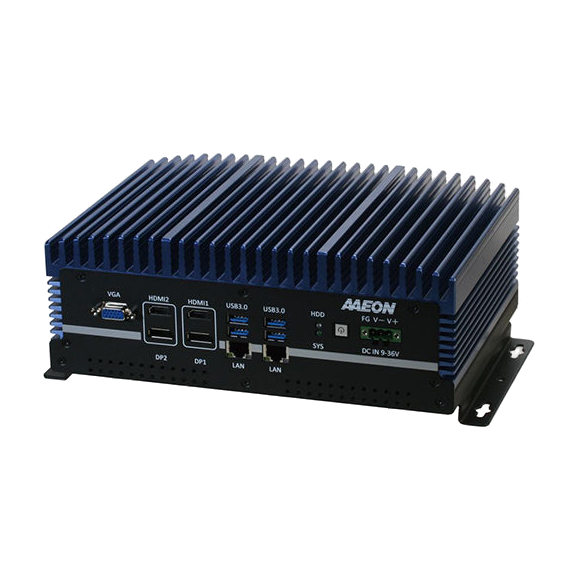

AAEON BOXER-6640 (Intel 6/ 7 Gen, 2 LAN, 4 COM, DIO, 9-36VDC)

Price excludes VAT 705.00€

Total with VAT (23%): 867.15€

Shipping calculated at checkout.

SKU: BOXER-6640-A1-1010

Product type: Industrial PCs

Manufacturer: AAEON

BOXER-6640-A1-1010

BOXER-6640-A2-1010

Fanless embedded Box PC with 6th/7th Gen Intel® Core™ desktop processor and GbE

High computing performance & graphics display capability
Desktop-grade socket-type processor
Supports DDR4 ECC or non-ECC SO-DIMM, up to 32GB
Supports VGA + HDMI x 2 (combo DisplayPort x 2)
Supports USB 3.0 x 4
Supports Intel® GbE LAN x 2
Wide-range DC 9~36V input
8-bit digital input and output

The BOXER-6640 is purpose-built for factory automation and machine vision applications. With two LAN ports, four USB3.0 ports, and three USB2.0 ports, it can be connected to a range of cameras and sensors, while its 8-bit DIO enables it to control connected systems based on digital inputs. It also has a VGA port and two additional combined HDMI and DP ports for dual-display output, allowing this controller to serve easily as the hub of an effective HMI solution.

The BOXER-6640 is a rugged, fanless system featuring a durable enclosure and an operating temperature range of -20°C to 55°C. It can withstand power surges and drops and has a DC input range of 9V to 36V. The system is also vibration-resistant, especially when fitted with SSD storage instead of an HDD. Additional storage is available in the form of full-size mSATA and PCIE Mini Cards.

Note: This barebone system may not include memory, storage, or even a processor. Please check the product specifications before making your purchase.

Included

3-pin DC-IN power connector x 1
2-pin remote on/off connector
Thermal Pad
Wall-mount bracket x 2
Screw package x 1
Product DVD x 1
BOXER-6640

SYSTEM
CPU	Intel® Core™ i7-7700T, Quad Core, 2.9 GHz Intel® Core™ i5-7600T, Quad Core, 2.8 GHz Intel® Core™ i3-7300T, Dual Core, 3.5 GHz Intel® Core™ i7-6700TE, Quad Core, 2.4 GHz Intel® Core™ i5-6500TE, Quad Core, 2.3 GHz Intel® Core™ i3-6100TE, Dual Core, 2.7 GHz
CHIPSET	Intel® H110
SYSTEM MEMORY	DDR4 SODIMM socket (double-deck) x 2 Supports 1866/2133MHz DDR4 and up to 32GB Supports un-buffered ECC and non-ECC SODIMM
DISPLAY INTERFACE	VGA x 1, HDMI x 2 (combo DP x 2) - A1 SKU VGA x 1 - A2 SKU
STORAGE DEVICE	mSATA, SATA HDD/SSD
ETHERNET	Intel® I211AT x 1, I219LM x 1

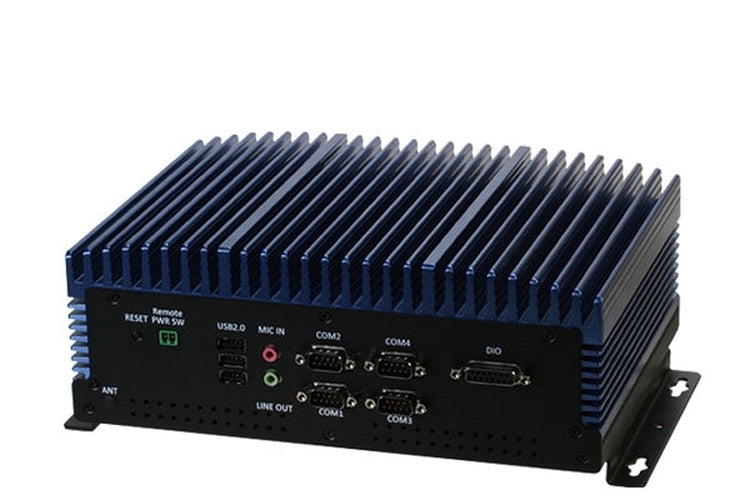

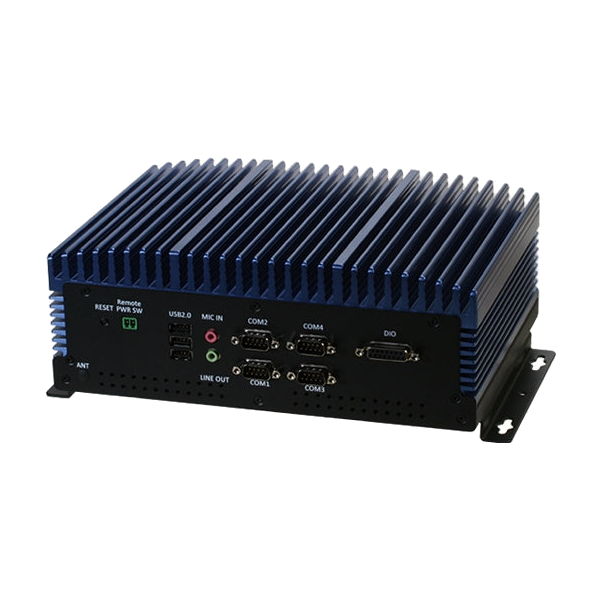

I/O	2-pin remote power on/off connector Audio x1 (MIC-in, Line-out) USB 2.0 x 3 DB-9 x 3 for RS-232 8-bit DIO DB-9 x 1 for RS-232/422/485 with automatic flow control Power ON/OFF switch x 1 3-pin 9~36V DC power input x 1 (+, - , GND) VGA x 1 HDMI x 2 (combo DP x 2) USB 3.2 Gen 1 x 4 RJ-45 x 2 for GbE (i211AT x 1, i219LM x 1)
EXPANSION	Full-size Mini-Card x 1 (PCI-E + USB, with SIM slot) Full-size Mini-Card x 1 (mSATA + USB) LPC x 1
INDICATOR	Power LED HDD activity LED
OS SUPPORT	Windows® 10 64-bit (Kabylake, Skylake CPU) Windows® 8.1 64-bit (Skylake CPU only) Windows® Embedded 8 Standard 64-bit (Skylake CPU only)
POWER SUPPLY
POWER REQUIREMENT	3-pin Phoenix DC input, 9~36V
MECHANICAL
MOUNTING	Wall Mount
DIMENSIONS (W X H X D)	10.39" x 3.8" x 7.33" (264mm x 96.4mm x 186.2mm)
GROSS WEIGHT	12.76 lb (5.8 kg)
NET WEIGHT	9.9 lb (4.5 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE	-4°F ~ 131°F (-20°C ~ 55°C) (according to IEC68-2-14, with 0.5 m/s air flow; with industrial devices)
STORAGE TEMPERATURE	-49 °F ~ 176°F (-45°C ~ 80°C)
STORAGE HUMIDITY	5 ~ 95% @ 40°C, non-condensing
ANTI-VIBRATION	2 Grms/ 5 ~ 500Hz/ operation – SSD 1 Grms/ 5 ~ 500Hz/ operation – HDD
ANTI-SHOCK	-
CERTIFICATION	CE/FCC class A

Ordering Information [BOXER-6640]

PART NUMBER	BOXER-6640-A1-1010	BOXER-6640-A2-1010
CPU	—	—
RAM	—	—
LAN	2	2
USB	USB 3.2 Gen 1 x 4 USB 2.0 x 3	USB 3.2 Gen 1 x 4 USB 2.0 x 3
RS-232/422/485	RS-232: 3 RS-232/422/485: 1	RS-232: 3 RS-232/422/485: 1
DIGITAL I/O	8 bit	8 bit
AUDIO	MIC-in, Line-out	MIC-in, Line-out
STORAGE	2.5” SATA drive bay x 1	2.5” SATA drive bay x 1
DISPLAY	VGA x 1 HDMI x 2	VGA x 1
EXPANSION	Full-size Minicard x 2	Full-size Minicard x 2
MOUNTING	Wall mounting	Wall mounting
POWER	9-36V	9-36V
OPERATING TEMPERATURE	-4°F ~ 131°F (-20°C ~ 55°C)	-4°F ~ 131°F (-20°C ~ 55°C)
