AAEON BOXER-6641 (Intel 8 Gen, 4 LAN, 6 COM, 2 HDMI,10-35VDC)
Price excludes VAT
815.00€
Sale price
Price excludes VAT
815.00€
Regular price
Total with VAT (23%): 1,002.45€
Shipping calculated at checkout.
BOXER-6641-A1-1110
BOXER-6641-A2-1110
BOXER-6641-A5-1110
BOXER-6641-A6-1110

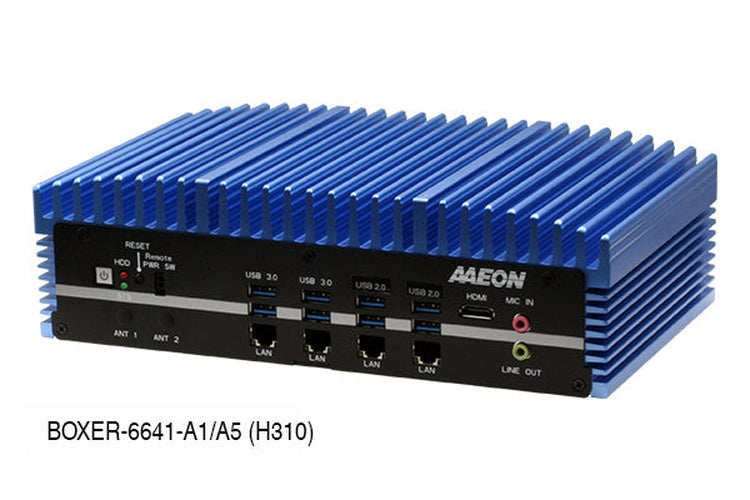

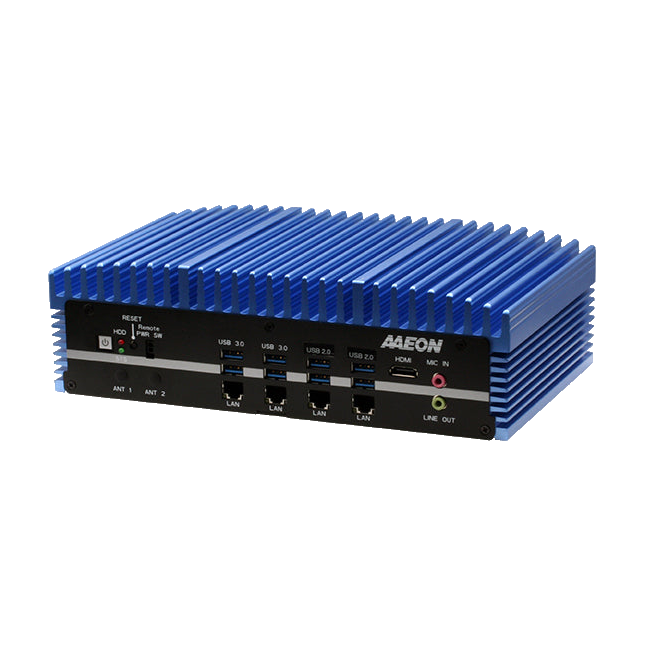

Fanless embedded box PC for 8th-generation Intel® processors
- Extreme Computing Power & Graphics Display Capability
- Desktop-grade socket-type Core™ i3/i5/i7/i9 processor for A1 & A5 models (max. TDP up to 65W)
- Desktop-grade socket-type Core™ i3/i5/i7/i9/Xeon® processor for A2 & A6 models (max. TDP up to 71W)
- Supports DDR4 ECC or Non-ECC SODIMM, up to 64GB
- Supports Intel® GbE LAN x 4 (i211 x 3 + i219 x 1)
- Supports Intel® AMT (A2 & A6 models)
- Supports HDMI x 2 dual displays
- Supports USB 3.2 Gen 1 x 8 (A2 & A6 models)

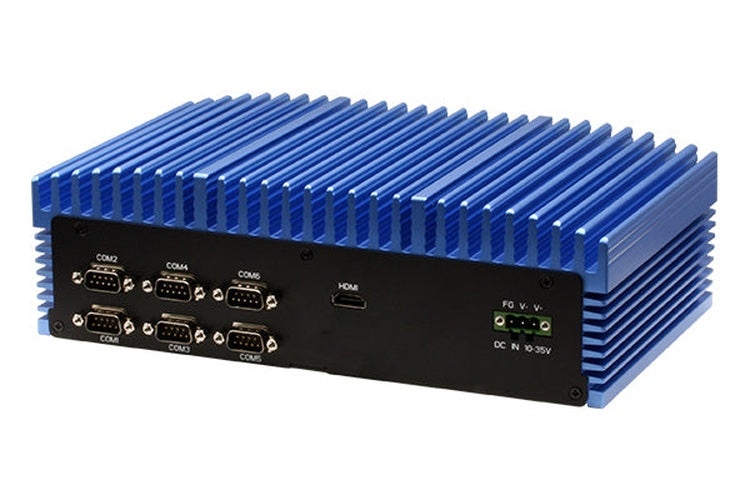

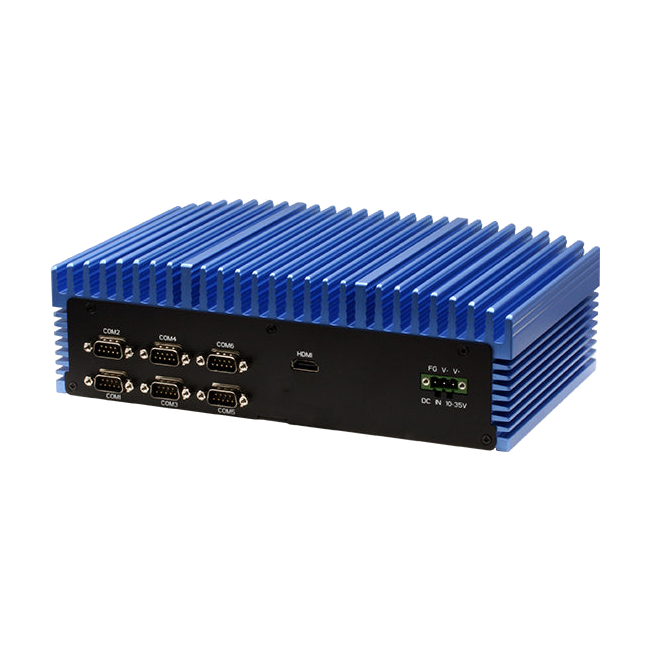

- Supports BIOS-selectable RS-232/422/485 x 6
- Wide-range DC 10~35V input
The Boxer-6641 is designed to provide users with unparalleled flexibility and performance. Available with two chipsets, the H310 (Boxer-6641-A1) and C246 (Boxer-6641-A2), the system supports a range of 8th-generation Intel® Core™ and Xeon® Processor Family processors (formerly Coffee Lake), from the Celeron® G4900T and Pentium® G5400T to the Xeon® E-2124G (up to 71W). Combined with up to 32 GB of ECC or Non-ECC DDR4 2666MHz RAM and support for two hard drives, the Boxer-6641 is currently the most powerful fanless industrial system available on the market.
The Boxer-6641 is designed for easy integration into any industrial application. Its I/O interfaces include six ports and up to eight USB 3.2 Gen 1 ports (A2 model). The Boxer-6641 also features four Intel Gigabit Ethernet ports, including an Intel® I219 chipset, with built-in support for Intel® VPro and Intel® Active Management Technology (Intel® AMT), available on the Boxer-6641-A2. The Boxer-6641 is expandable through two MPCIE slots capable of supporting AI applications with solutions such as the AAEON AI Core X with Intel® Movidius® Myriad™ X VPU.
The Boxer-6641 is designed with several key features to ensure reliable operation in harsh industrial environments. In addition to its fanless construction, the Boxer-6641 provides a wide 10V to 35V input voltage range, a wide -20 °C to 55 °C operating temperature range (-20 °C to 45 °C with a 71W processor), and an all-metal chassis. The Boxer-6641 is easy to maintain, requiring only six screws to remove the upper heat sink for CPU access, while removal of the lower panel provides easy access to memory and storage devices.
Packing List
- Wall-mount Bracket x 2
- 3-pin DC-In power connector x 1
- Screw package x 1
- BOXER-6641
| SYSTEM | |
| CPU | Intel® Xeon® E-2124G (for A2 & A6 models only) Intel® i9-9900T Intel® i7-9700TE Intel® i7-8700T Intel® i5-8500T Intel® i3-8100T Pentium® G5400T Celeron® G4900T |
| CHIPSET | Intel® C246/H310 |
| SYSTEM MEMORY | DDR4-2666 SO-DIMM slot x 2 Up to 64GB, ECC or Non-ECC support |
| DISPLAY INTERFACE | HDMI x 2 |
| STORAGE DEVICE | 2.5” SATA HDD/SSD bay x 1 (x 2 for A5 & A6 models; A6 supports RAID 0/1) |
| ETHERNET | Intel® i211 x 3, i219 x 1 |
| I/O | HDMI x 2 RJ-45 x 4 for GbE LAN (i211 x 3, i219 x 1) USB 3.2 Gen 1 x 4, USB2.0 x 4 (A1 & A5 models) USB 3.2 Gen 1 x 8 (A2 & A6 models) DB-9 x 6 for RS-232/422/485 Audio x 1 (MIC-in, Line-out) 3-pin 10~35V power input x 1 Power button x 1 Remote power switch x 1 Reset button x 1 HDD LED x 1 SYS LED x 1 |
| EXPANSION | Full-size Mini PCIe x 1 Full-size Mini PCle x 1 (PCIe/mSATA switched through BIOS, default: mSATA) SIM slot x 1 |
| INDICATOR | HDD LED x 1 SYS LED x 1 |
| OS SUPPORT | Windows® 10 64-bit Linux Ubuntu 20.04 |
| POWER SUPPLY | |
| POWER REQUIREMENT | 3-pin DC input, 10~35V |
| MECHANICAL | |
| MOUNTING | Wall mounting |
| DIMENSIONS (W X H X D) | 10.4” x 3.19” x 6.15” (264.2mm x 80.92mm x 156.2mm) |
| GROSS WEIGHT | 10.4 lb (4.7 kg) |
| NET WEIGHT | 8.2 lb (3.7 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 131°F (-20°C ~ 55°C) with 0.5 m/s airflow — with TDP ≦ 35W CPU -4°F ~ 113°F (-20°C ~ 45°C) with 0.5 m/s airflow — with TDP >35W CPU |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 2 Grms/ 5 ~ 500Hz/ operation — SSD/mSATA 1 Grms/ 5 ~ 500Hz/ operation — HDD |
| ANTI-SHOCK | — |
| CERTIFICATION | CE/FCC Class A |
Ordering Information [BOXER-6641]
| PART NUMBER | BOXER-6641-A1-1110(H310) | BOXER-6641-A2-1110(C246) | BOXER-6641-A5-1110(H310) | BOXER-6641-A6-1110(C246) |
|---|---|---|---|---|
| LAN | 4 | 4 | 4 | 4 |
| USB | USB 3.2 Gen 1x 4 USB 2.0 x 4 | USB 3.2 Gen 1x 8 | USB 3.2 Gen 1x 4 USB 2.0 x 4 | USB 3.2 Gen 1x 8 |
| RS-232 | — | — | — | — |
| RS-232/422/485 | RS-232/422/485 x 6 | RS-232/422/485 x 6 | RS-232/422/485 x 6 | RS-232/422/485 x 6 |
| AUDIO | Mic-in Line-out | Mic-in Line-out | Mic-in Line-out | Mic-in Line-out |
| STORAGE | Internal 2.5” SATA drive bay x 1 | Internal 2.5” SATA drive bay x 1 | Internal 2.5” SATA drive bay x 2 | Internal 2.5” SATA drive bay x 2 (RAID 0/1) |
| DISPLAY | HDMI x 2 | HDMI x 2 | HDMI x 2 | HDMI x 2 |
| EXPANSION | Full-size Mini-Card x 2 SIM x 1 | Full-size Mini-Card x 2 SIM x 1 | Full-size Mini-Card x 2 SIM x 1 | Full-size Mini-Card x 2 SIM x 1 |
| MOUNTING | Wall mounting | Wall mounting | Wall mounting | Wall mounting |
| POWER | 10~35V | 10~35V | 10~35V | 10~35V |
| OPERATING TEMPERATURE | -4°F ~ 131°F (-20°C ~ 55°C) with 0.5 m/s airflow – with CPU TDP ≦ 35W; -4°F ~ 113°F (-20°C ~ 45°C) with 0.5 m/s airflow – with CPU TDP >35W | -4°F ~ 131°F (-20°C ~ 55°C) with 0.5 m/s airflow – with CPU TDP ≦ 35W; -4°F ~ 113°F (-20°C ~ 45°C) with 0.5 m/s airflow – with CPU TDP >35W | -4°F ~ 131°F (-20°C ~ 55°C) with 0.5 m/s airflow – with CPU TDP ≦ 35W; -4°F ~ 113°F (-20°C ~ 45°C) with 0.5 m/s airflow – with CPU TDP >35W | -4°F ~ 131°F (-20°C ~ 55°C) with 0.5 m/s airflow; -4°F ~ 113°F (-20°C ~ 45°C) with 0.5 m/s airflow – with CPU TDP >35W |
Accessories
| 1255X00059 | 120W power adapter (recommended for 35W CPU) |
| 1255302300 | 230W power adapter (recommended for >35W CPU) |
| 1702031802 | Power cord (US type |
| 1702031803 | Power cord (Europe) |
| 170203180E | Power cord (Japan) |
