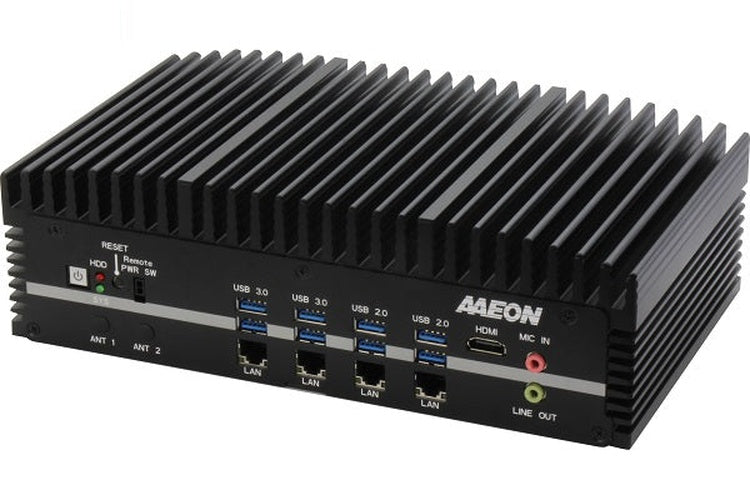

AAEON BOXER-6641-PRO (Intel 8/ 9 Gen, 4 LAN, 6 COM, DIO,10-35VDC)

Price excludes VAT 999.00€

Total with VAT (23%): 1,228.77€

Shipping calculated at checkout.

SKU: BOXER-6641-PRO-A1-1010

Product type: Industrial PCs

Manufacturer: AAEON

BOXER-6641-PRO-A1-1010

BOXER-6641-PRO-A2-1010

Fanless Embedded Box PC for 8th and 9th generation Intel® processors

Wide operating temperature of -40~70°C with “Graphene” chassis for extreme computing power & graphics display capability
Desktop-grade socket-type Core™ - i3/i5/i7 processor (CPU TDP 35W)
Supports DDR4 ECC or Non-ECC SODIMM, up to 64GB
Supports dual displays via HDMI x 2
Supports Intel® GbE LAN x 4 (i211 x 3 + i219 x 1)
Supports Intel® AMT (A2 model)
Supports RAID 0/1 functionality (A2 model)
Wide-range DC 10~35V input

The Boxer-6641-Pro, a new addition to our Embedded Box PC series, is powered by 9th/ 8th generation Intel® Core ™ processors (formerly Coffee Lake Refresh/Coffee Lake) to deliver optimal performance for critical industrial applications. To meet the durability requirements of deployments in harsh environments, the Boxer-6641-Pro supports an extended operating temperature of -40 ° F ~ 158 ° F (-40 ° C ~ 70 ° C). In addition, by incorporating graphene into its thermal design, the fanless Boxer-6641-Pro delivers significantly improved thermal efficiency, further enhancing computing performance in real-world applications.

Packing List

Wall-mount bracket x 2
3 pin DC-in power connector x 1
10 pin DIO connector x 1
Screw package x 1
BOXER-6641-PRO

SYSTEM
CPU	Intel® i7-9700TE Intel® i7-8700T Intel® i5-8500T Intel® i3-8100T Pentium® G5400T Celeron® G4900T
CHIPSET	Intel® C246/H310
SYSTEM MEMORY	DDR4-2666 SO-DIMM slots x 2, Up to 64GB, ECC or Non-ECC support
DISPLAY INTERFACE	HDMI x 2
STORAGE DEVICE	2.5” SATA HDD/SSD bays x 2
ETHERNET	Intel® i211 x 3, i219 x 1

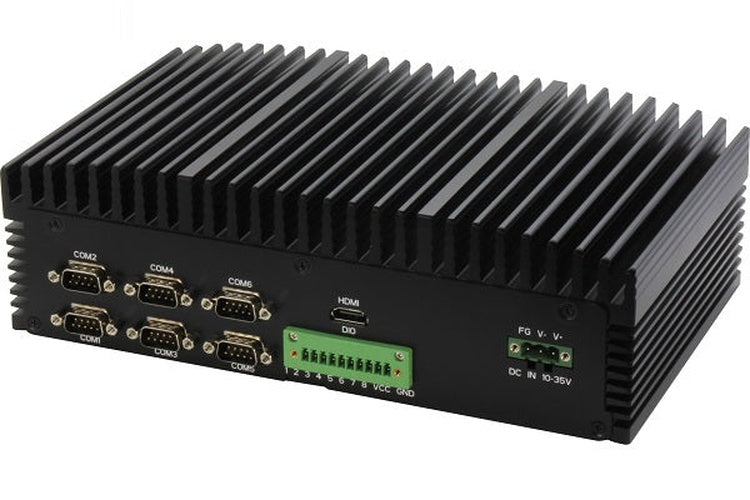

I/O	HDMI x 2 RJ-45 x 4 for GbE LAN (i211 x 3, i219 x 1) USB 3.2 Gen 1 x 4, USB2.0 x 4 (A1 model) USB 3.2 Gen 1 x 8 (A2 model) DB-9 x 6 for RS-232/422/485 10-pin terminal block for 8-bit DIO Audio x 1 (MIC-in, Line-out) 3-pin 10~35V power input x 1 Power button x 1 Remote power switch x 1 Reset button x 1
EXPANSION	Full-size Mini PCIe x 1 Full-size Mini Card x 1 (PCIe/mSATA switching via BIOS, default: mSATA) SIM slot x 1
INDICATOR	HDD LED x 1 SYS LED x 1
OS SUPPORT	Windows® 10 64-bit Linux Ubuntu 20.04.2
POWER SUPPLY
POWER REQUIREMENT	3-pin DC input, 10~35V
MECHANICAL
MOUNTING	Wall-mount kit
DIMENSIONS (W X H X D)	10.4” x 3.19” x 6.15” (264.2mm x 80.92mm x 156.2mm)
GROSS WEIGHT	10.4 lb (4.7 kg)
NET WEIGHT	8.2 lb (3.7 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE	-40°F ~ 158°F (-40°C ~ 70°C), according to IEC68-2-14, with 0.5 m/s Airflow
STORAGE TEMPERATURE	-40°C ~ 80°C
STORAGE HUMIDITY	5 ~ 95% @ 40C, non-condensing
ANTI-VIBRATION	2 Grms/ 5 ~ 500Hz/ during operation (with SSD)
ANTI-SHOCK	—
CERTIFICATION	CE/FCC Class A

Ordering Information [BOXER-6641-PRO]

PART NUMBER	BOXER-6641-PRO-A1-1010	BOXER-6641-PRO-A2-1010
CHIPSET	H310	C246
LAN	4	4
USB	USB 3.2 Gen 1 x 4 USB 2.0 x 4	USB 3.2 Gen 1 x 8
DIO	8bit	8bit
RS-232/422/485	6	6
AUDIO	Mic-in Line-out	Mic-in Line-out
STORAGE	Internal 2.5” SATA drive bay x 2	Internal 2.5” SATA drive bay x 2
DISPLAY	HDMI x 2	HDMI x 2
EXPANSION	Full-size Mini-Card x 2 SIM x 1	Full-size Mini-Card x 2 SIM x 1
MOUNTING	Wall mount	Wall mount
POWER	10~35V	10~35V
OPERATING TEMPERATURE	-40°F ~ 158°F (-40°C ~ 70°C), according to IEC68-2-14, with 0.5 m/s airflow	-40°F ~ 158°F (-40°C ~ 70°C), according to IEC68-2-14, with 0.5 m/s airflow
