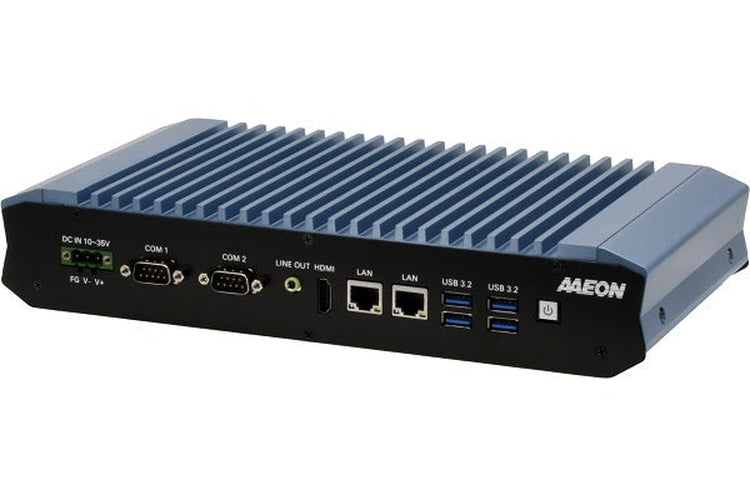

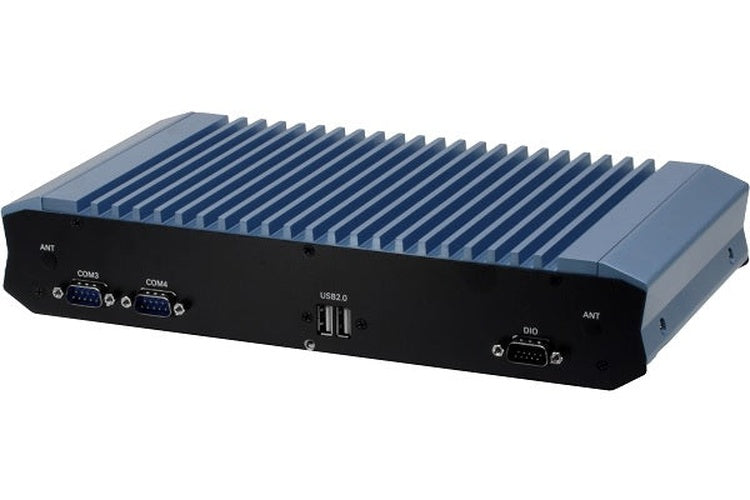

Name: AAEON BOXER-6642-CML (Intel 10 Gen, 2 LAN, 4 COM, DIO, 10-35VDC)
Brand: AAEON
SKU: BOXER-6642-CML
Price: 905.0 EUR
Availability: InStock

AAEON BOXER-6642-CML (Intel 10 Gen, 2 LAN, 4 COM, DIO, 10-35VDC)

Price excludes VAT 905.00€

Total with VAT (23%): 1,113.15€

Shipping calculated at checkout.

SKU: BOXER-6642-CML

Product type: Industrial PCs

Manufacturer: AAEON

BOXER-6642-CML-A1-1010

Fanless Embedded Box PC for 10th Generation Intel® processors

Extreme computing power & graphics display capability
DDR4 slots x 2, up to 64GB
Supports high-speed NVMe storage (M.2 2280)
GbE LAN x 2, RS232/422/485 x 4
Supports Intel® AMT
Supports TPM 2.0
Wide-range 10-35V DC input
Wide operating temperature range, 0 ~ 45°C

The BOXER-6642-CML is AAEON's first fanless industrial PC to offer 11th Generation Intel Core i3/i5/i7/i7/i9 processors (up to 35W). The system can be easily scaled or upgraded to meet the performance requirements of any application. In addition, its sleek design, measuring only 54 mm thick, allows it to fit into almost any confined space and be deployed exactly where it is needed.

The BOXER-6642-CML features an M.2 2280 (M-key) slot driven by PCIE 3.0 [x4], with support for high-speed NVME SSDs. It also includes an M.2 2230 (e-key) slot for Wi-Fi or Bluetooth connectivity. The BOXER-6642-CML is also equipped with a full-size mini card slot supporting PCIE and MSATA, as configured through the BIOS.

The BOXER-6642-CML features a fanless design that keeps dust and other contaminants out, enabling reliable, long-lasting operation. It also features a wide voltage input range (10 to 35V) and delivers consistent operation without performance loss at temperatures from 0 ° C to 45 ° C.

The BOXER-6642-CML offers a wide range of I/O features, including four COM ports, four USB3.2 Gen 2 ports and two Gigabit Ethernet ports, with support for Intel® VPro and Intel® AMT. The Boxer-6642-CML also provides flexible storage options, supporting NVME, mSATA and 2,5 ” SATA III (6,0 Gbps) storage devices. The Boxer-6642-cml can also connect easily to cellular networks through its integrated SIM card slot, providing even greater communication flexibility.

Packing List

Wall-mount Bracket x 2
3-pin DC-in power connector x 1
Screw Package x 1
BOXER-6642-CML x 1

SYSTEM
CPU	Intel® i7-9700TE Intel® i7-8700T Intel® i5-8500T Intel® i3-8100T Pentium® G5400T Celeron® G4900T
CHIPSET	Intel® C246/H310
SYSTEM MEMORY	DDR4-2666 SO-DIMM slots x 2, Up to 64GB, ECC or Non-ECC support
DISPLAY INTERFACE	HDMI x 2
STORAGE DEVICE	2.5” SATA HDD/SSD bays x 2
ETHERNET	Intel® i211 x 3, i219 x 1
I/O	HDMI x 2 RJ-45 x 4 for GbE LAN (i211 x 3, i219 x 1) USB 3.2 Gen 1 x 4, USB2.0 x 4 (A1 model) USB 3.2 Gen 1 x 8 (A2 model) DB-9 x 6 for RS-232/422/485 10-pin terminal block for 8-bit DIO Audio x 1 (MIC-in, Line-out) 3-pin 10~35V power input x 1 Power button x 1 Remote power switch x 1 Reset button x 1
EXPANSION	Full-size Mini PCIe x 1 Full-size Mini Card x 1 (PCIe/mSATA switching via BIOS, default: mSATA) SIM slot x 1
INDICATOR	HDD LED x 1 SYS LED x 1
OS SUPPORT	Windows® 10 64-bit Linux Ubuntu 20.04.2
POWER SUPPLY
POWER REQUIREMENT	3-pin DC input, 10~35V
MECHANICAL
MOUNTING	Wall-mount kit
DIMENSIONS (W X H X D)	10.4” x 3.19” x 6.15” (264.2mm x 80.92mm x 156.2mm)
GROSS WEIGHT	10.4 lb (4.7 kg)
NET WEIGHT	8.2 lb (3.7 kg)
ENVIRONMENTAL
OPERATING TEMPERATURE	-40°F ~ 158°F (-40°C ~ 70°C), according to IEC68-2-14, with 0.5 m/s Airflow
STORAGE TEMPERATURE	-40°C ~ 80°C
STORAGE HUMIDITY	5 ~ 95% @ 40C, non-condensing
ANTI-VIBRATION	2 Grms/ 5 ~ 500Hz/ during operation (with SSD)
ANTI-SHOCK	—
CERTIFICATION	CE/FCC Class A

Ordering Information [BOXER-6641-PRO]

PART NUMBER	BOXER-6641-PRO-A1-1010	BOXER-6641-PRO-A2-1010
CHIPSET	H310	C246
LAN	4	4
USB	USB 3.2 Gen 1 x 4 USB 2.0 x 4	USB 3.2 Gen 1 x 8
DIO	8bit	8bit
RS-232/422/485	6	6
AUDIO	Mic-in Line-out	Mic-in Line-out
STORAGE	Internal 2.5” SATA drive bay x 2	Internal 2.5” SATA drive bay x 2
DISPLAY	HDMI x 2	HDMI x 2
EXPANSION	Full-size Mini-Card x 2 SIM x 1	Full-size Mini-Card x 2 SIM x 1
MOUNTING	Wall mount	Wall mount
POWER	10~35V	10~35V
OPERATING TEMPERATURE	-40°F ~ 158°F (-40°C ~ 70°C), according to IEC68-2-14, with 0.5 m/s airflow	-40°F ~ 158°F (-40°C ~ 70°C), according to IEC68-2-14, with 0.5 m/s airflow
