AAEON BOXER-6750 (Intel Core™ i3-6100U, 2* GLAN, 4* COM, 9-30VDC)

BOXER-6750-A1-1011

Din Rail Mount Embedded BOX PC com Intel® Core™ i3- 6100U

• U-Series CPU: Intel® Core™ i3- 6100U
• DDR4 2133 MHz SODIMM x 1, Maximum Memory up to 16GB
• Supports Industrial-Grade Intel® GbE LAN x 2
• Supports BIOS-Selectable RS-232/422/485 x 4
• VGA + HDMI Dual Display Output
• USB 3.2 Gen 1 x 4
• 8-bit Digital Input and Output x 1 (Optional)
• Wide-Range DC 9~30V Input with Power Protection
• Wide Temperature Range: -20 °C ~ 60 °C

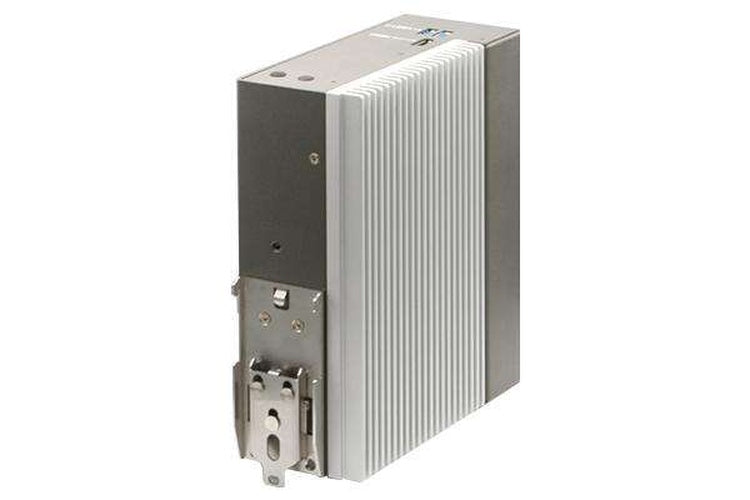

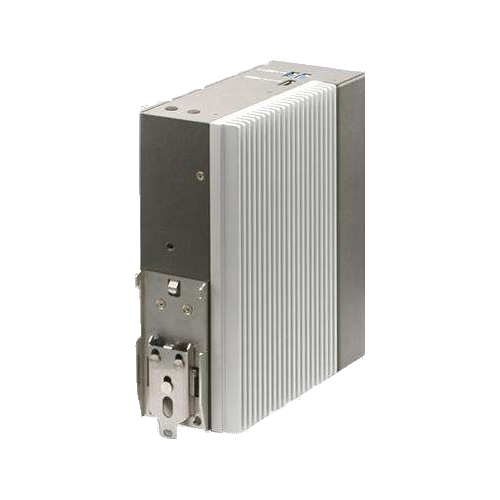

• DIN-Rail Mount Design

The compact BOXER-6750 measures only 69mm x 183mm x 155mm and is equipped with the Intel® Core™ i3-6100U or, for customers with lower performance requirements, the Intel® Celeron® 3955U. The system also features a DDR4 SODIMM slot for up to 16GB of memory, a 2.5” SATA drive bay, and an optional mSATA slot.

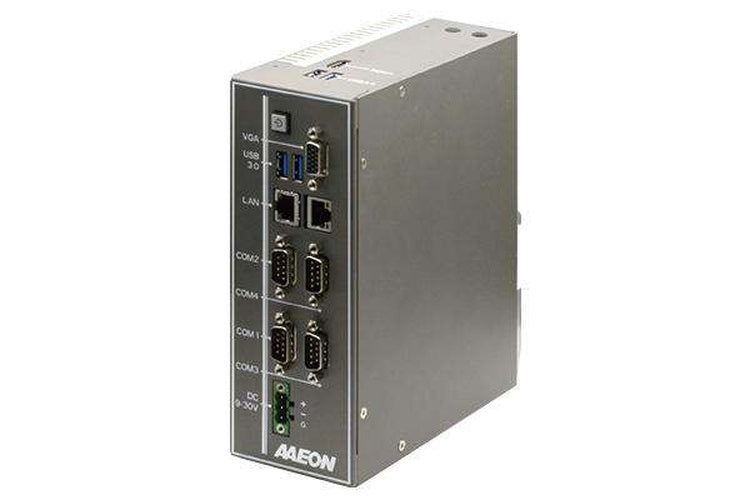

This high-performance PC is ideal for SCADA applications and, with four USB 3.2 Gen 1 ports, two LAN ports, and four COM ports, can be easily connected to a range of peripheral devices. The VGA and HDMI ports also support dual display output. AAEON can also work with customers to customize the system, providing up to six USB 3.2 Gen 1 ports and six COM ports.

The BOXER-6750 features two full-size Mini Card slots that support expansion options such as the AI Core X mPCIe module. Featuring the Intel Movidius Myriad X VPU, the AI Core X turns the BOXER-6750 into a powerful, compact machine vision and machine learning platform.

The BOXER-6750 is also suitable for factory automation solutions and is designed to operate in harsh factory environments. It has an operating temperature range of -20°C to 60°C and a 9 to 30V power input range.

Applications

• ITS Controller
• Assembly Inspection
• Robot Controller

Included

• DIN-Rail Bracket x 1
• Screw Package x 1
• 3-Pin DC-In Power Connector x 1
• BOXER-6750
