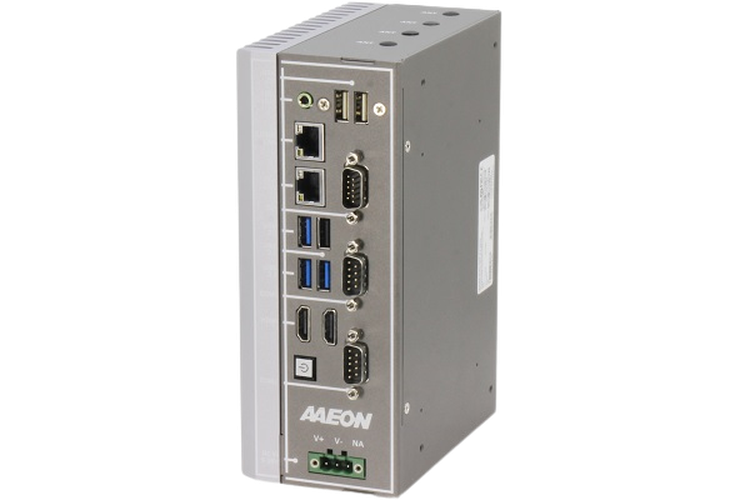

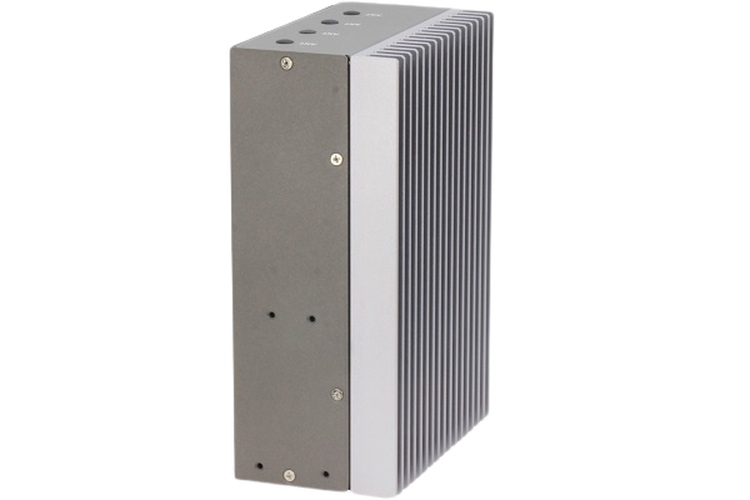

AAEON BOXER-6751-ADP-A3-1010 (Intel Core™ i7-1265UE, 2* GLAN, 9-36VDC)
Price excludes VAT
1,378.00€
Sale price
Price excludes VAT
1,378.00€
Regular price
Total with VAT (23%): 1,694.94€
Shipping calculated at checkout.
BOXER-6751-ADP-A3-1010
DIN-rail-mount embedded BOX PC with a 12th-generation Intel® Core™ i7-1265UE.
- 12th Gen Intel® Core™ Processors
- DDR4 SODIMM, Max. 32GB
- USB 3.2 Gen 2 x 3 + USB 2.0 x 3
- 2.5GbE x 1 (Intel® I226-LM) + GbE x 1 (Intel® I219-LM)
- RS-232/422/485 x 2
- HDMI x 2 dual display output
- 8-bit digital input and output x 1
- M.2 3052 B-Key for 5G
- Onboard TPM 2.0
- Wide 9 ~ 36V DC input range with power protection
- Wide -20°C ~ 60°C temperature range
- DIN rail-mount design
The BOXER-6751-ADP is designed to simplify Industry 4.0 integration. With enhanced durability provided by its distinctive design, it is purpose-built to add value to smart factory and offshore energy applications. A compact, mountable chassis houses a dense selection of interfaces powered by 12th Gen Intel® Core™ Processors, alongside an array of accessible expansion slots. This sophistication is complemented by rugged features such as wide input-voltage and temperature ranges, ensuring operation in the harshest environments.
Included
- BOXER-6751-ADP x 1
- DIN Rail Kit x 1
- Screw Package x 1
- 3 Pin DC-In Power Connector x 1
| SYSTEM | |
| CPU | Intel® Core™ i7-1265UE Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE |
| CHIPSET | Intel® SoC |
| SYSTEM MEMORY | DDR4 SODIMM x 1, up to 32GB |
| DISPLAY INTERFACE | HDMI 1.4b (Type-A) x 2 |
| STORAGE DEVICE | 2.5” SATA III drive bay x 1 M.2 2280 M-Key x 1 (PCIe [x4]) |
| ETHERNET | RJ-45 x 1 for Intel® I226-LM, 2.5GbE RJ-45 x 1 for Intel® I219-LM, GbE |
| I/O | USB 3.2 Gen 2 (Type-A) x 3 USB 2.0 (Type-A) x 3 DB-9 x 2 for RS-232/422/485 DB-15 x 1 for 8-bit DIO HDMI 1.4b (Type-A) x 2 Audio x 1 for Line-Out Power button x 1 3-pin terminal block for DC-in x 1 Antenna opening x 4 |
| EXPANSION | M.2 2230 E-Key x 1 (Wi-Fi/BT) M.2 3052 B-Key with SIM x 1 (LTE/5G) M.2 2280 M-Key x 1 (NVMe) |
| INDICATOR | Power button with LED |
| OS SUPPORT | Windows® 10 IoT Ent LTSC Windows® 11 PRO Ubuntu 22.04 |
| POWER SUPPLY | |
| POWER REQUIREMENT | DC 9 - 36V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | DIN rail mounting Wall mounting (mounting kit is optional) |
| DIMENSIONS (W X H X D) | 2.93” x 7.32” x 5.0” (74.3mm x 186mm x 127mm) |
| GROSS WEIGHT | 5.3 lb (2.41 Kg) |
| NET WEIGHT | 3.9 lb (1.77 Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~140°F (-20°C ~ 60°C), IEC68-2 with 0.5 m/s airflow |
| STORAGE TEMPERATURE | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40˚C, non-condensing |
| ANTI-VIBRATION | With SSD: random, 3 Grms, 5~500Hz |
| ANTI-SHOCK | — |
| CERTIFICATION | CE/FCC Class A |
Accessories
| 1702031802 | Power Cord (US type) |
| 1702031803 | Power Cord (European Type) |
| 170203180E | Power Cord (Japanese Type) |
| 1255X00059 | 120W power adapter |
