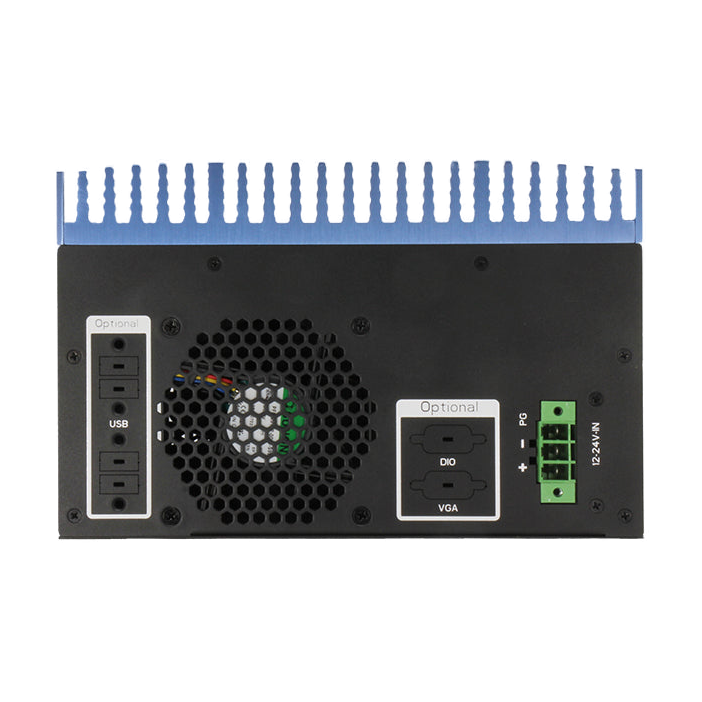

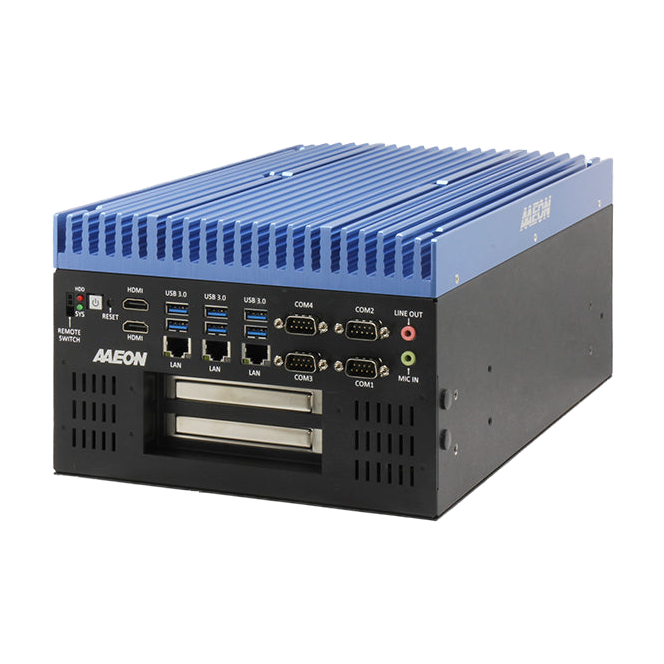

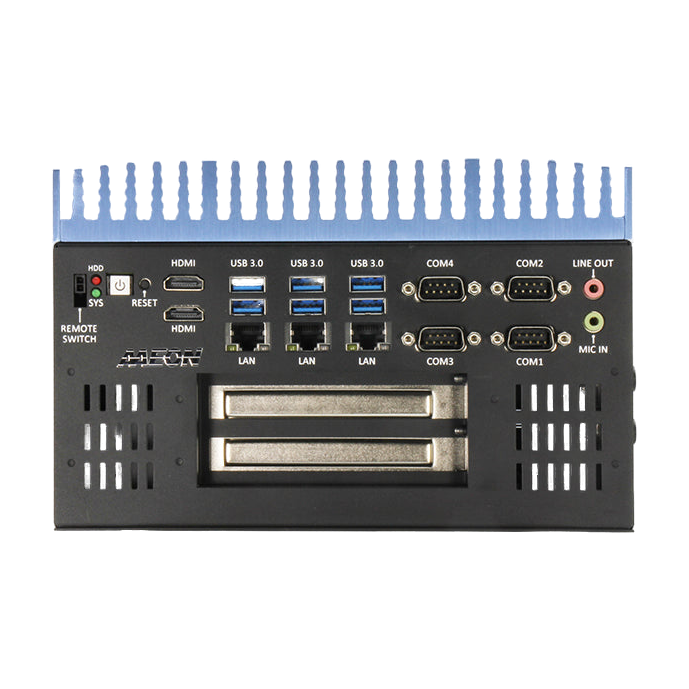

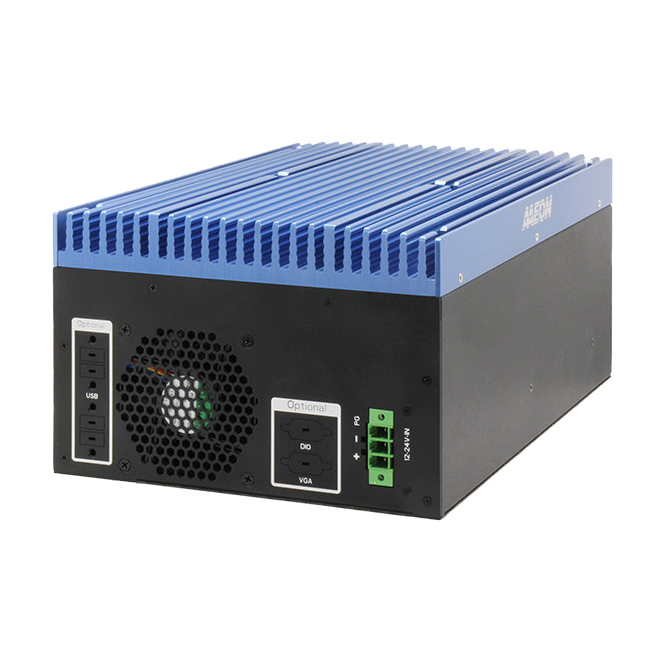

AAEON BOXER-6840-CFL (Intel 8/ 9 Gen, 3 LAN, 4 COM, 2 HDMI, 12-24VDC)

The Boxer-6840-CFL is designed to bring the high performance of 8th/ 9th generation Intel® Core ™ processors (formerly known as Coffee Lake/ Coffee Lake) to industrial embedded applications. The system supports processors with up to 71W TDP and, with its innovative thermal design, enables uninterrupted performance at temperatures from -20 ° C to 60 ° C. This platform supports up to 128 GB of memory for high-level performance.



The Boxer-6840-CFL is designed for expandability and flexibility, meeting the needs of any application with two Mini Card slots, M.2, PCIE [x4], and one PCIE [x16] slot supporting actively cooled graphics cards up to 250mm long and 250W TDP. Its I/O capabilities allow the system to connect to a wide range of cameras, sensors, and controllers through six USB3.2 Gen1 ports, four COM ports, three Gigabit Ethernet ports, and optional 8-bit DIO. The system is designed for confined spaces, allowing it to fit easily inside machine cabinets and close to where performance is required.
