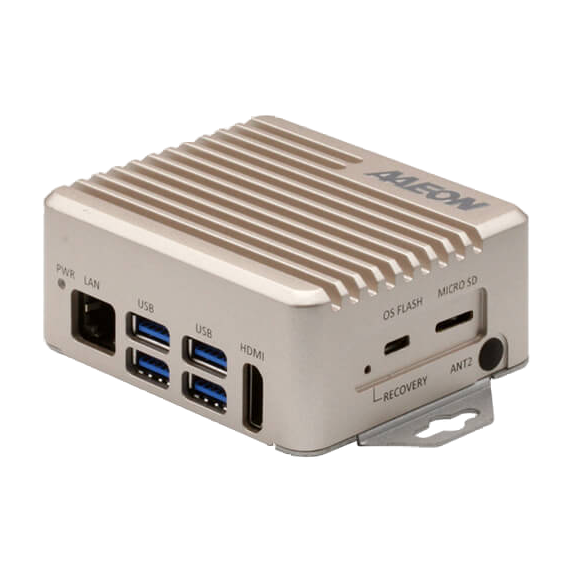

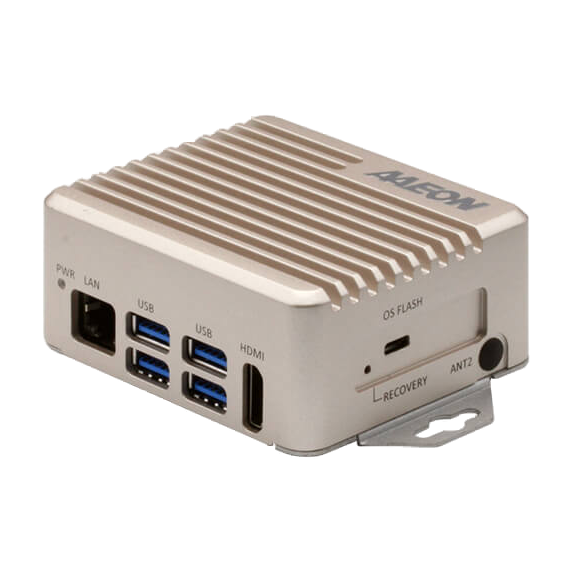

AAEON BOXER-8221AI-B3-1111 (Jetson Nano, 4GB/ 32GBeMMC, NVIDIA Jetpack 4.5)
BOXER-8221AI
Fanless embedded Edge AI Box PC with NVIDIA Jetson Nano
- NVIDIA Jetson nano
- Quad-core ARM® A57 processor
- 4GB LPDDR4 + 16GB Micro-SD or eMMC
- LAN x 1 + RS-232 x 2
- 12Vdc power input
The BOXER-8221AI is a compact AI@Edge system powered by the NVIDIA Jetson Nano, NVIDIA’s latest Edge computing technology. The Jetson Nano SoC combines a quad-core ARM Cortex®-A57 MPCore processor with NVIDIA Maxwell™ GPU architecture featuring 128 NVIDIA CUDA® cores. This innovative design enables processing speeds of up to 472 GFLOPs and can run multiple neural networks or process several high-resolution images simultaneously. The NVIDIA Jetson Nano also provides the BOXER-8221AI with 4GB of RAM and 16 GB of eMMC storage.
Powered by the NVIDIA Jetson Nano, the BOXER-8221AI offers performance and pricing suitable for entry-level to mid-range deployments of AI and Edge computing applications. With four USB 3.2 Gen 1 ports and two COM ports, the BOXER-8221AI provides the flexibility required for integration into a wide range of Edge computing applications and projects.
The BOXER-8221AI reflects AAEON’s commitment to providing rugged embedded PCs for industrial use. Its fanless design ensures long-term, reliable operation by preventing dust and other contaminants from interfering with the components. The BOXER-8221AI’s thermal design also allows the system to operate at temperatures from -20°C to 50°C without any loss of performance, making it ideal for stable operation in almost any work environment.
| SYSTEM | |
| AI ACCELERATOR | Nvidia Jetson Nano |
| CPU | Quad Core ARM® Cortex®-A57 MPCore Processor |
| SYSTEM MEMORY | 4GB LPDDR4 |
| STORAGE DEVICE | 32GB Micro-SD (version A) or 16GB eMMC (version B) |
| DISPLAY INTERFACE | HDMI 2.0 |
| ETHERNET | 10/100/1000Base-TX x 1 |
| I/O | USB 3.2 Gen 1 x 4 LAN x 1 RS-232 x 2 HDMI x 1 MicroSD x 1 DC Power Input x 1 Recovery Button x 1 Micro-USB for OS Installation x 1 |
| EXPANSION | M.2 E-Key 2230 x 1 (for WiFi) |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (AAEON ACLinux 4.9) Linux (NVIDIA Jetpack 4.5) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 12Vdc with 2-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wall Mount |
| DIMENSIONS | 3.39” x 2.87” x 1.3” (88mm x 75mm x 39mm) |
| GROSS WEIGHT | 1.10 lb (0.5 Kg) |
| NET WEIGHT | 0.66 lb (0.3 Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 122°F (-20°C ~ 50°C, according to IEC60068-2 with 0.5 m/s airflow) |
| STORAGE TEMPERATURE | -49°F ~176°F (-45°C ~ 80°C) |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation – MicroSD or eMMC |
| ANTI-SHOCK | — |
| CERTIFICATION | CE/FCC class A |
Ordering Information [BOXER-8221AI]
| PART NUMBER | BOXER-8221AI-A2-1110 | BOXER-8221AI-A4-1110 | BOXER-8221AI-B1-1111 | BOXER-8221AI-B3-1111 |
|---|---|---|---|---|
| AI SOLUTION | Jetson Nano | Jetson Nano | Jetson Nano | Jetson Nano |
| LAN | 1 | 1 | 1 | 1 |
| USB | USB 3.2 Gen 1 x 4 | USB 3.2 Gen 1 x 4 | USB 3.2 Gen 1 x 4 | USB 3.2 Gen 1 x 4 |
| RS-232 | 2 | 2 | 2 | 2 |
| STORAGE | 32GB MicroSD x 1 | 32GB MicroSD x 1 | 16GB eMMC MicroSD Slot x 1 | 16GB eMMC MicroSD Slot x 1 |
| DISPLAY | HDMI x 1 | HDMI x 1 | HDMI x 1 | HDMI x 1 |
| MOUNTING | Wall mounting | Wall mounting | Wall mounting | Wall mounting |
| POWER | 12Vdc with 2-pin terminal block | 12Vdc with 2-pin terminal block | 12Vdc with 2-pin terminal block | 12Vdc with 2-pin terminal block |
| OPERATING TEMPERATURE | -20°C ~ 50°C | -20°C ~ 50°C | -20°C ~ 50°C | -20°C ~ 50°C |
| OPERATING SYSTEM | ACLinux | NVIDIA Jetpack 4.5 | ACLinux | NVIDIA Jetpack 4.5 |
