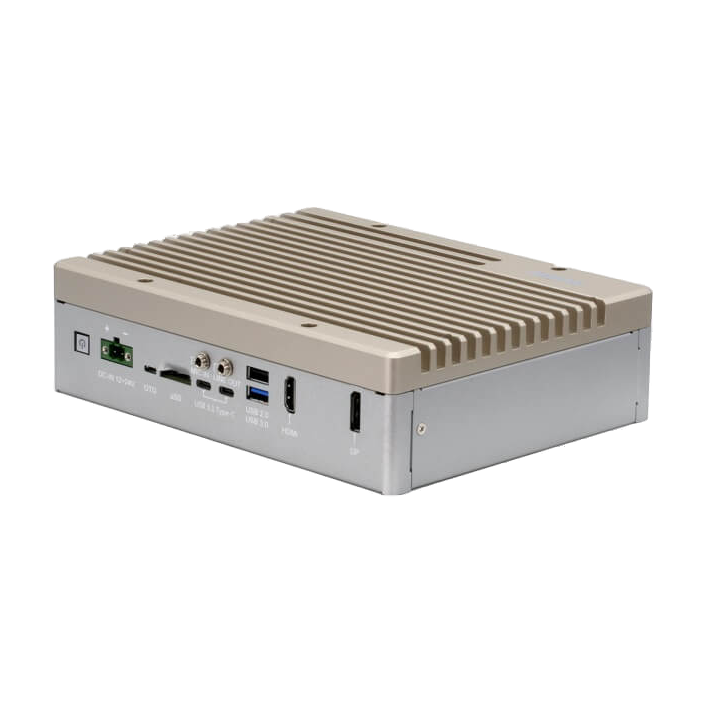

The BOXER-8240AI embedded AI Edge system features the NVIDIA® Jetson AGX Xavier™ combined with industrial rugged design, allowing developers to bring more AI edge applications wherever they’re needed.
The heart of the BOXER-8240AI is the innovative and powerful NVIDIA Jetson AGX Xavier; featuring the Volta GPU which packs an astonishing 512 CUDA cores and 64 Tensor cores, offering AI processing speeds up to 32 TOPS. The AGX Xavier also features several power modes, allowing developers and users to adjust the system to their needs, whether it’s for more power efficiency or maximizing performance. The BOXER-8240AI is built with and innovative fanless design that allows the Jetson AGX Xavier SoC to operate in ambient temperatures from -10°C to 55°C without a loss in performance while keeping out dust and other contaminants.

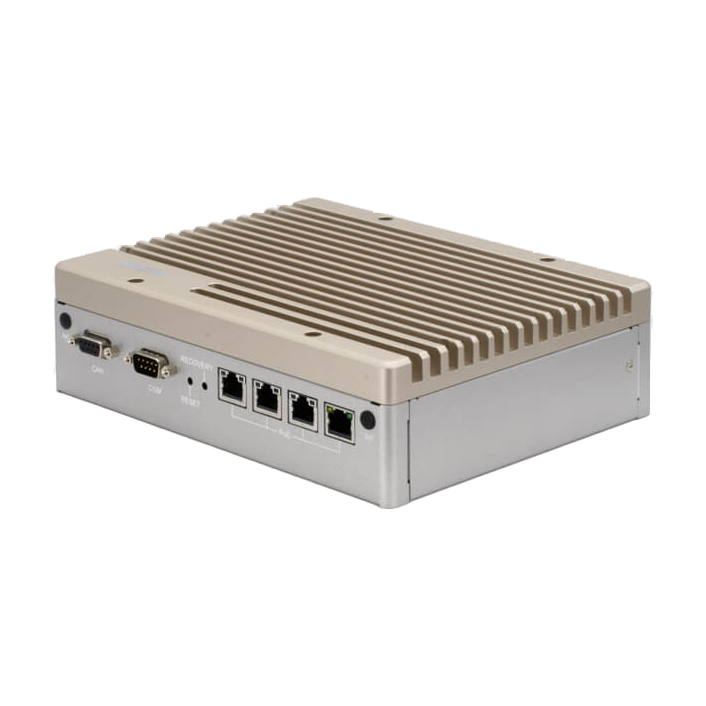

The BOXER-8240AI is designed to combine AI, control and communication into a single platform solution. It’s flexible range of I/O features include four PoE Gigabit Ethernet ports each designed to deliver 1 Gbps speeds, powering connected cameras while ensuring delay free streaming for real-time video processing. The BOXER-8240AI also features a 40-pin I/O connector and dual COM RS-485 ports, as well as USB3.2 Gen 1 and USB2.0 Type A ports, two USB3.2 Gen 1 Type C ports, and audio line in (mic) and audio line out ports.

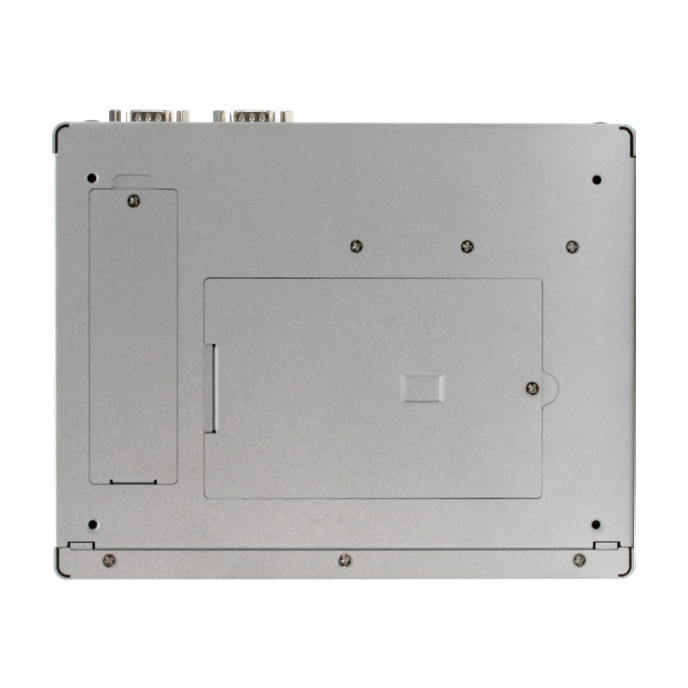

The BOXER-8240AI provides expandability with M.2 2230 E-key slot, perfect for wireless communication such as Wi-Fi, giving the BOXER-8240AI the ability to deploy as a powerful Edge Network Gateway. The BOXER-8240AI also provides flexible and fast storage with M.2 2280 NVMe slot and SATA III (6.0 Gbps) storage, easy to install with easy access panels on the bottom of the system.
With this combination of AI, control and communication, the BOXER-8240AI is at home in just about any application, whether powering a single demanding task such as AGV pathfinding or collision avoidance for smart factory robots, or running multiple AI inferences side by side to provide greater coverage for intelligent security and crowd monitoring for compliance with health requirements during the ongoing pandemic.
| SYSTEM | |
| AI ACCELERATOR | Nvidia AGX Xavier |
| CPU | 8-core ARM v8.2 64bit CPU, 8MB L2 + 4MB L3 |
| SYSTEM MEMORY | 32 GB 256-Bit LPDDR4 x 1 137 GB/s |
| STORAGE DEVICE | 32GB eMMC 5.1 Micro SD card slot 2.5” SATA drive bay M.2 Key M 2280 |
| DISPLAY INTERFACE | HDMI 2.0 x 1 |
| ETHERNET | 10/100/1000 Base-TX x 1 IEEE 802.11 af PoE LAN x 4 |
| I/O | PoE x 4 (IEEE 802.af, total 60W) USB Type A x 1 for USB 3.2 Gen 1 USB Type C x 2 for USB 3.2 Gen 1 USB Type A x 1 for USB 2.0 RS-232/422/485 x1 CANBUS x 1 HDMI 2.0 x1 DP 1.4 x 1 Mic-in x 1 Line-out x 1 MicroSD slot x 1 Micro USB x 1 for O.S Flash Recovery button x 1 Power button x 1 |
| EXPANSION | Expansion header 40-pin GPIO compliance with Nvidia Dev Kit 40 pins (4 pins CANBUS occupied) USB 2.0 header x 1 (Optional, circuit reserved) M.2 Key E 2230 x 1 for WiFi/Bluetooth (PCIe[x1] + USB) M.2 Key M 2280 x 1 (PCIe[x4]) SATA x 1 RS-232/422/485 pin header x 1 |
| INDICATOR | Power LED x1 |
| OS SUPPORT | Linux (AAEON ACLinux 4.9) Linux (NVIDIA Jetpack 4.5) |
| POWER SUPPLY | |
| POWER REQUIREMENT | DC 12V~24V 2-pin terminal |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSION | 8.26” x 6.46” x 2.32” (210mm x 164.2mm x 59mm) |
| GROSS WEIGHT | 6 lbs (2.72kg) |
| NET WEIGHT | 4.23 lbs (1.92kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 14°F ~ 131°F (-10°C ~ 55°C, according to IEC60068-2 with 0.5 m/s AirFlow) |
| STORAGE TEMPERATURE | -40 °F ~ 158°F(-40°C ~ 70°C) |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | Random, 3 Grms, 5 ~ 500Hz |
| ANTI-SHOCK | — |
| CERTIFICATION | CE/FCC Class A |
| PART NUMBER | BOXER-8240AI-A1-1010 | BOXER-8240AI-A2-1010 | BOXER-8240AI-A3-1010 | BOXER-8240AI-A4-1010 |
|---|---|---|---|---|
| AI SOLUTION | NVIDIA AGX Xavier | NVIDIA AGX Xavier | NVIDIA AGX Xavier | NVIDIA AGX Xavier |
| POE | 4 | 4 | 4 | 4 |
| USB | USB 3.2 Gen 1 x 2 + 2 (TypeA+C) | USB 3.2 Gen 1 x 2 + 2 (TypeA+C) | USB 3.2 Gen 1 x 2 + 2 (TypeA+C) | USB 3.2 Gen 1 x 2 + 2 (TypeA+C) |
| RS-232/422/485 | 1 | 1 | 1 | 1 |
| CANBUS | Dual Canbus in one Connector | Dual Canbus in one Connector | Dual Canbus in one Connector | Dual Canbus in one Connector |
| STORAGE | eMMC / M.2 M Key / Micro-SD / 2.5” SATA | eMMC / M.2 M Key / Micro-SD / 2.5” SATA | eMMC / M.2 M Key / Micro-SD / 2.5” SATA | eMMC / M.2 M Key / Micro-SD / 2.5” SATA |
| EXPANSION | M.2 E Key 40-pin DIO | M.2 E Key 40-pin DIO | M.2 E Key 40-pin DIO | M.2 E Key 40-pin DIO |
| DISPLAY | HDMI x 1 DP x1 | HDMI x 1 DP x1 | HDMI x 1 DP x1 | HDMI x 1 DP x1 |
| AUDIO | MIC-in x1 LINE-OUT x1 | — | MIC-in x1 LINE-OUT x1 | — |
| MOUNTING | Wallmount | Wallmount | Wallmount | Wallmount |
| POWER | DC 12V~24V | DC 12V~24V | DC 12V~24V | DC 12V~24V |
| OPERATION TEMP | -10°C ~ 55°C | -10°C ~ 55°C | -10°C ~ 55°C | -10°C ~ 55°C |
| OPERATION SYSTEM | ACLinux | ACLinux | NVIDIA Jetpack 4.5 | NVIDIA Jetpack 4.5 |
