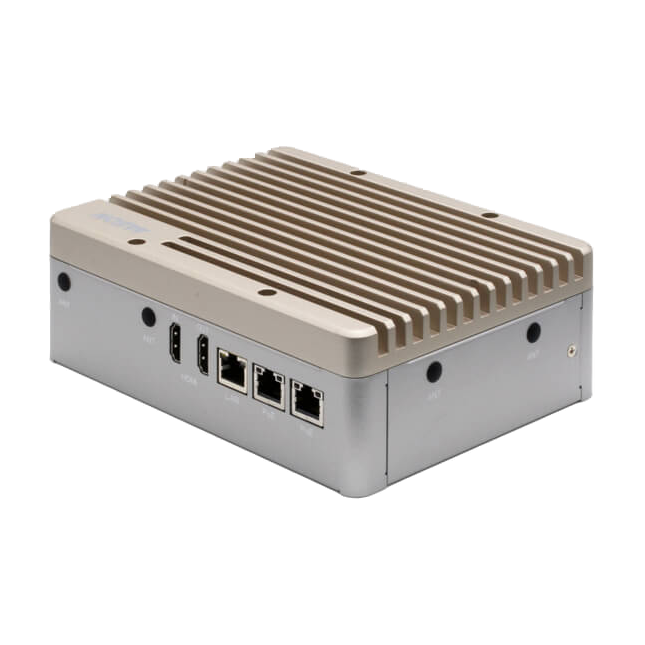

AAEON BOXER-8253AI (NVIDIA Xavier NX, 8GB/ 16GB, CANbus, DIO)
BOXER-8253AI
Compact fanless embedded BOX PC for AI Edge applications with NVIDIA® Jetson Xavier™ NX
- NVIDIA® Jetson Xavier™ NX
- 8GB LPDDR4x
- Multiple storage options: 16GB eMMC / MicroSD slot / mSATA slot / 2.5 drive bay
- GbE PoE/PSE LAN x 2
- HDMI input x 1 & HDMI output x 1
- Digital I/O 13-channel
- Expansion support for WiFi/LTE

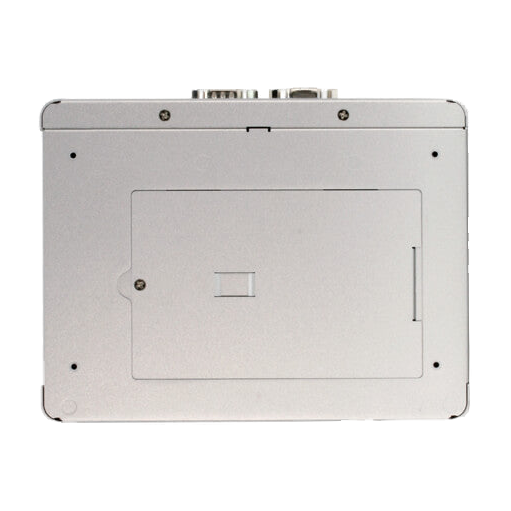

The BOXER-8253AI brings the power of the NVIDIA® Jetson Xavier™ NX and combines it with the flexibility of PoE PSE support and HDMI input. The NVIDIA Jetson Xavier NX SoC features a six-core 64-bit ARM processor with 384 CUDA® cores, 48 Tensor Cores, and two NVDIA engines capable of running multiple neural networks in parallel, delivering accelerated computing performance of up to 21 TOPS. The system provides 8GB of onboard LPDDR4 memory and 16GM of onboard eMMC storage, which can be expanded using a microSD card, an mSATA module, or a 2.5” SATA III (6.0 Gbps) drive that is easy to install through the quick-access panel.
The BOXER-8253AI is designed with an I/O configuration that enables flexible deployment in any application. The BOXER-8253AI features two PoE PSE ports (802.3af), delivering up to 60W of total power. In addition, HDMI input brings new capabilities to the BOXER-8253AI platform, allowing developers and users to quickly add AI-powered visual analysis to a broad range of applications, from NVR surveillance systems to security-checkpoint X-ray scanners and medical devices.
The BOXER-8253AI also offers expandability through its Mini Card slot and M.2 2230 slot, allowing users and developers to quickly add functionality such as Wi-Fi network support. The BOXER-8253AI also provides a flexible I/O configuration, including four USB3.2 Gen 2 ports and COM and DIO ports, designed to connect to a wide range and number of sensors, control devices, and other equipment.
| SYSTEM | |
| AI ACCELERATOR | NVIDIA® Jetson Xavier™ NX |
| CPU | 6-core ARM® Carmel®V8.2 64bit CPU, 6MB L2 + 4MB L3 |
| SYSTEM MEMORY | 8GB LPDDR4x |
| STORAGE DEVICE | eMMC 16GB MicroSD slot x 1 Full-size mSATA (sharing a slot with a full-size minicard module) 2.5” SATA drive bay x 1 |
| DISPLAY INTERFACE | HDMI Type A for HDMI 2.0 x 1 |
| ETHERNET | RJ-45 x 2 for GbE PoE/PSE (802.3at) RJ-45 x 1 for GbE LAN |
| I/O | USB Type A x 4 for USB 3.2 Gen 1 USB Micro A/B x 1 for OS Flash RJ-45 x 2 for PoE/PSE (802.3at) (total 60W) RJ-45 x 1 for GbE LAN DB-9 x 1 for RS-232/485 & CANbus DB15 x1 for 13-channel digital I/O (programmable) Recovery button x 1 MicroSD card slot x 1 Antenna opening x 4 HDMI Type A for HDMI 2.0 output x 1 HDMI Type A for HDMI 1.4 input x 1 Power button x 1 |
| EXPANSION | Full-size minicard slot x1 (PCIe/USB/mSATA, PCIe by default) M.2 E-Key 2230 x 1 (for Wi-Fi) SIM socket x 1 SATA III (6.0 Gbps) port x 1 for 2.5” drive |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (AAEON ACLinux4.9) Linux (NVIDA Jetpack 4.5) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 12~24V DC with 2-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wall-mount kit |
| DIMENSIONS | 7.09 " x 5.35 " x 2.41" (180.0 mm x 136 .0 mm x 61.1 mm) |
| GROSS WEIGHT | 4.63 lbs. (2.1 kg) |
| NET WEIGHT | 2.87 lbs. (1.3 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | 5°F ~ 131°F (-15°C ~ 55°C with 0.5 m/s airflow) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3.5Grm / 5~500Hz / operation — eMMC, MicroSD, or mSATA |
| ANTI-SHOCK | 50G peak acceleration (11 msec. duration, eMMC, microSD, or mSATA) |
| CERTIFICATION | CE / FCC class A |
Ordering Information [BOXER-8253AI]
| PART NUMBER | BOXER-8253AI-A1-1011 | BOXER-8253AI-A3-1010 | BOXER-8253AI-JP46E-A1-1211 |
|---|---|---|---|
| AI ACCELERATOR | Jetson Xavier NX | Jetson Xavier NX | Jetson Xavier NX |
| LAN | 1 | 1 | 1 |
| POE | 2 | 2 | 2 |
| USB | USB 3.2 Gen1 x 4 | USB 3.2 Gen1 x 4 | USB 3.2 Gen1 x 4 |
| RS-232/485 AND CANBUS | 1 | 1 | 1 |
| STORAGE | 16GB eMMC / MicroSD slot / mSATA slot / 2.5 drive bay | 16GB eMMC / MicroSD slot / mSATA slot / 2.5 drive bay | 16GB eMMC / MicroSD slot / mSATA slot / 2.5 drive bay |
| DISPLAY | HDMI OUT x 1 | HDMI OUT x 1 | HDMI OUT x 1 |
| MOUNTING | Wall mount kit | Wall mount kit | Wall mount kit |
| POWER | DC 12V~24V | DC 12V~24V | DC 12V~24V |
| OPERATING TEMPERATURE | -15°C ~ 55°C with 0.5m/s airflow | -15°C ~ 55°C with 0.5m/s airflow | -15°C ~ 55°C with 0.5m/s airflow |
| OPERATING SYSTEM | ACLinux 4.9 | NVIDIA Jetpack 4.5 | NVIDIA Jetpack 4.6 |
