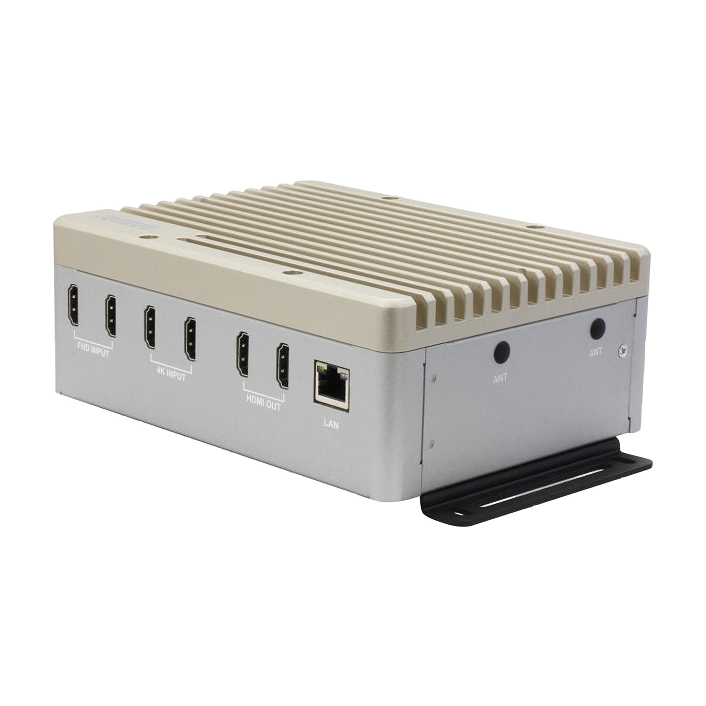

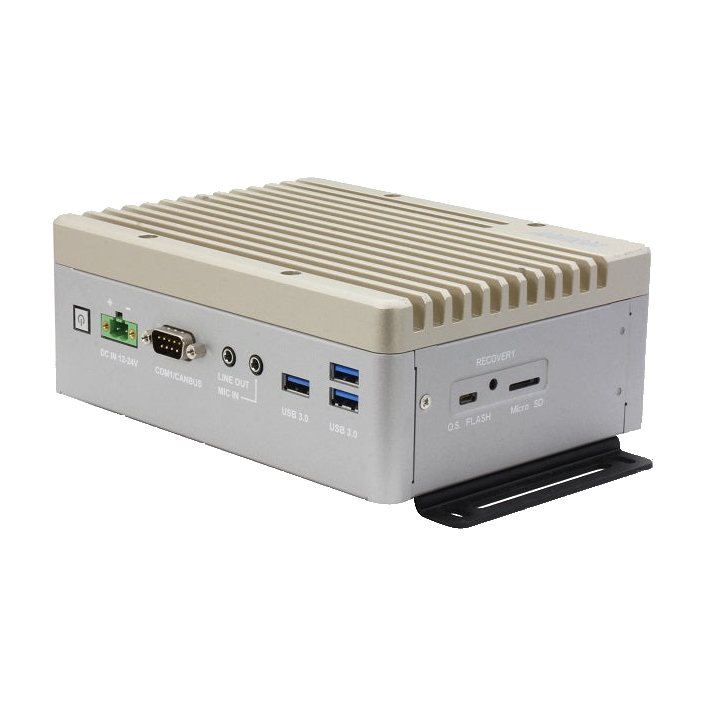

AAEON BOXER-8256AI (NVIDIA Jetson Xavier NX, 4 HDMI, 8GB/ 16GB)
Price excludes VAT
1,488.00€
Sale price
Price excludes VAT
1,488.00€
Regular price
Total with VAT (23%): 1,830.24€
Shipping calculated at checkout.
BOXER-8256AI-JP462E-A1-1010
AI@Edge fanless embedded AI system with NVIDIA® Jetson Xavier NX, 4x HDMI
- HDMI x 4 for video input 1.4
- HDMI x 2 for video output 2.0
- USB Type A x 3 for USB 3.2 Gen 1
- DB9 for RS-232/422/485 (selectable by switch) and CANbus x1
- RJ-45 x 1 for GbE LAN
- M.2 M-Key (PCIEx4)
- M.2 B-Key (PCIEx2 and USB 3.0)
- M.2 E-key (PCIEx1 and USB 2.0)
The BOXER-8256AI is AAEON's embedded PC with NVIDIA® Jetson Xavier™ NX, designed for smart healthcare equipment, digital signage and entertainment.
Its sophisticated, practical design, with four HDMI input ports, facilitates real-time stream filtering. The powerful performance of the Jetson Xavier NX enables multiple AI algorithms to run and live video streams to be analysed quickly and accurately.
The BOXER-8256AI also features a wide range of I/O interfaces, including CANbus, USB and audio, together with Wi-Fi/4G/5G wireless network connectivity and enhanced storage options such as eMMC and a 2,5" HDD.
Included
- Wall-mount bracket x 2
- Screw package x 1
- Power connector x 1
- BOXER-8256AI
| SYSTEM | |
| AI ACCELERATOR | NVIDIA Jetson Xavier NX |
| CPU | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU |
| SYSTEM MEMORY | 8GB LPDDR4x |
| STORAGE DEVICE | 16GB eMMC x 1 MicroSD slot x 1 M.2 M-Key 2280 x 1 (PCIE[x4]) 2.5” SATA x 1 |
| DISPLAY INTERFACE | HDMI 2.0 x 2 |
| ETHERNET | RJ-45 x 1 for GbE LAN |
| I/O | USB Type A x 3 for USB 3.2 Gen 1 DB9 for RS-232/422/485 (selectable by switch) and CANbus x1 HDMI x 2 for video output 2.0 HDMI x 4 for video input 1.4 (limitation stated in the user manual) Mic-in x 1, Line-Out x 1 Micro USB for OS flashing x 1 Power ON/OFF switch x 1 Recovery button x 1 SMA antenna hole x 2 |
| EXPANSION | M.2 B-Key 3042/3052 x 1 (PCIE[x2] + USB 3.0) M.2 E-key x 1(PCIE[x1] + USB 2.0) |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (NVIDIA Jetpack 4.6.2 or later) |
| POWER SUPPLY | |
| POWER REQUIREMENT | DC-in 12-24V with 2-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wall-mount kit |
| DIMENSIONS | 7.09" x 5.35" x 2.64" (180 mm x 136 mm x 67 mm ) |
| GROSS WEIGHT | 4.23 lb (1.92 kg) |
| NET WEIGHT | 2.87 lb (1.3 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -5°F ~ 140°F (-15°C ~ 60°C with 0.5 m/s airflow) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3.5 Grms/ 5 ~ 500Hz/ operation – eMMC |
| SHOCK RESISTANCE | 50G, IEC 60068-2-27, half-sine, 11 ms duration – eMMC |
| CERTIFICATION | CE / FCC Class A |
Ordering information [BOXER-8256AI]
| PART NUMBER | BOXER-8256AI-JP462E-A1-1010 |
|---|---|
| AI SOLUTION | Jetson Xavier NX |
| LAN | 1 |
| USB | USB 3.2 Gen 1 x 3 |
| CANBUS | 1 (by switch) |
| RS-232/422/485 | 1 (by switch) |
| DIGITAL I/O | — |
| AUDIO | Mic-in x 1 Line-Out x 1 |
| STORAGE | 16GB eMMC MicroSD slot x 1 M.2 M Key x 1 2.5” SATA x 1 |
| DISPLAY | HDMI x 2 |
| EXPANSION | M.2 B key x 1 M.2 E key x 1 SATA connector and 5V x 1 COM pin header x 1 |
| MOUNTING | Wallmount |
| POWER | DC 12V~24V |
| OPERATING TEMPERATURE | -15°C ~ 60°C |
| OPERATING SYSTEM | NVIDIA Jetpack 4.6.2 |
| 1255X00023 | 60W power adapter |
| 1702031802 | Power cord (US type) |
| 1702031803 | Power cord (European type) |
| 170203180E | Power cord (Japanese type) |
