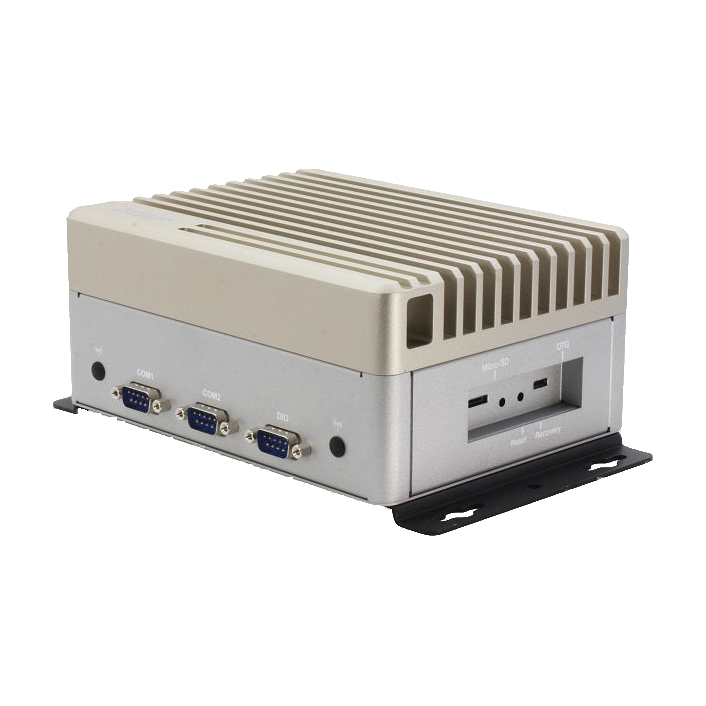

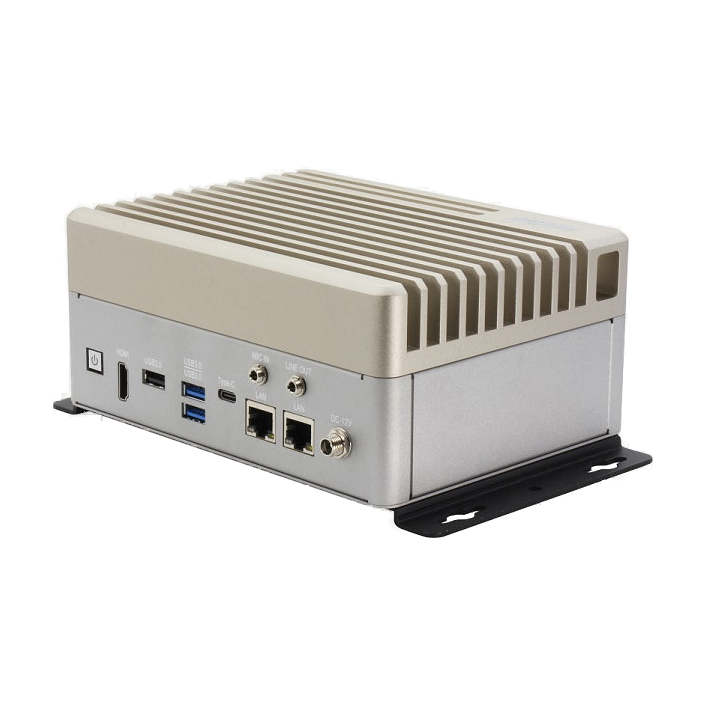

AAEON BOXER-8641AI (NVIDIA® Jetson AGX Orin, 2 GLAN, 32GB LPDDR5)
Price excludes VAT
2,350.00€
Sale price
Price excludes VAT
2,350.00€
Regular price
Total with VAT (23%): 2,890.50€
Shipping calculated at checkout.
BOXER-8641AI-JP502E-A1-1010
AI@Edge fanless embedded AI system with NVIDIA® Jetson AGX Orin™
- NVIDIA® Jetson AGX Orin™
- 32GB LPDDR5
- Multiple storage options: 64GB eMMC / MicroSD slot / 2.5” SATA drive bay/ M.2 2280 M Key
- Supports M.2 E Key / M.2 B Key / M.2 M Key
- Supports GbE LAN x 2
Featuring the new NVIDIA® Jetson AGX Orin™, the fanless AAEON BOXER-8641AI PC takes Edge AI potential to new heights. Combining the advanced capabilities of the NVIDIA® Jetson AGX Orin™ with an exceptionally rugged chassis, the BOXER-8641AI enables embedded solutions that were previously impossible. Applications such as autonomous vehicles previously required dedicated graphics cards to operate effectively. However, with real-time object detection, accelerated data transmission and robust core capabilities, the BOXER-8641AI can move the entire operation to the Edge.
Up to 6 times the AI performance with NVIDIA® Jetson AGX Orin™
Combining an 8-core, 64-bit ARM v8.2 CPU with the NVIDIA Ampere architecture, the BOXER-8641AI harnesses the full potential of the NVIDIA® Jetson AGX Orin™, featuring 1792 CUDA® cores and 56 Tensor cores to deliver up to 200 TOPS and up to 6 times the AI performance of its predecessor. The processing speed and inference capabilities of the BOXER-8641AI move object detection directly from GPU cards to the Edge, simplifying the deployment of autonomous logistics vehicle applications.
Engineered for Extreme Conditions
A wide temperature range of -4°F to 131°F (-20°C to 55°C) demonstrates the suitability of the BOXER-8641AI for deployment in harsh conditions. In addition, its compact size and low weight provide greater operational flexibility, allowing it to run industrial AMR and autonomous mining vehicle applications in which object detection can deliver advanced logistics solutions for low-visibility industrial environments.
Smarter Interface Integration
To harness the advanced capabilities of the NVIDIA® Jetson AGX Orin™, the BOXER-8641AI is equipped with a comprehensive selection of features suited to a variety of vertical markets. With two GbE LAN ports, three USB 3.2 ports, 32GB of LPDDR5x system memory and M.2 slots supporting 5G, Wi-Fi and NVMe, the BOXER-8641AI ensures ultra-fast communication with peripheral hardware such as cameras and sensors, making it an ideal solution for smart retail.
Included
- BOXER-8641AI
- Wall-mount bracket x 2
- Screw Package x 1
| SYSTEM | |
| AI ACCELERATOR | NVIDIA® Jetson AGX Orin™ |
| CPU | 8-core ARM v8.2 64bit CPU, 2MB L2 + 4MB L3 |
| SYSTEM MEMORY | 32GB 256-Bit LPDDR5x 205GB/s |
| STORAGE DEVICE | 64GB eMMC 5.1 x 1 MicroSD slot x 1 SATA drive bay x 1 |
| DISPLAY INTERFACE | HDMI Type A for HDMI 2.0 x 1 |
| ETHERNET | RJ-45 for GbE LAN x 2 |
| I/O | USB Type A for USB 3.2 Gen 2 x 2 USB Type C for USB 3.2 Gen 2 x 1 USB Type A for USB 2.0 x 1 Micro USB x 1 for OS flashing Mic in and line out x1 Reset button x 1 Recovery button x 1 MicroSD card slot x 1 Antenna opening x 2 Power button x 1 DB-9 x 2 for RS-232/422/485 DB-9 x 1 for DIO x 8 |
| EXPANSION | M.2 E-Key 2230 (for Wi-Fi/BT) x 1 M.2 B-Key 3052 x 1 M.2 M-Key 2280 (NVMe) x 1 2.5” SATA drive bay SIM slot x 1 |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (NVIDIA Jetpack 5.0 and above) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 12V DC with lockable DC Jack |
| MECHANICAL | |
| MOUNTING | Wall-mount kit |
| DIMENSIONS | 7.09 " x 5.35 " x 2.41" (180.0 mm x 136 .0 mm x 61.1 mm) |
| GROSS WEIGHT | 7.8lb ( 3.55kg ) |
| NET WEIGHT | 5.5lb ( 2.5kg ) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 131°F (-20°C ~ 55°C with 0.5 m/s airflow) |
| STORAGE TEMPERATURE | -40°F ~ 158°F (-40°C ~ 70°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3.5Grm / 5~500Hz / operation — eMMC, MicroSD or SSD |
| ANTI-SHOCK | 50G peak acceleration (11 msec. duration, eMMC, microSD or SSD) |
| CERTIFICATION | CE / FCC Class B |
| 1255X00057 | 84W, lockable DC jack |
| 1702031802 | Power cord (US type) |
| 1702031803 | Power cord (European type) |
| 170203180E | Power cord (Japanese type) |
