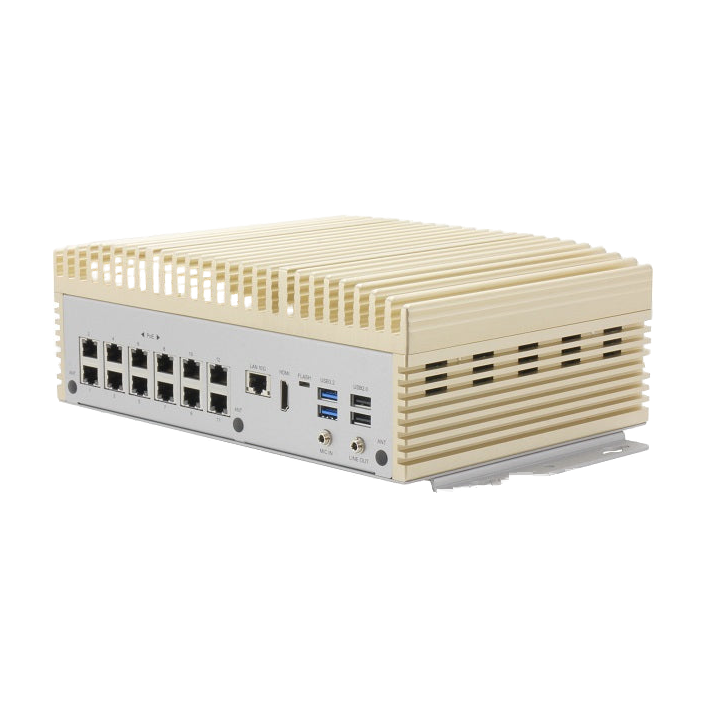

AAEON BOXER-8646AI (NVIDIA® Jetson AGX Orin, 12 PoE, 32GB LPDDR5)
Price excludes VAT
2,998.00€
Sale price
Price excludes VAT
2,998.00€
Regular price
Total with VAT (23%): 3,687.54€
Shipping calculated at checkout.
BOXER-8646AI-JP502E-A1-1010
AI@Edge fanless PoE embedded AI system with NVIDIA® Jetson AGX Orin™
- NVIDIA® Jetson AGX Orin™
- PoE/PSE GbE LAN x 12
- 10G LAN x 1 and Giga LAN x 1
- Multiple expansion options: M.2 E Key / M.2 B Key / M.2 M Key
- CANBus / COM / DIO
The BOXER-8646AI sets new standards and stands apart from previous models, delivering 10 times faster data transmission through 10G LAN and 6 times greater AI performance, with up to 200 TOPS through NVIDIA® Jetson AGX Orin™. As the only NVIDIA Jetson AGX Orin-powered system with 12 PoE ports and 10G LAN, the BOXER-8646AI increases the quality and quantity of connectors available for cross-market Edge AI solutions. With multiple expansion options and comprehensive I/O, the BOXER-8646AI expands, enhances, and diversifies what is possible in any application.
Included
BOXER-8646AI x 1
Wall-mount bracket x 2
Power connector x 1
Screw package x 1
| SYSTEM | |
| AI ACCELERATOR | NVIDIA® Jetson AGX Orin™ |
| CPU | 8-core ARM v8.2 64bit CPU, 2MB L2 + 4MB L3 |
| SYSTEM MEMORY | 32GB LPDDR5 |
| STORAGE DEVICE | 64GB eMMC 5.1 x 1 M.2 2280 NVMe M Key x 1 |
| DISPLAY INTERFACE | HDMI Type A x 1 for HDMI 2.0 |
| ETHERNET | RJ-45 x 12 for GbE PoE/PSE (802.3af/at, MAX.:120W) RJ-45 x 1 for 10G LAN RJ-45 x 1 for Giga LAN |
| I/O | USB Type A for USB 3.2 Gen 1 x 2 USB Type A for USB 2.0 x 2 Micro USB x 1 for OS flashing Mic-in x 1 Line-out x 1 DB-9 x 1 for CANbus FD x 2 DB-9 x 2 for RS-232/422/485 DB-9 x 1 for DIO x 8 3-pin terminal block x 1 for power input Power button x 1 Recovery button x 1 Antenna hole x 6 |
| EXPANSION | M.2 2230 E Key x 1 (Wifi/BT) M.2 3052 B Key x 1 (LTE) M.2 2280 NVMe M Key x 1 SIM slot x 1 |
| INDICATOR | Power LED x 1 |
| OS SUPPORT | Linux (NVIDIA Jetpack 5.0 or above) |
| POWER SUPPLY | |
| POWER REQUIREMENT | 3-pin terminal block x 1 for 19V~24V |
| MECHANICAL | |
| MOUNTING | Wall-mount kit |
| DIMENSIONS | 10.42 " x 7.24 " x 3.67" (264.76 mm x 184.00 mm x 93.30 mm) |
| GROSS WEIGHT | 12.13lb (5.5kg) |
| NET WEIGHT | 9.92lb (4.5kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 122°F (-20°C ~ 50°C with 0.5 m/s airflow) |
| STORAGE TEMPERATURE | -40°F ~ 158°F (-40°C ~ 70°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3.5Grm / 5~500Hz |
| ANTI-SHOCK | 50G peak acceleration |
| CERTIFICATION | CE / FCC class A |
Ordering Information [BOXER-8646AI]
| PART NUMBER | BOXER-8646AI-JP502E-A1-1010 |
|---|---|
| AI SOLUTION | Jetson AGX Orin |
| POE LAN | 12 (Max. 120W) |
| USB | 4 |
| RS-232/422/485 | 2 |
| CANBUS | 2 |
| LAN | 10G LAN x 1, Giga LAN x 1 |
| STORAGE | 64GB eMMC, M.2 2280 NVMe M Key |
| DISPLAY | HDMI x 1 |
| MOUNTING | Wall mount |
| POWER | 19V ~ 24VDC w/ 3 pin terminal block |
| OPERATING SYSTEM | Linux ( NVIDIA Jetpack 5.x and later ) |
| 1255903300 | 330W power adapter |
| 1702031802 | Power cord (US type |
| 1702031803 | Power cord (European type) |
| 170203180E | Power cord (Japanese type) |
